ADJ WMX1 MK2 Lighting Controller

The ADJ Lighting WMX1 Mk2 is a lighting control system designed with the performer in mind & powered by Wolfmix. Featuring Color, Move, & Beam FX modules, live edit function, & much more.

Item
ADJWMX1MK2

h m s

free-shipping-icon
In Stock!Order now!
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    Free Shipping - No Extra Charge!

    Our 4 state-of-the-art, strategically located warehouses are highly efficient and allow us to ship your gear in record time - and most orders will arrive at your door within 2 days for free. Shortly after you place your order, a Ship Confirmation email will arrive letting you know the order was picked, packed, and put on a truck. Full Details


    Shipping Map

    Free Extended WarrantyFree Extended Warranty

    12 Months EXTRA for Free!

    Many of our competitors charge 10% or more for an additional 12 months of warranty on the products they sell. AMS offers this exclusive benefit to our valued customers at no extra charge. Thousands of items on our site and in our catalog carry the "Gold Lock Extended Warranty" icon. It means you get the manufacturer's full warranty plus 12 additional months, FREE!!!

    45 Day Money Back Guarantee45 Day Money Back Guarantee

    Our 45 day return policy allows you to buy with confidence at AMS! If you are not completely satisfied with any item* purchased from AMS, return it to us within 45 days of the shipping date, and we will refund your money or help you with an exchange. That's always been our policy, and now we've added the ease of Electronic Return Labels!

    Canadian Shipping Information

    Welcome Canadian musicians! Buying your gear from AMS is as easy as going to a local music store, with more selection and more than competitive prices!

    Items with this logo are eligible to ship to Canada. Please note that you will be responsible for payment of brokerage fees, duties and other import taxes applicable to your order.

    NOTE: Free shipping offers do not apply to Canadian orders. Please be aware of custom fees - such as taxes and duties - when your order arrives. Since these fees vary from location to location, CUSTOMS FEES ARE NOT INCLUDED IN SHIPPING CHARGES. Please check with your local customs office for more information on the fees in your areas. Refusal to pay these fees will result in an undeliverable order. If returned, we do not refund shipping charges and may assess restocking fees to cover return shipping expenses.

    AMS AgentAMS Agent

    Have questions, found a better price?
    Talk to a sales specialist!

    800-319-9043

    The WMX1 Mk2, powered by Wolfmix, is a standalone lighting control system designed with the performer in mind. Featuring a 4.3” color touchscreen display and 37 backlit silicone buttons, it allows intuitive hands-on control of a DMX lighting setup. It features a toolbox of FX modules and eight independent fixture groups which allow for the simple creation of high-impact light shows on the fly without a computer. Ideal for mobile entertainers as well as bars, clubs, and entertainment venues, this compact but powerful controller puts creative lighting control at any user’s fingertips.



    WMX1 MK2 upgrades include larger encoder caps, MIDI triggering, and an added USB-A socket for MIDI controller or memory stick.



    ADJ WMX1 MK2 Lighting Controller Features:

    • Calibrate and RGB, White, Amber, UV mixing with automatic fixed color wheel translation
    • Automatic matching of similar gobos across different fixture types
    • Timed release of flash and preset buttons
    • Fixture FLIP function, for reversing beam order
    • Fixture SPLIT function, for splitting up multi-FX bars
    • Lock full controller, or lock editing with a password
    • Project & fixture backup with WTOOLS app
    • Offline 3D visualization with Easy View & WTOOLS over USB*
    • Auto-recovery of active project (no manual saving needed)
    • Import different fixture setups into the same project
    • Starts in under 2 seconds. Starts sending DMX in under 1 second
    • Factory firmware startup recovery mode for times of crisis



    Offering a unique new hands-on interface for creative lighting control, the ADJ WMX1 Mk2 is a powerful and compact standalone DMX controller. Designed for creating high-impact lightshows on the fly without a computer, it features an intuitive workflow, powerful internal FX engine, and tactile controls that make it easy for anyone to take control of a DMX lighting rig comprised of multiple fixture types. WMX1 MK2 upgrades include larger encoder caps, MIDI triggering, and an added USB-A socket for MIDI controller or memory stick.



    Setup of the WMX1 Mk2 is quick and straightforward, with a menu interface on the 4.3” capacitive touch TFT screen allowing easy selection, addressing, and grouping of fixtures. 3,500+ fixture profiles are included on the controller itself, with more than 15,000 accessible through the supporting WTOOLS app. The WMX1 Mk2 also features a Fixture Builder, for creating custom profiles or for use with old or obscure fixtures, as well as a Fixture Calibration tool, which allows limiting of the area covered by moving heads.

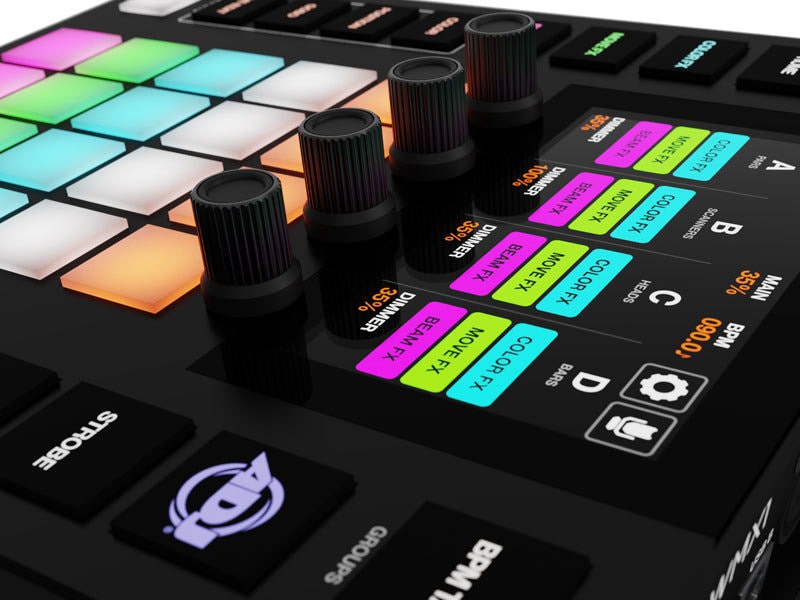

    Once configured, the system allows independent control of up to eight groups of fixtures (four accessible via a Shift key), with 37 backlit silicone buttons and four rotary encoders allowing three different FX engines (Color, Move and Beam) to be easily triggered and customized independently for each group. The controller also features separate dedicated buttons for Strobe, Blinder, Speed, Blackout and Smoke.

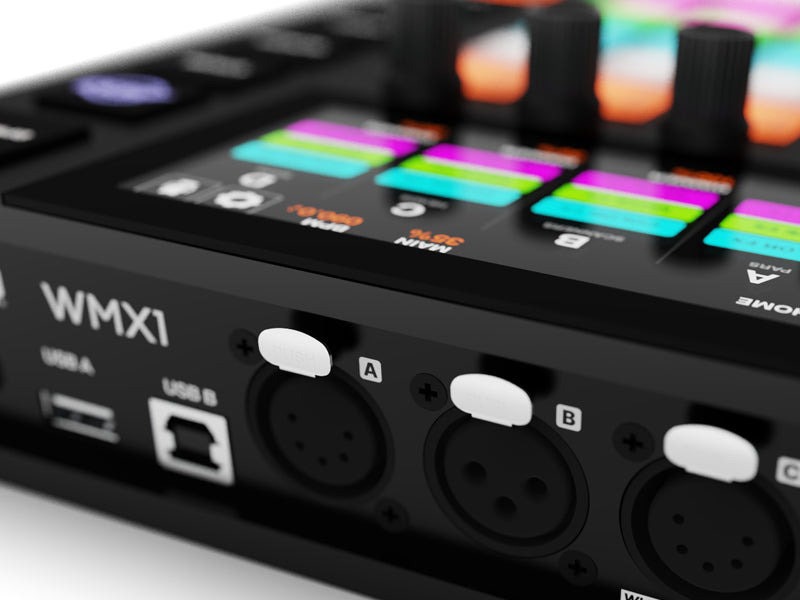

    The WMX1 Mk2 features four DMX universes and four output sockets (two 5-pin and two 3-pin) with the ability to map any universe to any output, allowing the unit to also serve as a DMX splitter. Out of the box the system supports a single DMX universe (output via all four sockets), while three additional universes are available as upgrades through the WTOOLS app. It also features both an internal microphone and 3.5mm jack line input socket for automated BPM detection, as well as a button that allows the BPM to be ‘tapped in’ manually.



    A Color Picker interface on the screen, which allows easy selection of just the right hue, can be used both for RGBW and RGBWA+UV LED fixtures. Other useful features include automatic matching of similar GOBOs across different fixture types, Fixture FLIP function (for reversing beam order), Fixture SPLIT function (for splitting up multi-FX bars) and Auto-recovery of the active project (no manual saving needed).



    Despite its low weight (2.36lb / 1070g) and compact dimensions (7.68” x 8.66” x 2.44” / 195 x 220 x 62mm [LxWxH]), the WMX1 is extremely robust. Inside its tough ABS plastic shell, the unit features a powder-coated steel base plate and reinforced back plate. Its 220Mhz CPU with ARM core and 8MB RAM / 16MB flash memory allow for extremely complex effects to be layered and run independently across multiple groups all in real time.



    The WMX1 Mk2, powered by Wolfmix, has received two 2022 innovation awards from PLASA and Pro Mobile Magazine.



    Palettes & FX:

    • Color FX module with 8 effect types & 16 definable colors
    • Move FX module with 8 effect types
    • Beam FX module with 8 effect types
    • 6 Flash buttons for controlling Special FX, Strobe, Blinder, Speed, Blackout & Smoke
    • Static color palette with 10 user definable colors per group & gradient control
    • Static position palette with 5 user definable positions per group with fade & fanning
    • Gobo palette with 5 user definable gobos per group
    • 20 namable live edit buttons with flash triggering mode and ‘Park’ function
    • 100 namable presets for storing snapshots with hold and fade timings - Preset playback cue list- all presets or per page of 20 presets



    Control & Sync:

    • Group and master dimming with encoder acceleration
    • Group FLASH, FULL and Blackout
    • 16 bit Pan/Tilt control
    • Multi-beam LED bar control
    • FX music pulse sync from Microphone or Line-In
    • FX BPM sync with Ableton Link, OS2L or BPM TAP
    • Effect Speed, Phase, Order, Size, Fade, Fan & Flick
    • Live control of move FX registration point
    • Global FX speed and freeze control - Map DMX IN with group dimmer and patch to output channels*
    • WLINK - sync with another Wolfmix controller



    Built-in tools:

    • Fixture Builder
    • Fixture calibration tool, to limit the area of moving fixtures
    • X-Y touch controlled positioning grid
    • RGBW touch controlled color picker - 8-step real time sequencer for creating beam and move FX
    • Live view of DMX levels with default value override and DMX channel tester
    • Beam Editor to override Min and Max values used in generated FX



    Setup:

    • Standalone (no computer needed)
    • Compatible with any DMX device
    • Standard unit comes with 2 DMX universe but up to 2 additional universes are available as add-ons, which are sold via the WTOOLS app.
    • Up to 680 fixtures & beams
    • Up to 50 fixture types - Up to 5000 fixture features (color/gobo etc...)
    • 8 fixture groups - 6 projects - 15000+ available fixtures (3500+ on the controller)
    • DMX address, fixture order & group setup
    • Use as a DMX splitter with DMX universe mapping *some features require an add-on purchase available through the WTOOLS app

    CALIFORNIA PROPOSITION 65 WARNING

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Shop Similar Models

    ADJ WMX1 MK2 Lighting Controller Specifications

    ADJ WMX1 MK2 Lighting Controller Specifications
    Product Specifications

    ADJ WMX1 MK2 Lighting Controller Specifications:

    • Display: 4.3” Color TFT with tinted glass - Capacitive touch
    • Encoders: Full body alloy - Incremental push with acceleration
    • Button pads: 37 Silicone buttons with matt oil finishing - LED color backlit
    • Processing: 220Mhz CPU with ARM core - 8MB RAM - 16MB Flash
    • Audio: Sync FX with the music - Analog audio peak detection circuit - Built in microphone with auto-gain - 3.5mm jack socket
    • DMX: 2x 3pin DMX OUT XLR connectors - 1x 5pin DMX OUT XLR connector - 1x 5pin DMX IN/OUT XLR connector with WLINK
    • USB: USB B powered - USB A port for MIDI over USB and project loading & back-up - Sync with Ableton Link & OS2L via a computer - Link with MIDI faders and sync with MIDI clock - Backup projects and fixtures to a memory stick
    • Housing: ABS Plastic - Powder-coated steel base plate with 100mm VESA (M4 6mm max) - Powder-coated steel reinforced back plate
    • Dimensions: 195 x 220 x 62 mm (7.68 x 8.66 x 2.44 in)
    • Weight: 1070g / 2.36lb
