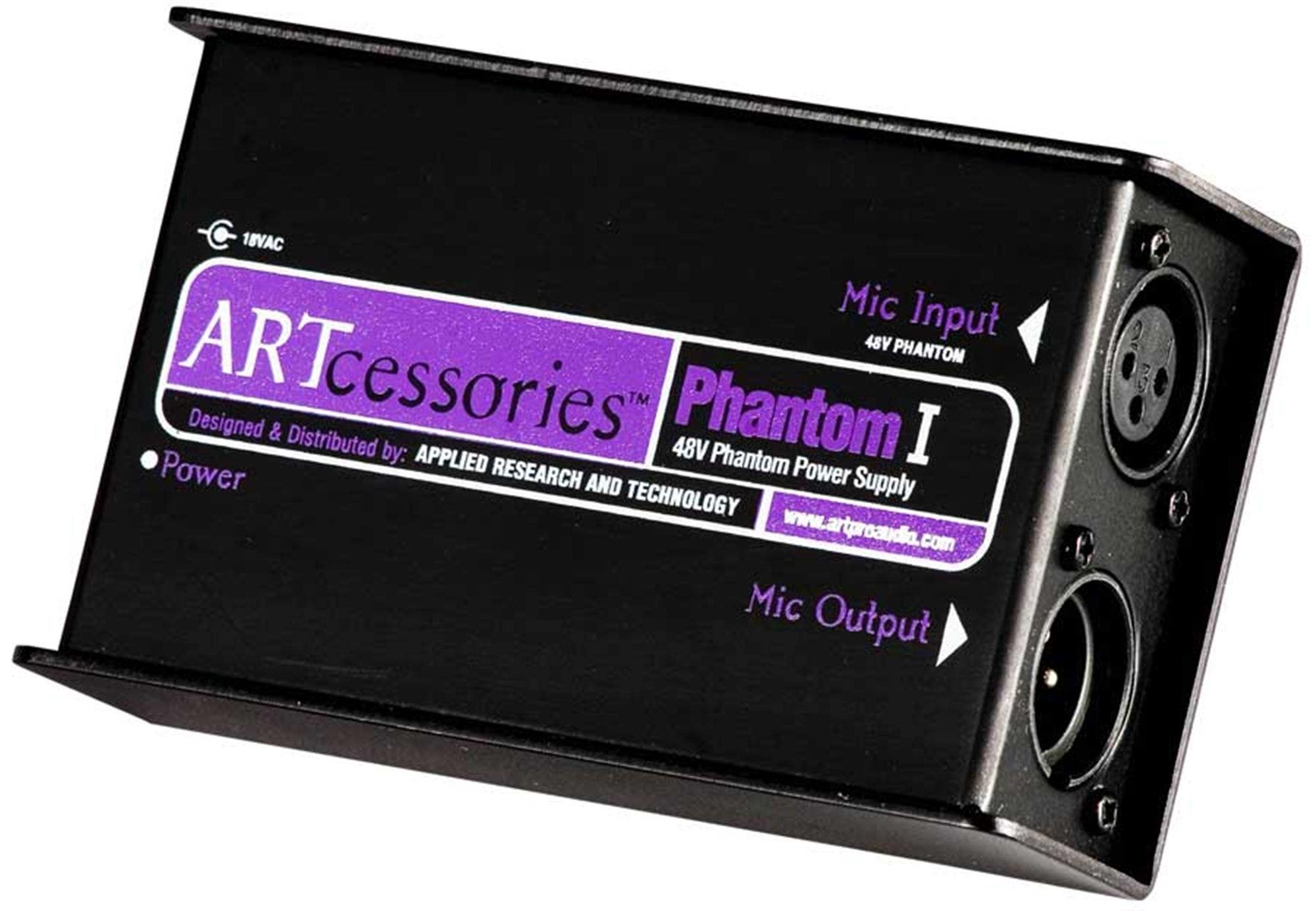

ART Phantom1 48V Phantom Power Supply For Condenser Microphones

OR
Out of stock

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    2 Day Shipping Icon

    Fast & Free Shipping

    Did you know AMS is the only music distributor with four distribution centers? And that means we can offer super-fast shipping on all your music products. Whether you don’t want the spark of inspiration to fade or you really need that replacement speaker before the next show, we have you covered anywhere in the U.S. And even better, it’s FREE!

    Free Extended Warranty

    Free 12 Month Extended Warranty

    You shouldn’t have to pay extra for a little peace of mind. When you purchase from AMS, you’ll get a free 12-month extended warranty to cover your purchase — and that’s in addition to any manufacturer’s warranties! Thousands of items in our catalog feature the “Gold Lock Extended Warranty,” so you can feel confident in your purchase.

    45 Day return icon

    45 Day return

    Sometimes the gear on the computer screen seems like a better fit than when you actually get your hands on it. We understand, and that’s why AMS offers an industry-leading 45-day money-back guarantee. If you’re not happy with an item, you have a full month and a half to send it back! We don’t want to just sell you gear. We want to sell you the RIGHT gear — even if it takes a few tries.

    AMS Agent

    Have questions?

    Talk to a sales specialist!

    800-319-9043

    Different condenser microphones specify different amounts of required phantom power. As a rule, these ratings can range from 48 volts all the way down to 9 volts. Fortunately, there is some flexibility in terms of matching phantom voltage to your mic. A rough rule of thumb would be more is better.

    For example, a 24-volt condenser mic will run perfectly on 48 volts. In fact, mics rated at as little as 9 volts can often operate on 48 volts, but you should check with the manufacturer first. Conversely, a mic will generally perform best driven by not less than its rated voltage so, for a 48V mic, you would obtain best results with 48 volts of phantom power. The Phantom I is a great choice.

    Shop Similar Models

    ART Phantom1 48V Phantom Power Supply For Condenser Microphones Specifications

    ART Phantom1 48V Phantom Power Supply For Condenser Microphones Specifications
    Product Specifications

    ART Phantom 1 Specifications

    • Input Connector: XLR female
    • Output Connector: XLR Male
    • Frequency Response: 10 Hz to 25 kHz
    • Output Noise: -115 dBv
    • Current Drain: 14 mA
    • Power: 18V DC (adapter included)
    • Dimensions: 5.25 x 2.75 x 1.75 inches
    • Weight: 1.3 lbs.
