Don’t sell your soul to a creditor to get the gear you need. At AMS, we want to lower the barriers to create. That’s why we offer in-house 0% financing, and you don’t even have to open a new line of credit! Spread out payments on your credit card to simplify financing and avoid hefty late fees or service charges. Cost shouldn’t interfere with your creativity.
Earn rewards every time you shop at AMS. You'll collect points on eligible purchases that turn into promotional savings on future gear, with points typically available several days after your order ships. All you need is a free AMS account — no credit card, financing, or payment plan required.
The more you shop, the more you earn. Create a free account and start earning from your very first eligible purchase. Rewards are applied as a discount on future eligible purchases.
Earn points on eligible purchases with AMS Rewards and turn them into savings on future orders, no credit card required. You can apply points at checkout once they’re available.
Eligible to earn $22.80 for this purchase
OR
8 Payments of $57.00
6 Payments of $76.00 No Credit Check
Compare
Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!
Opt in for Notifications on this product for the price drops, stock changes and promotions

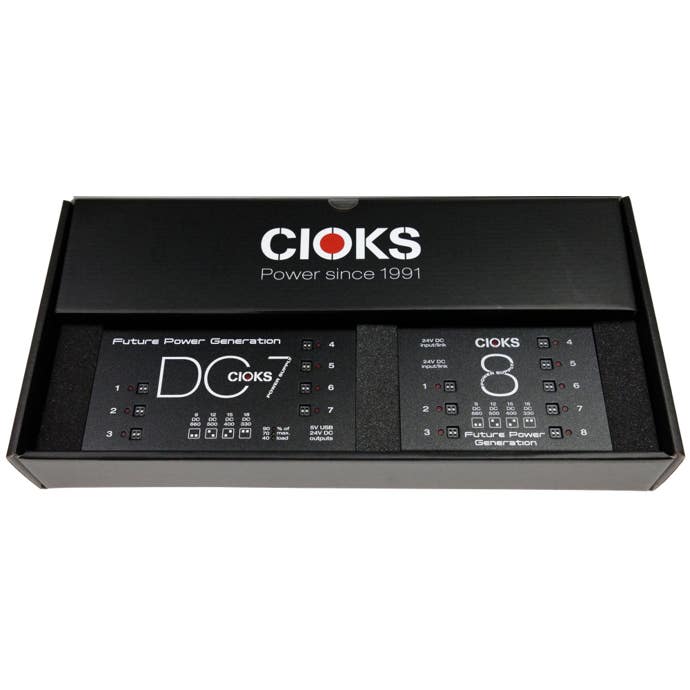

The ultimate in flexible and reliable power supply when building your pedalboard - the powerful CIOKS DC7 and the CIOKS 8 Expander! With this combo you get fifteen isolated outlets in total with four switchable voltages on each outlet and a USB outlet for your smartphone or tablet via DC7.
In order to make the options for where to place the DC7 and the CIOKS 8 on your board as flexible as possible, the Superpower Bundle includes two DC Link cables in different lengths so you can connect and mount both units on the same board or place the DC7 on one board and the CIOKS 8 Expander on a separate board if you use two.
To make the CIOKS Superpower Bundle as future-proof as possible you can expand the number of available outlets for your pedals by purchasing a CIOKS 4 Expander Kit or a separate CIOKS 8 Expander and connecting it to the 24V DC link outlet on the included CIOKS 8.
Both DC7 and CIOKS 8 are compatible with CIOKS GRIP which allows for super easy drill-free mounting underneath Pedaltrain boards.
Cioks DC7 and DC8 Expander Super Power Bundle Features
Both DC7 and CIOKS 8 Expander has a groundbreaking 1-inch profile (25,4mm)
Ultra-low noise achieved by multistage filtering
7 isolated DC-outlets 6W each on CIOKS DC7
8 isolated DC-outlets, 6W each on CIOKS 8 Expander
660mA at 9V DC on each outlet on both CIOKS DC7 and CIOKS 8
4 selectable voltages on each outlet on both CIOKS DC7 and CIOKS 8
5V USB-Output for max. 1 A
24V DC auxiliary outlet with max. 2A
Three LED power meter showing the total load of both power supplies
Can be expanded upon by adding a separate CIOKS 4 Expander Kit or CIOKS 8 Expander
Total maximum output power from the 15 DC outlets is 42W
Mounting hardware for Pedaltrain and Templeaudio boards included
Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards
Cioks DC7 and DC8 Expander Super Power Bundle Specifications
Item #:
CIO SPB
Manufacturer Part Number:
CIO-SPB
UPC:
669014298034
Product Specifications
Cioks DC7 and DC8 Expander Super Power Bundle Specifications
Power:
Outlet 1-7 on DC7 and 1-8 on CIOKS 8, total of 15 outlets: 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA each
5V USB / 1A on CIOKS DC7
24V DC link on CIOKS 8
What’s In The Box?:
CIOKS DC7 and CIOKS 8 Expander power supplies
Mains power cord
24 Flex cables & 2 DC Link cables
Mounting hardware (4 screws and a hex-key)
2x manual
2x product sheet (drill guide)
Flex guide
Flex Cables Included:
Standard Flex Type 1: Black with 5,5/2,1mm centre negative DC plug (x14)
Standard Flex Type 2: Red with 5,5/2,1mm centre positive DC plug (x2)
Standard Flex Type 4: Green with 5,5/2,5mm centre positive DC plug (x2)
Standard Flex Type 5: Black with tip positive 3,5mm Jack plug (x2)
Split Flex Type 1: Black with two 5,5/2,1mm centre negative DC plugs (x2)
3-Way Daisy Chain Flex Type 1: Black with three 5,5/2,1mm centre negative DC plugs (x2)
DC Link Cables Included: To connect the CIOKS 8 to the 24V DC aux outlet on CIOKS DC7:
1x L2415 – black with EJAI plug at each end, 15cm / 6”
1x L2480 – black with EJAI plug at each end, 80cm / 31”
Product Dimensions (Without Rubber Feet) :
CIOKS DC7: 160 x 88 x 25,4mm (6.3 x 3.5 x 1.0”)
CIOKS 8 Expander: 120 x 88 x 25,4mm (4.7 x 3.5 x 1.0")
Product Weight:
CIOKS DC7: 500g (1.1lb)
CIOKS 8 Expander: 340g (0.75lb)
Cioks DC7 and DC8 Expander Super Power Bundle Specifications
Product Specifications
Cioks DC7 and DC8 Expander Super Power Bundle Specifications
Power:
Outlet 1-7 on DC7 and 1-8 on CIOKS 8, total of 15 outlets: 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA each
5V USB / 1A on CIOKS DC7
24V DC link on CIOKS 8
What’s In The Box?:
CIOKS DC7 and CIOKS 8 Expander power supplies
Mains power cord
24 Flex cables & 2 DC Link cables
Mounting hardware (4 screws and a hex-key)
2x manual
2x product sheet (drill guide)
Flex guide
Flex Cables Included:
Standard Flex Type 1: Black with 5,5/2,1mm centre negative DC plug (x14)
Standard Flex Type 2: Red with 5,5/2,1mm centre positive DC plug (x2)
Standard Flex Type 4: Green with 5,5/2,5mm centre positive DC plug (x2)
Standard Flex Type 5: Black with tip positive 3,5mm Jack plug (x2)
Split Flex Type 1: Black with two 5,5/2,1mm centre negative DC plugs (x2)
3-Way Daisy Chain Flex Type 1: Black with three 5,5/2,1mm centre negative DC plugs (x2)
DC Link Cables Included: To connect the CIOKS 8 to the 24V DC aux outlet on CIOKS DC7:
1x L2415 – black with EJAI plug at each end, 15cm / 6”
1x L2480 – black with EJAI plug at each end, 80cm / 31”
Product Dimensions (Without Rubber Feet) :
CIOKS DC7: 160 x 88 x 25,4mm (6.3 x 3.5 x 1.0”)
CIOKS 8 Expander: 120 x 88 x 25,4mm (4.7 x 3.5 x 1.0")
Product Weight:
CIOKS DC7: 500g (1.1lb)
CIOKS 8 Expander: 340g (0.75lb)
Customer Reviews
5
Based on 2 reviews
5
2
4
0
3
0
2
0
1
0
Search reviews
Rating
All ratings
Dave W. 🇺🇸
Verified Buyer
Cioks Rocks Pedal Power
Made a new bass pedal board for the new year and needed a good source of power for a dozen or so pedals. Considered Cioks and Strymon as they're two of the best power supply systems. Glad I went with the Cioks as it easily tucks underneath my PedalTrain board and provides clean, consistent power for...
Published date
04/25/23
Was this review helpful?
0
0
Israel G. 🇺🇸
Verified Buyer
Fitted perfectly under my vertex
Fitted perfectly under my vertex travel lite board
And was able to power all 15 pedals
