Some speakers show up to a gig and do a job. The RCF HDL 20-A shows up, takes over, and makes everyone else look like they brought a Bluetooth speaker to a stadium. Built for professionals who refuse to compromise on audio quality, this compact line array system delivers the kind of full-range, high-definition sound that makes crowds stop mid-conversation and just... listen.
Fast to deploy, hard to rattle, and driven by serious processing power, the HDL 20-A is the workhorse that touring engineers and installed sound specialists keep reaching for.

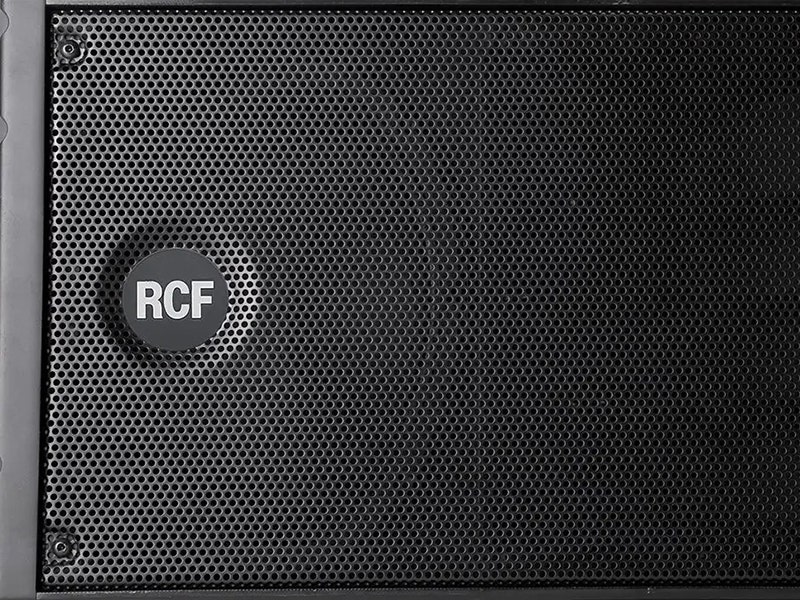

Acoustic Design That Doesn't Mess Around
The HDL 20-A was engineered from the ground up to perform in real-world conditions — not just inside an acoustically treated lab. Every element of its design, from the composite cabinet to the custom transducers, was chosen with one goal in mind: sound that hits exactly where it's supposed to, every single time. No compromises, no shortcuts, no excuses.
Composite Cabinet Construction: A unique composite enclosure keeps weight down without sacrificing rigidity, giving the HDL 20-A a rugged, road-ready body that can handle the grind of touring and installation alike.
State-of-the-Art RCF Transducers: Dual 10-inch woofers handle the low end with authority, while a large-format 3-inch voice coil compression driver delivers vocal clarity and high-frequency definition that cuts through even the most chaotic of mixes.
Cluster and HF Projection Correction: Onboard processing keeps high-frequency projection consistent and controlled across the array, so your coverage stays predictable whether you're running two boxes or twenty.

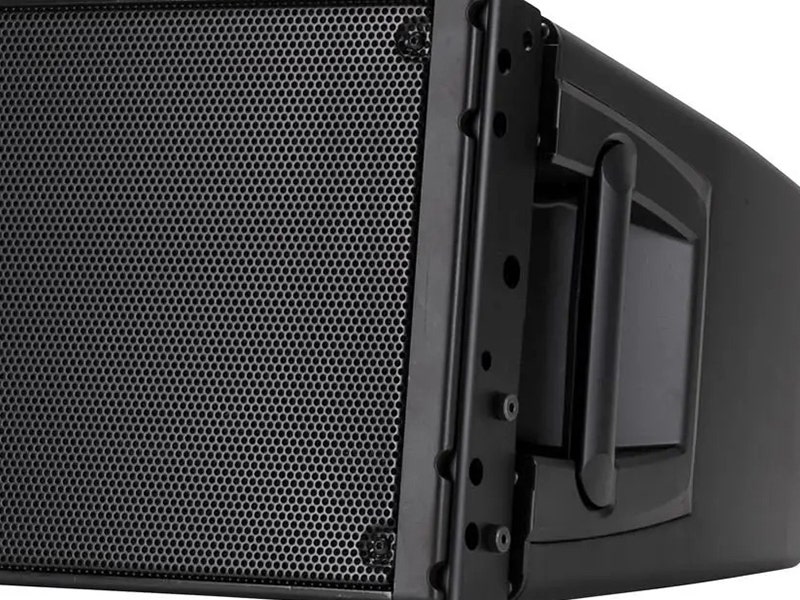

1400 Watts of Two-Way Digital Muscle
Raw power is only useful when it's managed well — and the HDL 20-A has both in abundance. A 1400-watt peak power two-way digital amplifier sits at its core, paired with a DSP engine that keeps everything clean, controlled, and dialed in. This isn't the kind of system that distorts when the kick drum hits hard; it just shrugs and asks for more.
1400W Peak Digital Amplifier: The onboard two-way digital amp delivers ample headroom for high-SPL applications, ensuring the system stays composed and distortion-free even when pushed to the limit.
Powerful DSP Processing: The integrated DSP handles all the heavy lifting — EQ, limiting, alignment, and time correction — so the system sounds great right out of the box and even better once you tweak it to taste.
Special Presets for Indoor and High-Curving Situations: Dedicated presets for indoor venues and steep array configurations make setup faster and smarter, letting you spend less time fiddling and more time soundchecking.

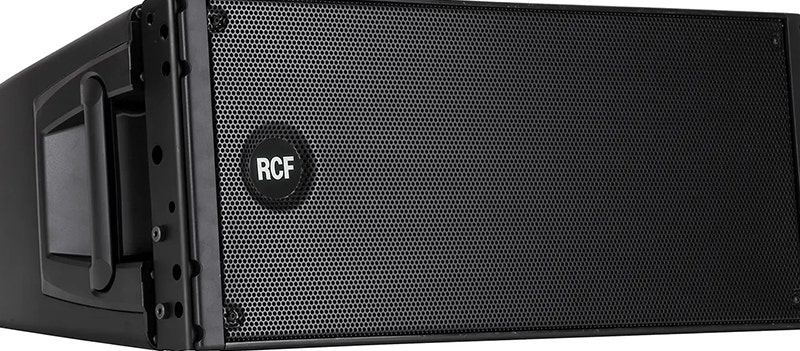

Fast Setup, Flyable Design
The HDL 20-A was built for professionals who move fast. Whether you're hanging it from a truss in a concert hall or stacking it for a corporate event, the system is designed to get in the air — or on the ground — without turning your setup into a cardio workout. The HDL 18-AS flyable subwoofer integrates seamlessly as a bass complement, making the HDL 20-A the anchor of a fully scalable, fly-anything system.
Line Array Performance in a Compact Package: The HDL 20-A delivers true line array directivity and coverage control in a cabinet that won't require a forklift to handle, making it ideal for venues where space and time are tight.
Fast and Easy Rigging: Designed for quick deployment, the HDL 20-A integrates into standard rigging setups without drama, getting your system flying safely and efficiently.
Scalable System Design: Pair multiple HDL 20-A units with the HDL 18-AS subwoofer for a complete flyable solution that scales cleanly from small club shows to large-scale events.

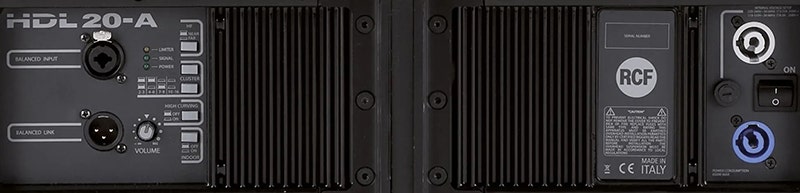

The RCF HDL 20-A: Built for the Professionals Who've Heard It All
The RCF HDL 20-A line array speaker isn't trying to impress you on a spec sheet — it's trying to impress the 5,000 people standing in front of it on a Friday night. With its no-compromise transducers, intelligent DSP processing, and a composite cabinet that's been designed to survive the real world, it's the kind of system that earns its place in your rider and stays there. For live sound reinforcement or installed applications where quality, reliability, and speed of deployment actually matter, the HDL 20-A delivers.
RCF HDL 20-A Features:
Compact line array speaker powered by a 1400W peak two-way digital amplifier
Dual 10-inch RCF woofers for powerful, accurate low-frequency reproduction
Large-format 3-inch voice coil compression driver for high-definition vocal clarity
Integrated DSP with cluster and HF projection correction
Special presets for indoor and high-curving array configurations
Unique composite cabinet construction for durability and low weight
Compatible with the HDL 18-AS flyable subwoofer for full-range system integration
Designed for fast, easy setup in both touring and installed environments
Ideal for live sound reinforcement and permanent installation applications
RCF HDL 20-A 2x10" 1400 Watt Active 2-Way Line Array Speaker Specifications
Item #:
RCF HDL20A
Manufacturer Part Number:
HDL20-A
UPC:
8024530009977
Product Specifications
RCF HDL 20-A 2x10" Array Speaker Specifications
Frequency Response: 55 Hz - 20000 Hz
Max SPL @ 1M: 135 dB
Horizontal Coverage Angle: 100°
Vertical Coverage Angle: 15°
Compression Driver: 1x 2.0'', 3.0'' v.c
Woofer: 2x 10'', 2.5'' v.c
Input Signal: bal/unbal
Input Connectors: XLR
Output Connectors: XLR
Input Sensitivity: -2 dBu/+4 dBu
Crossover Frequencies: 800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Cluster, HF, High curving, Indoor
Total Power: 1400W Peak, 700W RMS
High Frequencies: 400W Peak, 200W RMS
Low Frequencies: 1000W Peak, 500W RMS
Cooling: Convection
Connections: Powercon IN/OUT
CE Marking: Yes
Cabinet/Case Material: PP Composite
Hardware: Rigging flyware
Handles: 2 side, 2 back
Grill: Steel
Color: Black
Dimensions (H x W x D): 11.57" x 27.76" x 17.52" / 294 x 705 x 445 mm
Weight: 30.2 kg / 66.58 lbs
RCF HDL 20-A 2x10" 1400 Watt Active 2-Way Line Array Speaker Specifications
Product Specifications
RCF HDL 20-A 2x10" Array Speaker Specifications
Frequency Response: 55 Hz - 20000 Hz
Max SPL @ 1M: 135 dB
Horizontal Coverage Angle: 100°
Vertical Coverage Angle: 15°
Compression Driver: 1x 2.0'', 3.0'' v.c
Woofer: 2x 10'', 2.5'' v.c
Input Signal: bal/unbal
Input Connectors: XLR
Output Connectors: XLR
Input Sensitivity: -2 dBu/+4 dBu
Crossover Frequencies: 800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Cluster, HF, High curving, Indoor
Total Power: 1400W Peak, 700W RMS
High Frequencies: 400W Peak, 200W RMS
Low Frequencies: 1000W Peak, 500W RMS
Cooling: Convection
Connections: Powercon IN/OUT
CE Marking: Yes
Cabinet/Case Material: PP Composite
Hardware: Rigging flyware
Handles: 2 side, 2 back
Grill: Steel
Color: Black
Dimensions (H x W x D): 11.57" x 27.76" x 17.52" / 294 x 705 x 445 mm
Weight: 30.2 kg / 66.58 lbs
