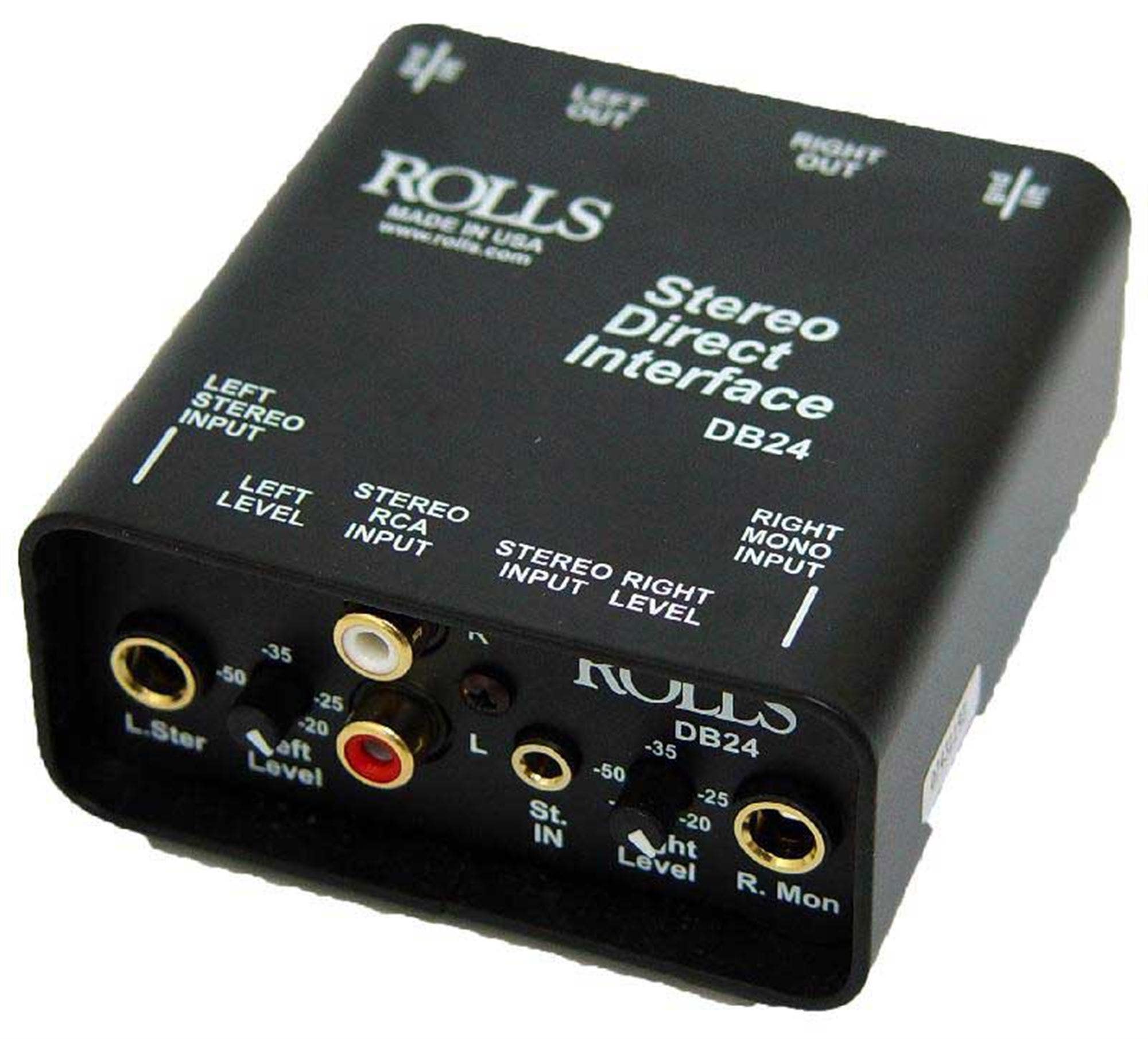

    The Rolls DB24 Stereo Passive Direct Box is a two channel isolation device designed to connect high impedance devices to low impedance.
    The unit is completely passive, and utilizes Rolls proprietary audio transformers for superior sound. A heavy duty steel chassis was chosen to provide maximum reliability when used in demanding live sound reinforcement applications. A variety of inputs are provided including stereo and mono 1/4 inch, stereo RCA, and stereo 1/8 inch (3.5mm).

    The DB24 is an ideal impedance matching device for connecting any unbalanced stereo signal to a balanced system. Consumer audio equipment such as CD players, DVD players, MP3 players, etc., may be easily connected to a professional audio system.

    Features
    • Stereo RCA, 1/8 inch (3.5mm), and dual 1/4 inch Inputs
    • Balanced XLR Outputs
    • Ground Lift for each channel
    • Individual variable attenuators
    Shop Similar Models

    Rolls DB24 Stereo Passive Direct Box Specifications

    Rolls DB24 Stereo Passive Direct Box Specifications
    Product SpecificationsRolls DB24 Stereo Passive Direct Box Specifications
    • Input Impedance: 20k - 600 Ohms
    • Frequency Response: 50 - 15kHz +/- 3 dB
    • Output Impedance: 600 Ohms
    • Max Output Level: +4 dBm
    • Connectors:
      • XLR (L/R)
      • RCA (L/R)
      • 1/4 inch TRS (L/R)
      • 1/8 inch (3.5mm) TRS
    • Controls:
      • 2 Variable attenuators
      • 2 Ground Lift switches
    • Dimensions (W x H x D): 3.42 x 1.45 x 3.325 inches (8.69 x 3.68 x 8.45 cm)
    • Weight: 1.5 pounds (0.68 kg)
