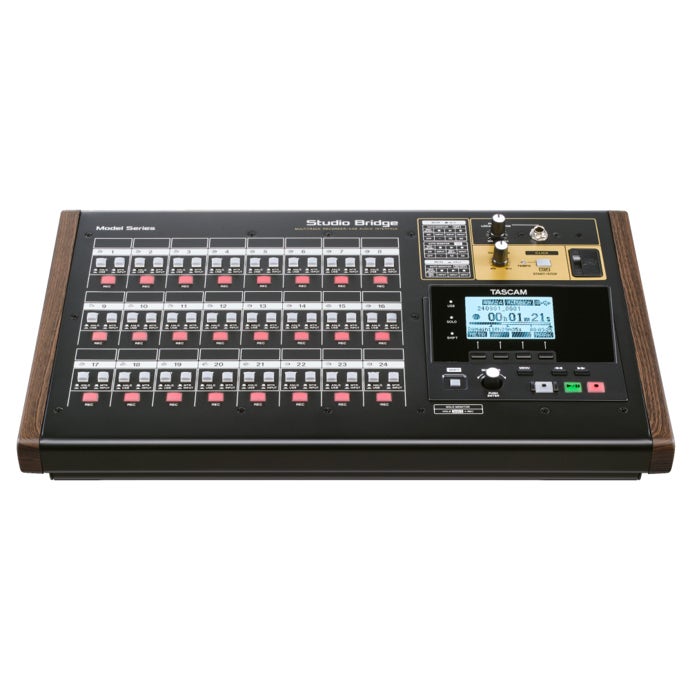

TASCAM Model Series Studio Bridge 24 Track Recorder

The Tascam Studio Bridge is literally the bridge between analog mixers & digital recording devices. Mix & record 24 tracks of lush analog tone to a DAW or the on-board multitrack recorder.

OR

h m s

free-shipping-icon
In Stock!
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    2 Day Shipping Icon

    Fast & Free Shipping

    Did you know AMS is the only music distributor with four distribution centers? And that means we can offer super-fast shipping on all your music products. Whether you don’t want the spark of inspiration to fade or you really need that replacement speaker before the next show, we have you covered anywhere in the U.S. And even better, it’s FREE!

    Free Extended Warranty

    Free 12 Month Extended Warranty

    You shouldn’t have to pay extra for a little peace of mind. When you purchase from AMS, you’ll get a free 12-month extended warranty to cover your purchase — and that’s in addition to any manufacturer’s warranties! Thousands of items in our catalog feature the “Gold Lock Extended Warranty,” so you can feel confident in your purchase.

    45 Day return icon

    45 Day return

    Sometimes the gear on the computer screen seems like a better fit than when you actually get your hands on it. We understand, and that’s why AMS offers an industry-leading 45-day money-back guarantee. If you’re not happy with an item, you have a full month and a half to send it back! We don’t want to just sell you gear. We want to sell you the RIGHT gear — even if it takes a few tries.

    Rock Now Pay Later

    0% Interest Payment Plan

    Don’t sell your soul to a creditor to get the gear you need. At AMS, we want to lower the barriers to create. That’s why we offer in-house 0% financing, and you don’t even have to open a new line of credit! Spread out payments on your credit card to simplify financing and avoid hefty late fees or service charges. Cost shouldn’t interfere with your creativity.

    Minor Blemished Product

    Minor Blemished Products are items that have been returned in excellent condition with very minor cosmetic blemishes, allowing you to get great gear at a discounted price. In fact, many times our customers have difficulty finding the minor blemishes at all! These products are 100% inspected and tested to guarantee functionality. They include all components, manuals and the full Manufacturer's warranty unless otherwise stated, along with the AMS 45-Day Money-Back Guarantee to ensure your satisfaction. Special offers, promotions and rebates may not apply. The following manufacturers do not offer a warranty on Minor Blemished products: Casio, Ampeg, Avalon, Chauvet, Electro-Voice, Epiphone, Gibson, Ibanez, Kramer, Mackie, Maestro, Mesa, Peavey, PreSonus, Steinberger, Tobias

    AMS Agent

    Have questions?
    Talk to a sales specialist!

    800-319-9043

    The Model Series Studio Bridge is quite literally the bridge between analog mixers and digital recording devices whether you use a DAW or prefer a DAWless setup. Preserve the lush analog tone from your mixing console while tracking and mixing to your DAW of choice or to the Studio Bridge's on-board multitrack recorder. Tracks recorded to the on-board recorder or your DAW can be returned to your analog console for mix summing, turning digital recordings into warm analog productions. Whether tracking at a personal recording studio or a live environment, the Studio Bridge handles all your needs with ease. The Model Series Studio Bridge is quite literally the bridge between analog mixers and digital recording devices whether you use a DAW or prefer a DAWless setup. Preserve the lush analog tone from your mixing console while tracking and mixing to your DAW of choice or to the Studio Bridge's on-board multitrack recorder. Tracks recorded to the on-board recorder or your DAW can be returned to your analog console for mix summing, turning digital recordings into warm analog productions. Whether tracking at a personal recording studio or a live environment, the Studio Bridge handles all your needs with ease.



    TASCAM Model Series Studio Bridge 24 Track Recorder Features

    • 24-track multitrack recorder using SDXC SD card (punch-in/out supported)
    • 24-IN/24-OUT USB audio interface
    • 24 DB25 analog line level input and output
    • DAW transport control and REC READY control via HUI/MCU
    • Dedicated Settings Panel application with Meter Bridge
    • MIDI in/out allows USB MIDI interface and MIDI sync, 1/4" audio click output with tempo control



    What's in the box

    • Studio Bridge × 1
    • Power cord × 1
    • Safety guide (including warranty) × 1
    • TASCAM ID registration guide × 1
    Shop Similar Models

    TASCAM Model Series Studio Bridge 24 Track Recorder Specifications

    TASCAM Model Series Studio Bridge 24 Track Recorder Specifications
    Product Specifications

    TASCAM Model Series Studio Bridge 24 Track Recorder Specifications

    • Recorder Specs
      • Supported media: SD (512 MB to 2 GB), SDHC (4 GB to 32 GB), SDXC (64 GB to 512 GB)
      • Recording format: WAV (BWF)
      • Playback format: WAV (BWF)
      • Sampling rate: 44.1/48 kHz
      • Quantization bit depth: 16-bit / 24-bit
      • Maximum number of recording tracks: 24
      • Maximum number of input and output channels: Inputs: 24 / Outputs: 24
    • Analog audio input/output ratings
    • Line input connectors (1–8, 9–16, 17–24):
      • Connector: 25-pin balanced D-sub
      • Fixed screws: No. 4-40 UNC (inch type)
      • Maximum input level: +24 dBu
      • Nominal input level: +4 dBu
      • Input impedance: 10 kΩ or more
        • Pin assignments same for 1–8, 9–16 and 17–24
        • TASCAM DB-25 Pinout Standard (AES59-2012 compliant)
    •  Line output connectors (1–8, 9–16, 17–24):
      • Connector: 25-pin balanced D-sub
      • Fixed screws: No. 4-40 UNC (inch type)
      • Maximum output level: +24 dBu
      • Nominal output level: +4 dBu
      •  Output impedance: 200 Ω
        • Pin assignments same for 1–8, 9–16 and 17–24
        • TASCAM DB-25 Pinout Standard (AES59-2012 compliant)
    •  Headphones/Local Monitor Jack:
      • Connector: 6.3mm (1/4") standard stereo jack
      • Maximum output: 80 mW + 80 mW (into 32Ω load)
      • Working impedance: 16 to 600 Ω
    • Control input/output ratings
      • USB:
        • Connector: USB Type-B
        • Transfer format: USB 2.0 High-Speed
        • Device classes: Mass storage, USB audio class 2.0 (USB class compliant)
    • USB audio:
      • Sampling rate: 44.1 kHz / 48 kHz
      •  Quantization bit depth: 24-bit
      • Number of inputs: 24 channels (Output from this unit)
      • Number of outputs: 24 channels (Input to this unit)
    • CLICK OUT jack:
      • Connector: 6.3mm (1/4") standard TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)
    •  FOOTSWITCH jack:
      • Connector: 6.3mm (1/4”) standard TRS jack (Tip: FOOTSW1, Ring: FOOTSW2, Sleeve: GND, supports momentary (unlatch) types)
    •  MIDI OUT connector
      • Connector: 5-pin DIN
      • Format: MIDI 1.0
    • MIDI IN connector
      •  Connector: 5-pin DIN
      •  Format: MIDI 1.0
    • Utility Specs Power: AC 100-240 V, 50/60 Hz
    • Power consumption: 20W
    • Dimensions (WxHxD, including protrusions):
      • With side panels: 446.5 × 114.6 × 269.5 mm
      • Without side panels: 414.6 × 114.6 × 269.5 mm
    • Weight: 4.5kg
    • Operating temperature range: 0–40°C (32–104°F)
    • Operating humidity range: 5–85% (without condensation)
    • Audio performance (Line in ➝ line out for both 44.1kHz and 48kHz sampling rates)
    • Frequency response: 20 Hz – 20 kHz (+0.3/−0.7 dB, 1 kHz)
    • Dynamic range: 100 dB or more (22kHz LPF + A-weight)
    • Total harmonic distortion ratio (THD+N):0.003% or less (1 kHz, at maximum input level)
    • Crosstalk: −100 dB or less (1kHz BPF)
    • Recording Times, with 32GB card (for WAV files w/24 tracks):
      • 16-bit/44.1kHz: 4hrs 10min
      • 16-bit/48kHz: 3hrs 50min
      • 24-bit/44.1kHz: 2hrs 47min
      • 24-bit/48kHz: 2hrs 33min
