Universal Audio Volt 876 24x28 USB Audio Interface
The Volt 876 USB Recording Studio is a 24-in / 28-out rackmount audio interface with 8 Vintage preamps and 1176-style analog compressors. Features 32-bit / 192 kHz conversion.
5
2 Reviews
0% Interest
Payment Plan
Don’t sell your soul to a creditor to get the gear you need. At AMS, we want to lower the barriers to create. That’s why we offer in-house 0% financing, and you don’t even have to open a new line of credit! Spread out payments on your credit card to simplify financing and avoid hefty late fees or service charges. Cost shouldn’t interfere with your creativity.
Earn rewards every time you shop at AMS. You'll collect points on eligible purchases that turn into promotional savings on future gear, with points typically available several days after your order ships. All you need is a free AMS account — no credit card, financing, or payment plan required.
The more you shop, the more you earn. Create a free account and start earning from your very first eligible purchase. Rewards are applied as a discount on future eligible purchases.
Earn points on eligible purchases with AMS Rewards and turn them into savings on future orders, no credit card required. You can apply points at checkout once they’re available.
Eligible to earn $49.95 for this purchase
OR
12 Payments of $83.25
6 Payments of $166.50 No Credit Check
Compare
Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!
Opt in for Notifications on this product for the price drops, stock changes and promotions
The Universal Audio Volt 876 isn't just another audio interface; it's your personal hit factory, neatly packed into a rugged, stylish box. Imagine having the keys to a legendary recording studio—the warm glow of vintage preamps, the punch of classic compressors, and the pristine clarity of professional-grade conversion. That's the Volt 876. We packed it with everything you need to capture your music with the character and polish it deserves.
From the first note you play to the final mix, the Volt 876 delivers a beautifully integrated and sonically superior recording experience. It’s built for serious producers who demand serious sound.

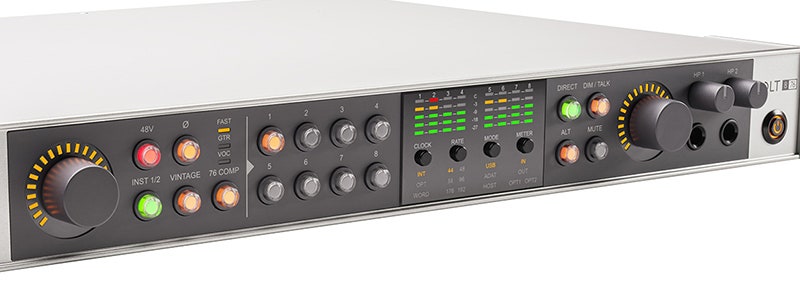

Capture Your Signature Sound
What’s the secret sauce behind countless iconic records? It's often the character of the gear. With the Volt 876, that legendary sound is yours.
Next-Generation Audio Fidelity: Record and mix with stunning detail and clarity thanks to class-leading 32-bit/192 kHz audio conversion. Hear every nuance of your performance, exactly as intended.
Eight Legendary Vintage Preamps: Engage the Vintage Mic Preamp mode and infuse your tracks with the rich, full sound of an iconic UA 610 tube preamp. Perfect for adding warmth and presence to vocals, guitars, and anything else you plug in.
Iconic 1176-Style Compression: Add album-ready punch and presence with eight onboard 76 Compressors. This innovative analog circuit, inspired by UA's renowned 1176, offers presets to expertly tame vocals, guitars, synths, and drums. Just plug in, pick a setting, and get that polished, professional sound instantly.
Create Anywhere, on Any Device: Whether you’re in your studio or on the move, the Volt 876 is ready. It’s fully compatible with Mac, PC, iPad, and iPhone, giving you the freedom to create wherever inspiration strikes.

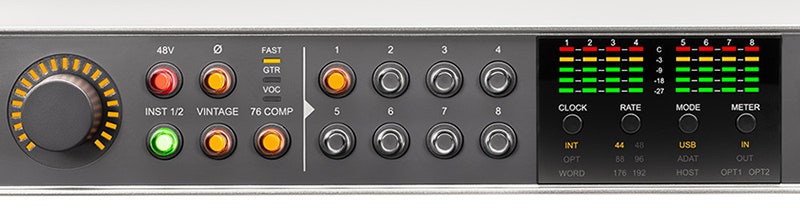

A Studio That Grows With You
Your creative ambitions shouldn't be limited by your gear. The Volt 876 is designed to be the central hub of your studio, today and tomorrow. With expansive ADAT I/O, you can link up to three Volt 876 interfaces to create a massive 24-channel recording system or integrate seamlessly with Apollo and other ADAT-equipped gear. The possibilities are practically endless.

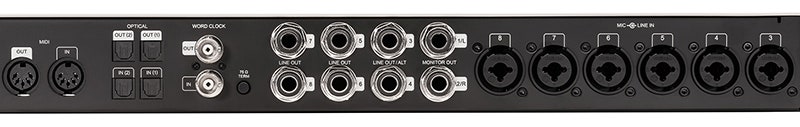

Your All-Access Pass to Pro-Level Production
Right out of the box, the Volt 876 arms you with a powerhouse of music production tools. It includes the UAD Producer Suite, a premium collection of plug-ins featuring Teletronix LA-2A and UA 1176 compressors, Pultec EQs, and more. Paired with UA's LUNA Digital Audio Workstation, you get a deeply integrated recording system with smart, AI-powered tools and unlimited tracks, giving you the feel of an analog studio with the power of modern software.
Ready to elevate your sound? Add the Universal Audio Volt 876 to your setup and start making records that truly stand out.
Universal Audio Volt 876 24x28 USB Audio Interface Features:
24-in / 28-out USB audio interface with eight preamps and cutting-edge 32-bit / 192 kHz audio conversion
Vintage Mic Preamp mode on every channel for recording your voice, guitar, synths, or band with the rich, full sound of an iconic UA 610 tube preamp
UA 76 Compressors on every channel to add clarity and punch to vocals, drums, instruments, and other sources with analog circuit based on UA's renowned 1176
Digitally-controlled mic preamps with Assistive Auto-Gain and full session recall with UAD Console app and LUNA Digital Audio Workstation
16-in / 16-out ADAT connectivity for digital expansion and linking of up to three Volt 876 interfaces to form the ultimate 24 x 28 recording system
Standalone ADAT mode to connect Volt 876 to third-party interfaces or Apollo over ADAT as an 8 x 8 I/O preamp expander
Onboard talkback microphone for effortless studio communication
Realtime direct monitoring with dedicated front panel controls, plus two stereo low-latency cue mixes when used with UAD Console or LUNA DAW
Class-compliant for hassle-free set-up with Mac, iPad, and iPhone
Windows systems require the WDM driver, available within the UA Connect app
Two studio-quality headphone amplifiers for loud, clear monitoring and effortless collaboration
48V phantom power for condenser microphones (selectable per channel)
Stylish, rugged construction built to withstand years of use, with included rack ears and rubber feet for desktop or 1U rack mounting options
Connector Type: 1/4” TRS balanced or TS unbalanced
Line Output(s) - Channels 1-8:
Frequency Response: 20 Hz to 20 kHz, ±0.1 dB
Dynamic Range (A–weighted): 119 dB
THD + Noise (1 kHz @ -1 dBFS): -111 dB (0.0003%)
Maximum Output Level: 20.2 dBu
Output Impedance: 100 Ohms
Connector Type: 1/4” TRS balanced or TS unbalanced
Headphone Output(s) 1-2:
Frequency Response: 20 Hz to 20 kHz, ±0.2 dB
Dynamic Range (A–weighted): 116 dB
THD + Noise (1 kHz @ -1 dBFS into >32Ω): -108 dB (0.0004%)
Maximum Output Power into 32Ω: 225 mW
Maximum Output Power in 600Ω: 35 mW
Connector Type: 1/4" TRS stereo unbalanced
System Requirements:
macOS & Windows:
Available USB 2.0 (or higher) port
USB cable (included)
Intel, AMD, or Apple silicon processor
Windows 10 64-bit edition or newer
macOS Big Sur 11 or newer
Internet connection for software downloads
iPad & iPhone: iPadOS / iOS 16 or newer
Customer Reviews
5
Based on 2 reviews
5
2
4
0
3
0
2
0
1
0
Search reviews
Rating
All ratings
Topol H. 🇺🇸
Verified Buyer
Lovin my new gear!
This unit is just what my rack needed. From the talkback feature, to the added compression on preamps. it’s a great piece for great price from UA OK I’ll see you in a little bit. And it came within three days. Gotta love AMS. !
Published date
06/08/26
Was this review helpful?
0
0
Keith B. 🇺🇸
Verified Buyer
The Volt is what I’ve been waiting for.
I almost purchased the Volt 476. Then i found the 876. It’s exactly what I wanted.
Excellent Sound, Excellent design, and I was able to install it in my rack which freed up space on my desk.
The 1176 feature on the ins sounds nice and warm.
I love everything about this audio interface. UA will...
Published date
01/22/26
Was this review helpful?
3
0
Questions & Answers
1 answered questions
TOMMY
Verified User
Q: What about DSP with all the effects will I still need to a extra DPS expander
Answers on Content by By AMS Customer Service on Sat Nov 15 2025
A: The Volt lineup of interfaces will not have any DSP. If you're needing DSP, I would recommend looking into their Apollo line.
