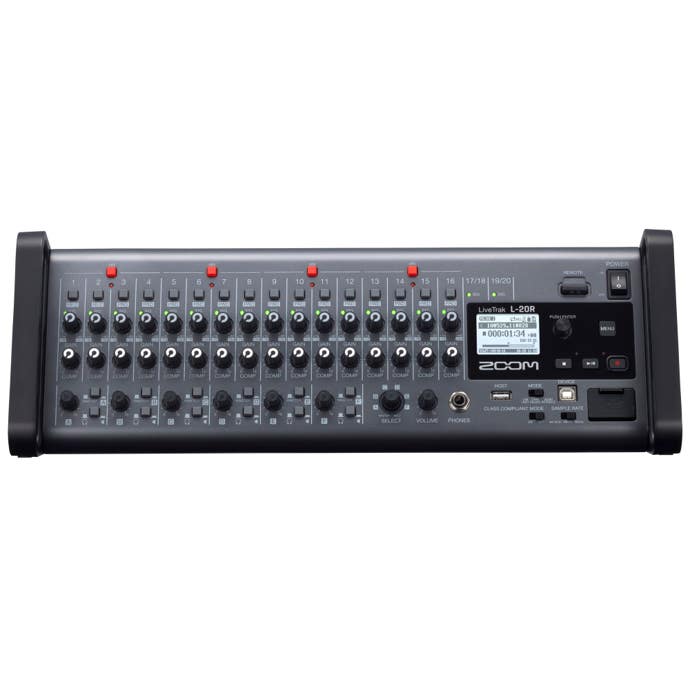

Zoom LiveTrak L-20R Portable Digital Mixer/Recorder

Powerful and rack-mountable, the LiveTrak L-20R is a digital mixer / recorder that allows musicians to mix, monitor and record complex productions right from the stage using an iPad. Features 20 discrete audio channels and six individual custom monitor mixes, the L-20R offers a complete solution for any venue.

Zoom LiveTrak L-20R Digital Mixer/Recorder Features:

20 discrete channels (16 mono plus 2 stereo) with XLR or ¼-inch connectivity
22-track simultaneous recording, 20-track playback22-in/4-out USB audio interface connectivity
Records up to 24bit/96kHz audio to SD card
Built-in compression control (Channels 1-16)
Main outputs plus 6 customizable monitor outputs
Dedicated headphone output for sound engineer
Scene saving function, up to 9 scenes saved at a time
20 built-in chorus, delay and reverb effects with adjustable parameters
Compatible with Remote Mixer app for iPad

What’s in the Box:

LiveTrax L-20R
AD-19 AC Adapter
BTA-1 Bluetooth Adapter
Rack Ears
Quick Guide

Portable and Powerful

Featuring 16 mono mic/line inputs and two stereo inputs, the L-20R can handle the most demanding stages. The L20R offers two EFX busses and each channel includes a 3-band EQ, pan controls and compressor.

22 Tracks of Recording

During your live performance, record 20 channels plus a stereo mix directly to an SD card, then transfer your tracks to your DAW for your final edit.

It’s Your Monitor, Make It Your Mix

With six independent monitor outputs, the LiveTrak L-20R enables musicians to wirelessly create their own custom mix.

Wireless Control

With iPads, the FOH engineer and 6 musicians can control their own mix, including fader levels, EQ settings, channel effects, and more from anywhere in the venue.

Scene Recall

With the LiveTrak L-20R’s Scene Recall feature, you can instantly recall up to nine different scenes with monitor mixes, EQ settings, effects, and more.

A Robust Audio Interface

The LiveTrak L-20R is a 22-in/4-out USB audio interface. Route inputs to any DAW, streaming software, or iOS device*—even while recording to an SD card.

CALIFORNIA PROPOSITION 65 WARNING

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

See all items from ZOOM

Shop Similar Models

Live Sound Digital Mixers

About the Manufacturer

Phone: 631-542-5270

Warranty: 1 Year

Zoom LiveTrak L-20R Portable Digital Mixer/Recorder Specifications

Zoom LiveTrak L-20R Portable Digital Mixer/Recorder Specifications
Product Specifications	Zoom LiveTrak L-20R Digital Mixer/Recorder Specifications Inputs: Mono (MIC/LINE): 16 Stereo (LINE): 2 Outputs: Master Out: 1 Monitor Out: 6 Phones: 1 Mono (MIC/LINE): Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) Input Gain: Pad Off: +16 – +60dB Pad On: − 10 – +34 dB Hi-Z On: +6 – +50 dB Input Impedance: XLR: 3 k Ω TRS: 10 k Ω /1 M Ω (when Hi-Z ON) Maximum Input Level: PAD OFF: 0 dBu (at 0 dBFS) PAD ON: +26 dBu (at 0 dBFS) Phantom Power: +48 V Stereo (Line): Type: TS phone/RCA pin (unbalanced) jacks Maximum input level : +10 dBu Outputs: Master Out: Type: XLR jacks (balanced) Maximum output level :+14.5 dBu Output impedance: 100 Ω Monitor Out A-F (with balanced output) Connected To Monitor Speakers: Master: 1 Monitor: 6 Send EFX: 2 Channel Strip: Low Cut: 40-600 Hz, 12dB/OCT EQ: HIGH: 10 kHz, ± 15 dB, shelving MID: 100 Hz – 8 kHz, ± 15 dB, peaking LOW: 100 Hz, ± 15 dB, shelving Level Meters: Level Segments: 12 Effects: 20 types EFX 1: Hall 1 (Reverb) Hall 2 (Reverb) Room 1 (Reverb) Plate (Reverb) Church (Reverb) DrumAmb (Reverb) GateRev (Reverb) Vocal 1 (Delay + Hall Reverb) Vocal 2 (Delay + Mono Reverb) Vocal 3 (Delay + Plate Reverb) EFX 2: Hall 3 (Reverb) Room 2 (Reverb) Spring (Reverb) Delay (Delay) Analog (Delay) P-P Dly (Delay) Vocal 4 (Delay + Room Reverb) Chorus 1 (Stereo Chorus) Chorus 2 (Mono Chorus) Cho+Dly (Chorus + Delay) Recorder: Max Simultaneous Recording Tracks: 22 at 44.1/48/96 kHz Max Simultaneous Playback Tracks: 20 Recording Format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo Recording Media: 4 GB – 32 GB SDHC cards (Class 10 or higher) 64 GB – 512 GB SDXC cards (Class 10 or higher) Audio Interface: 44.1/48 kHz: Recording: 22 Ch Playback: 4 Ch Bit Depth: 24-bit Interface: USB 2.0
