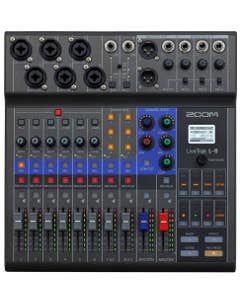

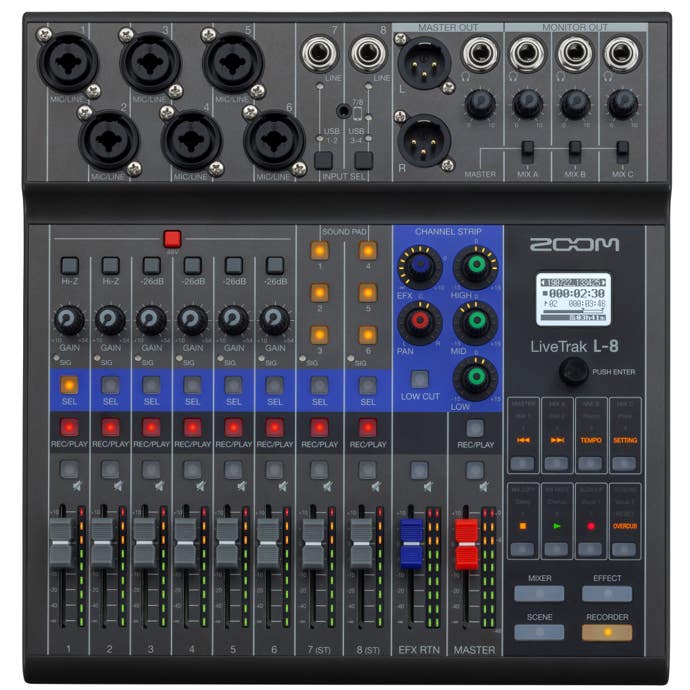

Zoom LiveTrak L-8 8 Channel Portable Digital Mixer And Recorder

Zoom LiveTrak L-8 8 Channel Portable Digital Mixer And Recorder

4.7
43 Reviews
$449.99

Eligible to earn $22.45 for this purchase

OR

8 Payments of $56.25

6 Payments of $75.00
No Credit Check

ConditionsNew
New
Non-Factory Sealed - Used
In Stock!

h m s

Get It August 22nd
free-shipping-icon
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    AMS Agent

    Have questions?
    Talk to a sales specialist!

    800-319-9043

    Frequently Bought Together
    =
    $552.89
    8 Payments of $69.11

    Ideal for podcast, studio work or on the go, the Zoom LiveTrak L-8 is a portable digital mixer and recorder.




    Zoom LiveTrak L-8 8-Channel Portable Digital Mixer Features:

    • 8-channel mixer (6 combo, plus 2 TS)
    • 12-track simultaneous recording, 10-track playback
    • Mix-Minus function preventing audio feedback from dial-in guests
    • TRRS connection and included TRRS cable for phone connectivity
    • 6 assignable Sound Pads, with 13 preset sounds
    • 4 headphone outputs, consisting of 3 custom monitor mixes, plus one main mix
    • 3-band EQ and a low-cut function
    • 7 scene memories for storing mixes
    • 12-in / 4-out USB audio interface
    • Class-compliant mode (for iOS compatibility)
    • Battery operated with four AA batteries or a USB power supply
    • Record up to 24-bit/96kHz, record up to 48kHZ to computer and SD card simultaneously

    The L-8 combines a digital mixer with 8 input channels, and a multi-track recorder capable of recording up to 12 tracks simultaneously. It can be used as a 12-in / 4-out USB audio interface even while you are recording to the SD card. Whether recording to the SD card or computer, it will save a separate file for each input so you will have the flexibility to edit and mix in post-production.


    Podcasters can connect up to 4 pairs of headphones to the L-8’s outputs. In addition to the master output mix, the L-8 has 3 independent monitor mixes, enabling different mixes to be sent to individual musicians, participants, and performers.


    Sound effects are a necessity for podcasters. The L-8 has 6 sound pads that can be used to play intros, jingles, sound effects, and more. You can trigger a pre-recorded ad or interview to give your hosts a break. If your podcast has a theme or a music bed, you can hit a sound pad to easily play it.


    Remote podcast guests can be problematic, but not with the L-8. Equipped with a smartphone connection jack and an included TRRS cable, the L-8 is ideal for podcasting with call-in guests. The Mix-Minus function automatically prevents echo and feedback to and from your caller. You can also use the USB connection to route audio from Skype, Facetime, Hangouts, Slack, and more.


    Powered with four AA batteries for up to 2 1/2 hours, the L-8 is your anytime, anywhere recorder and mixer. For longer recording sessions, you can connect a portable USB battery, and if the USB battery dies, it will automatically switch to the AA battery power. You can always power the L-8 using wall power with the included power adapter.

    CALIFORNIA PROPOSITION 65 WARNING

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Shop Similar Models

    Zoom LiveTrak L-8 8-Channel Portable Digital Mixer Specifications

    Item #:ZOO ZL8
    Manufacturer Part Number:ZOO ZL8
    UPC:884354021146
    Product Specifications

    Zoom LiveTrak L-8 8-Channel Portable Digital Mixer Specifications:

    • Number of Channels:
      • Inputs:
        • Mic/Line: 6
        • Line: 2
      • Output:
        • Master Out: 1
        • Master Out (Phones): 1
        • Monitor Out (Phones): 3
    • Inputs:
      • Mic/Line:
        • Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
        • Input gain: +10 – +54 dB
        • Input impedance: XLR: 3 kO
        • TRS: 3 kO/510 kO (when Hi-Z ON)
        • Maximum input level –2 dBu when –26dB switch OFF (at 0 dBFS) +24 dBu when –26dB switch ON (at 0 dBFS)
        • Phantom power: +48 V
      • Line:
        • TS phone jack/TRRS mini jack (4-pole/TIP: L, RING: R, RING: GND, SLEEVE: MIC)
        • Input impedance 3 kO
        • Maximum input level +4 dBu
    • Output:
      • Master Out:
        • Type XLR jacks (balanced)
        • Maximum output level: +14.5 dBu
        • Output impedance: 100 O
      • Master Out (Phones):
        • Type Standard stereo phone jack
        • Maximum output level: 10 mW + 10 mW (60O load)
        • Output impedance: 10 O
      • Monitor Out (Phones):
        • Type Standard stereo phone jack
        • Maximum output level: 10 mW + 10 mW (60O load)
        • Output impedance: 10 O
      • Buses:
        • Master: 1
        • Monitor: 3
        • Send EFX: 1
    • Channel strip:
      • Low Cut: 75 Hz, 12 dB/OCT
      • EQ High: 10 kHz, ±15 dB, shelving MID: 2.5 kHz, ±15 dB, peaking LOW: 100 Hz, ±15 dB, shelving
    • Level Meter: 9 segments
    • Send Effects: 8 types
    • Recorder:
      • Maximum simultaneous recording tracks 12 at 44.1/48/96 kHz
      • Maximum simultaneous playback tracks 10
      • Recording format WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo
    • Recording Media:
      • 4GB–32GB SDHC-compliant cards (Class 10 or higher) 64GB–512GB SDXC-compliant cards (Class 10 or higher)
      • Audio interface 44.1/48 kHz
      • Recording: 12 channels Playback: 4 channels
      • Bit depth 24-bit
      • Interface USB 2.0
    • Card Reader: Class Mass storage USB 2.0 High Speed
    • Sampling Frequency: 44.1/48/96 kHz
    • Frequency Response: 20 Hz – 20 kHz: –1 dB at 44.1 kHz 20 Hz – 40 kHz: –3 dB at 96 kHz (when +48 dB)
    • Equivalent Input Noise: Actual measurements: 121dB EIN (IHF-A) at +54dB/150O input
    • Display: LCD with backlight (96×64 resolution)
    • Power:
      • 4 AA batteries (alkaline, NiMH or lithium)
      • AC adapter (ZOOM AD-17): DC 5V/1A • USB bus power
      • Estimated continuous operation times using batteries: 2 hours for alkaline or 3 hours for NiMH when battery saving mode on/48V off
