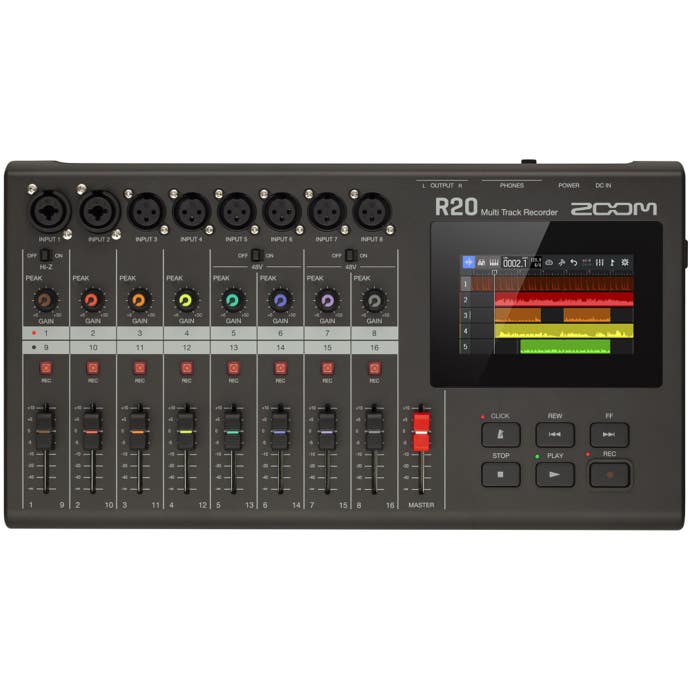

Zoom R20 MultiTrack Digital Recorder

Order your Zoom R20 MultiTrack Digital Recorder from AMS and enjoy 0% Interest Payment Plans, Free Shipping, Free Extended Warranty & 45 Day Money Back Guarantee.
You must allow Youtube cookies in order to view videos. You can set your cookie preferences in the Preference Center by selecting the Cookie Settings button.

Frequently Bought Together

+ + =
Current item:
QTY

customer care
Have questions, found a better price? Talk to a sales specialist! 800-319-9043
Product Highlights

Product Description

Designed with an easy-to-use DAW-inspired interface, the R20 features a 4.3” full-color LCD touchscreen display and records up to 16 tracks (8 simultaneously). A multi-track recorder that redefines easy, the R20 makes it insanely simple to track, edit and mix your songs, letting you focus on the music. The R20 has the best preamps and noise floor of any multi track recorder Zoom has ever designed. With six XLR inputs, two combo inputs, and 16 tracks of recording, the R20 is perfect for singer-songwriters to full bands.

Zoom R20 Multi-Track Digital Recorder Features
  • 4.3” Full-color LCD touchscreen display
  • Easy-to-use DAW-inspired interface
  • Record up to 16 tracks (8 simultaneously)
  • Eight XLR mic preamps, including two mic/line/instrument combo jacks
  • Hi-Z available on input 1 and 48V phantom power available on inputs 5-8
  • Color-coded volume faders, gain knobs and tracks
  • Onboard editing and built-in effects
  • Pre-loaded drum loops
  • Optional BTA-1 Bluetooth enables wireless control via the R20 Control App
  • USB-C audio interface up to 8-in / 4-out
  • Records directly to SDHC cards up to 32GB and SDXC cards up to 1TB
  • New locking-type AC adapter (ZAD-1220)
  • Up to 24-bit /44.1kHz audio in BWF-compliant WAV
  • Compatible with Guitar Lab software for Mac/Windows PC
DRAG. DROP. PINCH. SWIPE. CREATE.
Navigate and edit with ease, via the R20’s 4.3-inch color LCD touchscreen interface.

COLOR-CODED FOR CLARITY.
Improve your workflow with color-coded faders, gain dials, and touchscreen track regions, making sure you are always adjusting the correct channel.

PUT THE PIECES TOGETHER
Cut, copy, combine and loop. The R20’s interface provides intuitive editing. You’ll immediately feel at home.

SPICE THINGS UP!
Polish your tracks and mixes with professional effects such as EQ, compression, and more. The R20 provides a full MFX processor compatible with Guitar Lab software.

THE RHYTHM IS GONNA GET YA!
30 genres, 150 rhythm patterns and song form variations, it’s hard to find a drummer this versatile.

18 BUILT-IN SYNTH SOUNDS
Plug in a MIDI keyboard via USB-C or use the touchscreen to add sonic textures with the R20’s internal synthesizer.

BACKING TRACKS
The R20 can import and playback standard MIDI files allowing you to import bass lines, melodies, piano parts, and more.

RECORD TO SD
The R20 records directly to SDHC or SDXC cards up to 1TB, giving you plenty of space to track your next song or album.

MONITOR & PLAYBACK
The R20 has a headphone jack for monitoring while recording and dedicated outputs for mixing on your favorite monitors.

ATTENTION TO DETAIL
    Locking AC Adapter; The new Zoom locking adapter ensures security against accidental unplugging.

    Click;
     Access the fully adjustable click track with just a press of a button.

    Inputs:  Hi-Z is available on input 1, while 48V phantom power is available on input 5-8.
WIRELESS CONTROL APP
Use the optional Zoom BTA-1* Bluetooth Adaptor to control the R20 wirelessly from your iOS device.

*BTA-1 available separately.
**R20 Control App available in 2022

 LET'S MOVE FORWARD TOGETHER.
Accessibility for the Visually Impaired
The first multi-track recorder that allows accessibility for the visually impaired, the R20 app features VoiceOver and VoiceOver Gestures.

CALIFORNIA PROPOSITION 65 WARNING
warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
See all items from Zoom

Shop Similar Models

Helpful Info about the Manufacturer
Phone:  631-542-5270 Warranty:  1 Year

Product Specifications

Zoom R20 Multi-Track Digital Recorder Specifications
  • Inputs/Outputs:
  • Inputs:
  • Mic/Line (mono): 8
  • Outputs:
  • Master Out: 1
  • Phones: 1
  • Inputs:
  • Mic/Line (mono):
  • Connectors:
    • XLR/TRS combo jacks × 2
    • XLR × 6
    • (XLR: 2 HOT/TRS: TIP HOT)
  • Input gain: −3 – +40 dB
  • Input impedance:
    • XLR: 3.9 kΩ
    • TRS: 5.3 kΩ/1 MΩ (when Hi-Z is ON, for INPUT 1 only)
  • Maximum input level: +4 dBu (@0 dBFS)
  • Phantom power: +48 V (INPUTS 5–8, switchable in pairs)
  • Equivalent input noise: –121 dBu or less (IHF-A) with +40dB/150Ω input
  • Frequency response: –1.0 dB: 20 Hz – 20 kHz
  • Outputs:
  • Master Out:
  • Connectors: 2 TRS phone jacks (balanced)
  • Maximum output level: +14 dBu
  • Output impedance: 200 Ω
  • Phones:
  • Connector: 1 standard stereo phone jack
  • Maximum output level: 20 mW + 20 mW (into 32Ω load)
  • Output impedance: 33 Ω
  • Track Settings:
  • Pan: N/A
  • EQ:
    • High: 10 kHz, ±12 dB, shelving
    • Middle: 2.5 kHz, ±12 dB, peaking
    • Low: 100 Hz, ±12 dB, shelving
  • Send Effect: N/A
  • Stereo Link: N/A
  • Comp/Limiter/Gate: N/A
  • Recorder:
  • Maximum simultaneous recording tracks: 8
  • Maximum simultaneous playback tracks: 16
  • Recording format: 44.1kHz, 16/24-bit, mono/stereo WAV
  • Recording media:
    • 4–32GB cards compatible with the SDHC specification
    • 64–512GB cards compatible with the SDXC specification
  • Effects:
  • Maximum number of simultaneous effects:
    • 3 effects
    • One insert effect on one channel or one send effect available to all tracks
  • Patch memories: 50
  • Guitar Lab compatible: N/A
  • Tuner:
    • Chromatic/Guitar/Bass/Open
    • A/Open
    • D/Open
    • E/Open
    • G/DADGAD
  • Metronome:
  • Time signatures:
    • 3/4,
    • 4/4,
    • 6/8
  • Tempo range: 40.0–250.0 BPM
  • Rhythm Loops:
  • Sound source format: PCM
  • Number of loops: 150 or more
  • Synth:
  • Polyphony: 8
  • Sound source format: FM
  • Number of sound types: 18 (including PCM drum kit)
  • Display: 4.3" (480×272) full-color touchscreen LCD
  • USB Connector:
    • USB Type-C (Use a USB cable that supports data transfer. USB bus power is not supported.)
  • Audio interface operation:
  • Stereo mix:
    • USB 2.0 Full Speed
    • 44.1kHz, 24-bit 2-in/2-out
  • Multitrack:
    • USB 2.0 High Speed 44.1 kHz, 16/24-bit
    • 8-in/4-out
  • Mass storage operation:
  • Host/Device: USB 2.0 High Speed (5V/500mA power supplied when host)
  • Guitar Lab connection: USB 1.1 Full Speed
  • USB MIDI keyboard connection: USB 1.1 Full Speed (5V/500mA power supplied)
  • DAW connection (control surface) function: USB 1.1 Full Speed
  • Remote: Dedicated wireless adapter (ZOOM BTA-1)
  • Power: AC adapter (ZOOM ZAD-1220): 12 V/2.0 A
  • Power consumption: 11 W maximum
  • External dimensions: 378 mm (W) X 206 mm (D) X 58 mm (H)
  • Weight (unit only): 1.33 kg
