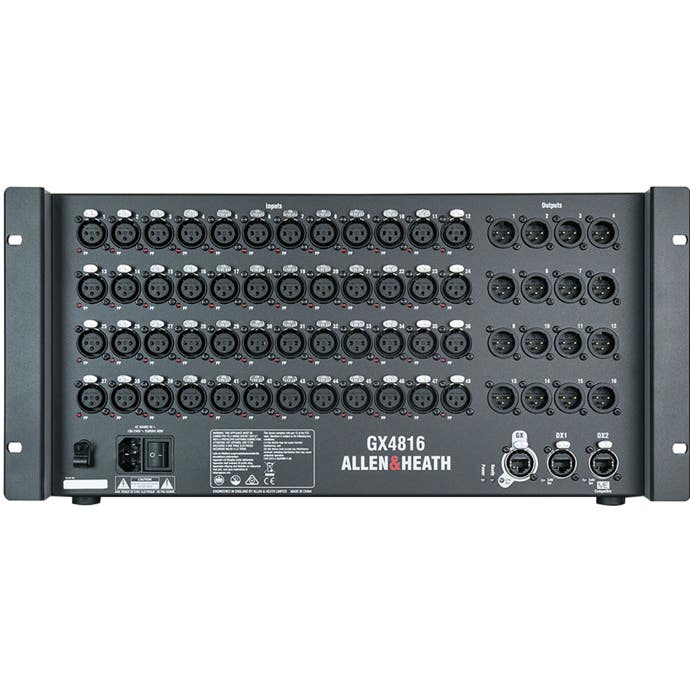

Allen & Heath AH-GX4816 48x16 Stagebox With dLive 96kHz Mic Preamps
5
1 Review
0% Interest
Payment Plan
Don’t sell your soul to a creditor to get the gear you need. At AMS, we want to lower the barriers to create. That’s why we offer in-house 0% financing, and you don’t even have to open a new line of credit! Spread out payments on your credit card to simplify financing and avoid hefty late fees or service charges. Cost shouldn’t interfere with your creativity.
Earn rewards every time you shop at AMS. You'll collect points on eligible purchases that turn into promotional savings on future gear, with points typically available several days after your order ships. All you need is a free AMS account — no credit card, financing, or payment plan required.
The more you shop, the more you earn. Create a free account and start earning from your very first eligible purchase. Rewards are applied as a discount on future eligible purchases.
Earn points on eligible purchases with AMS Rewards and turn them into savings on future orders, no credit card required. You can apply points at checkout once they’re available.
Eligible to earn $249.95 for this purchase
OR
12 Payments of $250.00 +$1,999.00 down
6 Payments of $208.33 +$3,749.00 down No Credit Check
Compare
Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!
Opt in for Notifications on this product for the price drops, stock changes and promotions
GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for SQ, Avantis and dLive mixing systems, and for the AHM-64 audio matrix processor.
Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket when used with SQ or Avantis.
GX4816 connects via a single Cat5e cable to an SLink socket on a SQ, Avantis or AHM-64, or to a gigaACE audio network card on a dLive system.
Connection to DX Expanders and the ME Personal Mixing System is also over Cat5e cable.
Allen And Heath AH-GX4816 48x16 Stagebox Features
48 Mic Preamps on XLR with Phantom Power status LEDs
16 XLR Line Outs
96kHz operation
DX1 Port – compatible with a single DX32, or up to 2 DX168/DX164-W expanders
DX2/ME Port – compatible with a single DX32, up to 2 DX168/DX164-W expanders, or a ME personal monitoring system (not compatible with AHM-64 or dLive).
Compatible with SQ, Avantis, AHM-64 and dLive (dLive requires firmware V1.86 onwards)
Multiple GX4816 can be added to a system:
Up to 2 GX4816 units can be added to a SQ system
Up to 3 GX4816 units can be added to an Avantis system
Up to 5 GX4816 units can be added to a dLive S Class system
Up to 3 GX4816 units can be added to a dLive C Class system
Rack-mounted (5u) or shelf/floor operation
Plug and Play – no IP addressing required
Compatible with CAT5e (or higher) cables of up to 100m
Allen & Heath AH-GX4816 48x16 Stagebox With dLive 96kHz Mic Preamps
Item #:
ALL AHGX4816
Manufacturer Part Number:
AH-GX4816
UPC:
6938122248809
Customer Reviews
5
Based on 1 review
5
1
4
0
3
0
2
0
1
0
Search reviews
Rating
All ratings
Paul V. 🇺🇸
Verified Buyer
Excellent companion to Allen and Heath SQ series
This is solid addition to any SQ series mixer if you want to add 96Khz capable I/O. I also use it in conjunction with my Avantis and another DX168 I/O box. Extremely clean preamps and outputs, in a lightweight format. I've had this for almost a year and it has performed flawlessly with both mixers. ...
