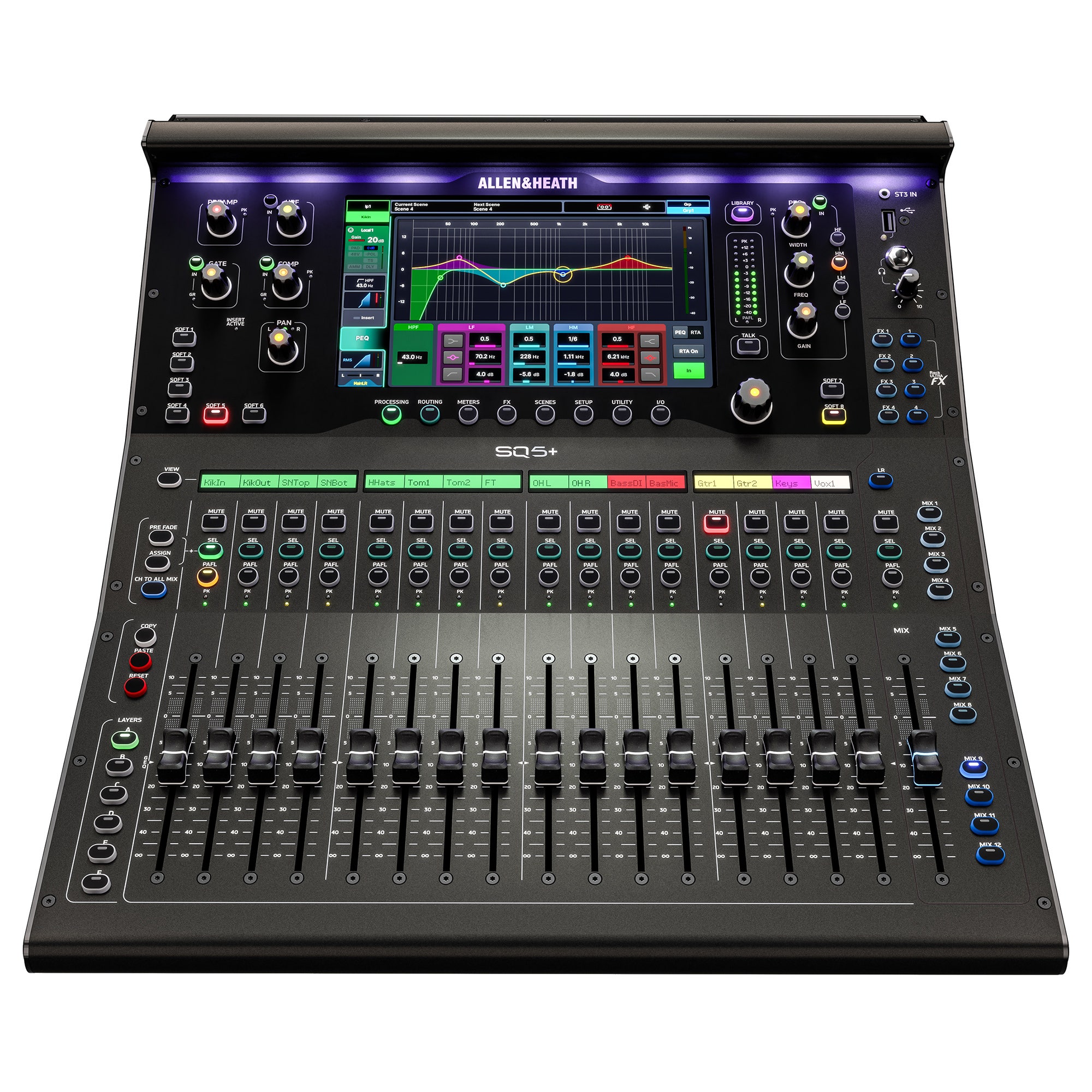

Allen & Heath SQ5 Plus 16-Input 48-Channel Digital Mixer

High-performance digital mixer built around a 96kHz XCVI core, offering ultra-low latency, expanded processing power, advanced FX, a larger touchscreen, and flexible connectivity for professional live sound work.

$4,999.00 $5,799.00

OR

h m s

Fast & Free Shipping

Special Conditions

Have questions?
Talk to a sales specialist!

800-319-9043

Found for less

Frequently Bought Together

Allen & Heath SQ5 Plus 16-Input 48-Channel Digital Mixer

$4,999.00

+

Hosa LBL505 Scribble Strip Console Tape 0.75 In x 60 yd

$27.95

+

Hosa LTE503BNC LED Console Lamp BNC 15 Inch

$43.95

=

$5,070.90

Overview
Specifications
Reviews
Q&A

Allen & Heath SQ5 Plus Digital Mixer

The SQ-5 already had a loyal following before Allen & Heath decided to give it a glow-up. The SQ5 Plus keeps everything that made the original a go-to for owner-operators, mid-sized venues, and small tours — then throws in more processing power, a crisp 9" capacitive touchscreen, and a redesigned GUI that actually makes sense to use.

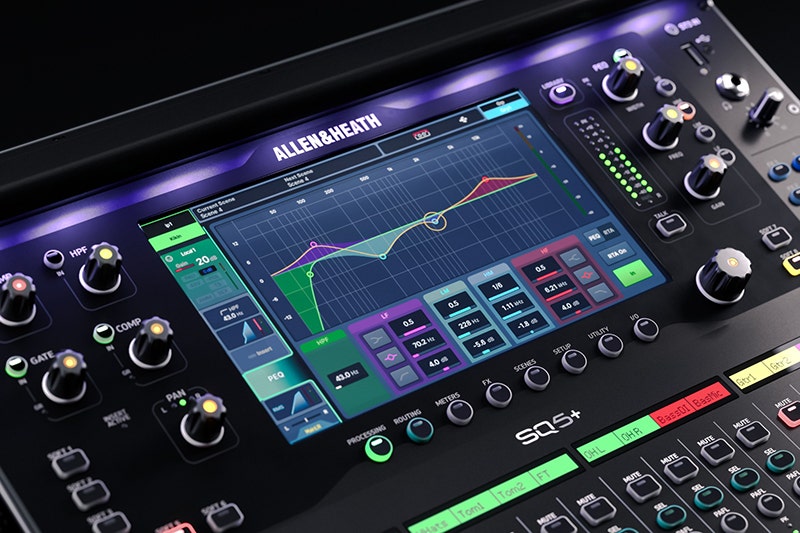

Crystal-Clear 96 kHz Processing

Some mixers claim "pristine audio" and deliver something closer to AM radio static. The SQ5 Plus is not one of those mixers. Under the hood, the 96 kHz XCVI core processes 48 input channels with ultra-low latency and phase-coherent mixing — which is just a fancy way of saying your audio will sound clean, tight, and honest. Plus, with direct DEEP processing, you get classic studio preamps and compressors built right into the system with zero added latency, saving you from laggy external plugins.

96 kHz XCVI Core & DEEP Processing: Run premium analog emulations directly on the core, earning nods of approval from even the most cynical sound engineers.
8 FX Engines with RackUltra: Four dedicated RackUltra FX engines join four standard engines, giving you a sonic arsenal that will make your reverb-loving guitarists very happy.
Comprehensive Bus Routing: Rigid signal paths are for people who like rules. Route your signals wherever you need them with total flexibility.

An Intuitive Surface

Nobody got into live sound because they love menu-diving like a digital archaeologist. The SQ5 Plus rescues you from sub-menu purgatory with a gorgeous 9" touchscreen and an intuitive GUI that puts the right controls exactly where your fingers expect them. Combined with 17 motorized faders, it’s as satisfying to use as it is easy on the eyes under stage lights.

9" Touchscreen & Reimagined GUI: Navigate 48 channels without feeling like you're trying to defuse a bomb in the dark.
17 Motorized 100mm Faders: Customize your layout to match how your brain actually works, rather than how a designer in 2009 thought it should.
Carbon-on-Graphite Finish: Refined controls and updated artwork give this mixer a premium look that says, "Yes, I absolutely know what I'm doing."

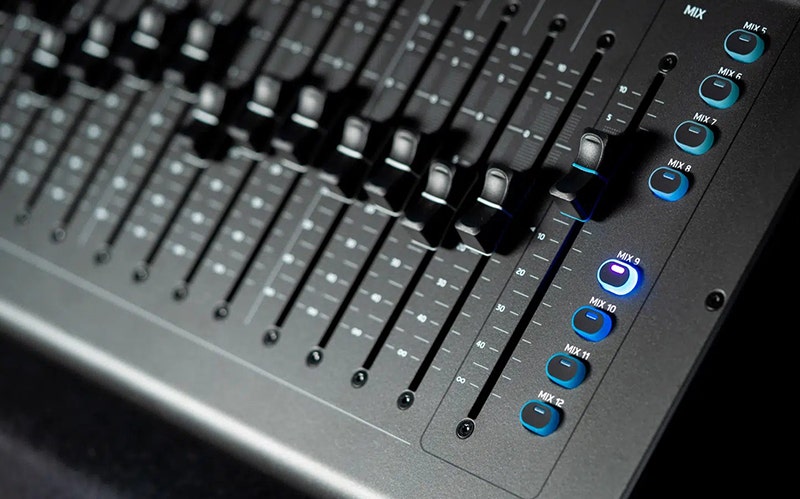

Allen & Heath SQ5 Plus An Intuitive Surface

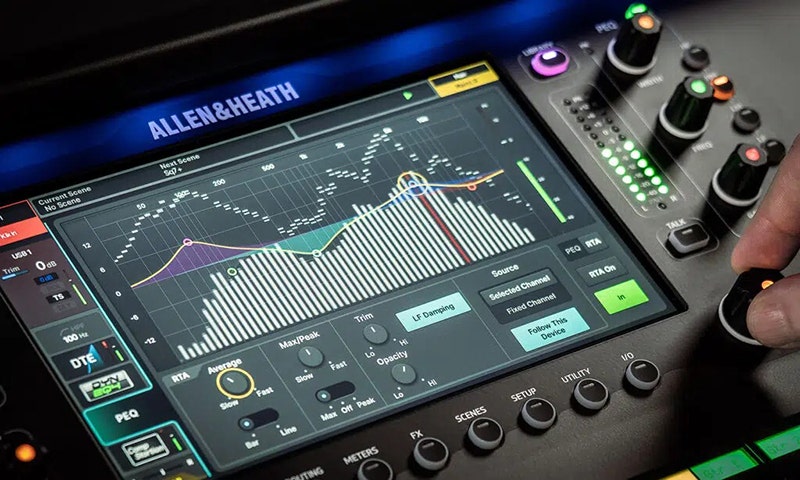

Allen & Heath SQ5 Plus Connectivity & Control

Connectivity & Control That Goes the Distance

An audio console is only as good as its connections, and the SQ5 Plus has plenty of them. From traditional XLR analog inputs to a 128x128 SLink port and a built-in USB interface, it fits seamlessly into your workflow. It's also fully network-ready, so you can tweak the mix from an iPad at the bar — or from the parking lot, if the band decides to play that song again.

128x128 SLink Expansion Port: Massive system integration options so your setup can grow without requiring you to buy a whole new console.
Built-In 32x32 USB Audio Interface: Record multichannel audio straight to your DAW, making your laptop an official part of the rig.
Network-Ready with Remote Apps: Control the mix on iOS or Android devices, giving you the freedom to step away from the desk and actually hear the room.

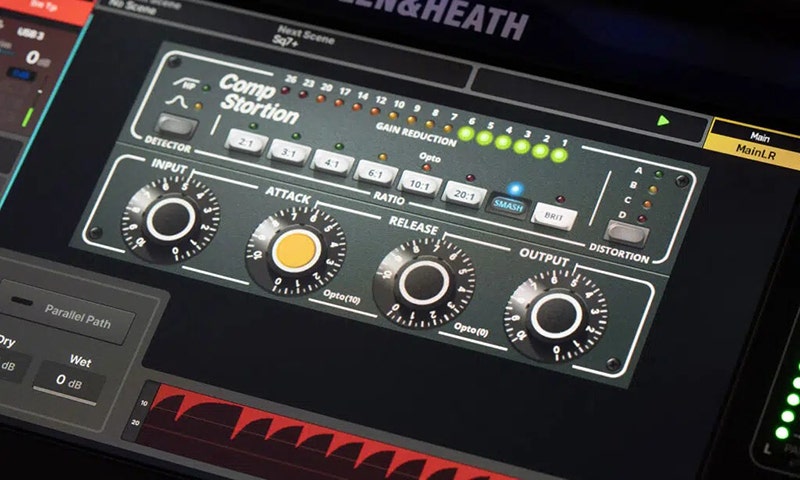

The Mixer That Does the Heavy Lifting

The Allen & Heath SQ5 Plus is the console that quietly becomes the backbone of your setup — like a great stage manager, you only miss it when it's gone. It delivers 96 kHz audio quality, serious processing headroom, an intuitive surface, and connectivity built for real-world demands. If you're after a digital mixer that punches above its weight, this one deserves a closer look.

Allen & Heath SQ5 Plus Features:

96 kHz XCVI core with ultra-low latency and phase-coherent mixing

48 input processing channels with comprehensive bus, matrix, and FX routing

Upgraded 9" capacitive touchscreen with reimagined GUI

Carbon-on-graphite surface artwork and updated controls

8 FX engines including 4 RackUltra FX with dedicated stereo returns

Support for Allen & Heath DEEP channel processing plug-ins

17 motorized 100mm faders with customizable channel strip layers and soft keys

128x128 SLink port for flexible I/O expansion and system integration

Extensive analog and digital I/O including XLR, TRS, AES3, USB, and SLink

Built-in 32x32 USB audio interface for multichannel recording and playback

Remote control via free Allen & Heath iOS and Android apps

See all items from ALLEN & HEATH

Shop Similar Models

Digital Mixers

About the Manufacturer

Phone: 800-431-2609

Warranty: 1 Year

Allen & Heath SQ5 Plus 16-Input 48-Channel Digital Mixer Specifications

Allen & Heath SQ5 Plus 16-Input 48-Channel Digital Mixer Specifications
Product Specifications	Core: 96 kHz XCVI Input Processing Channels: 48 Main Output: Stereo LR Mixes: 12 Mono/Stereo Group/Aux FX Sends: 4 RackUltra FX Sends: 4 Matrix Mixes: 6 Mono/Linkable Mic/Line Inputs: 16 XLR Stereo Line Inputs: 3 (2x TRS, 1x 3.5 mm) Talkback Input: 1x XLR Analog Outputs: 12x XLR, 2x TRS Digital Output: 1x AES3 Stereo Expansion Port: 128×128 Intelligent SLink Headphone Output: Stereo FX Engines: 8 with Dedicated Stereo Returns RackUltra FX Engines: 4 with Dedicated Stereo Returns Touchscreen: 9" Capacitive Faders: 17 x 100 mm Motorized Channel Strip Layers: 6 Customizable Soft Keys: 8 USB‑A: Stereo/Multichannel Record, Playback, Data USB‑B Audio Interface: 32×32 Footswitch: Dual, Configurable Metering LEDs: Configurable Chromatic Channel LEDs Rack Mounting: 19" (Optional Kit) Power Connection: IEC with Worldwide PSU Network: RJ45 Ethernet Remote Control: Supported via Free Apps

Frequently Asked Questions

The SQ5 Plus upgrades the original SQ-5 with increased processing power, a larger 9" capacitive touchscreen, a reimagined GUI, and support for DEEP channel processing plug-ins. The surface also receives a refreshed carbon-on-graphite aesthetic update.

The SQ5 Plus features 48 input processing channels, supported by a 96 kHz XCVI core with ultra-low latency and phase-coherent mixing for full-quality signal processing across the entire channel count.

Yes, the SQ5 Plus includes a built-in 32x32 USB audio interface, allowing direct multichannel recording and playback to a DAW without the need for additional hardware.

The 128x128 SLink port enables flexible I/O expansion and system integration, allowing the SQ5 Plus to connect with Allen & Heath stagebox and expansion products for larger or more complex setups.

Yes, the console is network-ready and supports remote control via free Allen & Heath apps for iOS and Android, giving engineers the ability to adjust the mix from anywhere in the venue.
