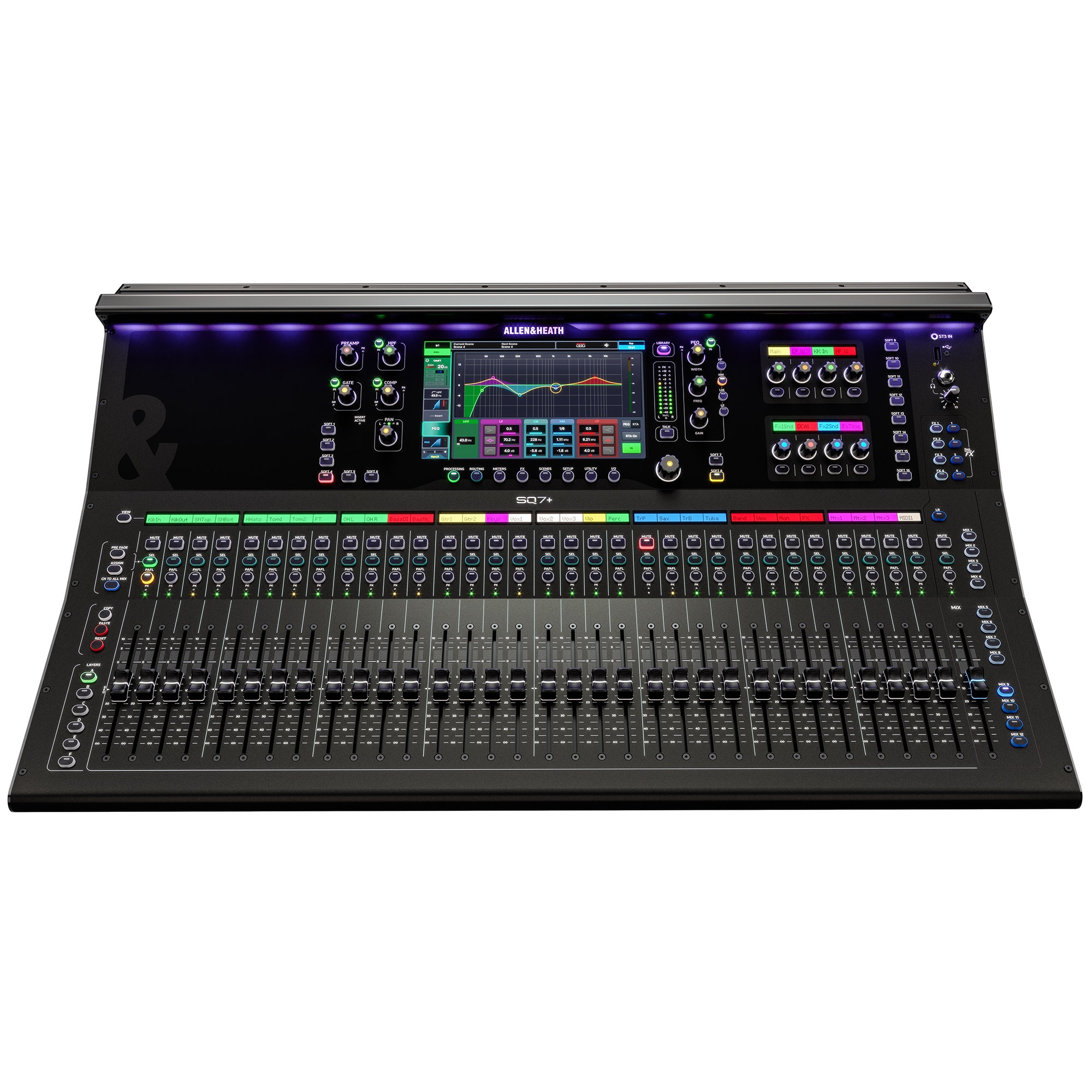

Allen & Heath SQ7 Plus 24-Input 48-Channel Digital Mixer

High-end 96kHz digital mixer with maximum channel count, expanded fader control, advanced FX, DEEP processing, and extensive I/O, built for demanding tours, venues, and professional live sound.

OR

h m s

free-shipping-icon
In Stock!
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    2 Day Shipping Icon

    Fast & Free Shipping

    Did you know AMS is the only music distributor with four distribution centers? And that means we can offer super-fast shipping on all your music products. Whether you don’t want the spark of inspiration to fade or you really need that replacement speaker before the next show, we have you covered anywhere in the U.S. And even better, it’s FREE!

    Special Return Conditions

    If defective, this item must be exchanged directly through the manufacturer. It can only be returned to us if it is unopened.

    Free Extended Warranty

    Free 12 Month Extended Warranty

    You shouldn’t have to pay extra for a little peace of mind. When you purchase from AMS, you’ll get a free 12-month extended warranty to cover your purchase — and that’s in addition to any manufacturer’s warranties! Thousands of items in our catalog feature the “Gold Lock Extended Warranty,” so you can feel confident in your purchase.

    45 Day return icon

    45 Day return

    Sometimes the gear on the computer screen seems like a better fit than when you actually get your hands on it. We understand, and that’s why AMS offers an industry-leading 45-day money-back guarantee. If you’re not happy with an item, you have a full month and a half to send it back! We don’t want to just sell you gear. We want to sell you the RIGHT gear — even if it takes a few tries.

    AMS Agent

    Have questions?
    Talk to a sales specialist!

    800-319-9043

    With a 48-input channel 96kHz XCVI core for ultra-low latency and phase coherent mixing, alongside incredible connectivity options - the SQ range continues to be class leading and the go-to solution for owner operators, mid-sized venues, small tours and anywhere audio quality and interoperability are vital. The SQ7+ upgrades the SQ-7 with more processing power, a larger 9” touchscreen with reimagined GUI and a clean ‘carbon-on-graphite’ update to the surface artwork and controls. All SQ+ models also include 4x RackUltra FX engines with dedicated send and return channels and the ability to run the latest DEEP channel processing.



    Allen & Heath SQ7 Plus 24-Input 48-Channel Digital Mixer Features:

    • 96 kHz XCVI core delivers ultra‑low latency and phase‑coherent audio performance
    • 48 input processing channels with comprehensive mix, matrix, and routing flexibility
    • SQ7+ upgrade adds more processing power and a large 9” capacitive touchscreen
    • Reimagined GUI and carbon‑on‑graphite surface design for faster, clearer workflows
    • 8 total FX engines including 4 RackUltra FX with dedicated sends and returns
    • DEEP channel processing support for studio‑grade dynamics and tonal shaping
    • Extensive onboard I/O with 32 XLR mic/line inputs and multiple analog outputs
    • 128x128 intelligent SLink port enables seamless system expansion and networking
    • 33 motorized 100mm faders with custom layers, soft keys, and soft rotaries
    • Integrated USB audio, network control, and remote mixing via free apps
    Shop Similar Models

    Allen & Heath SQ7 Plus 24-Input 48-Channel Digital Mixer Specifications

    Allen & Heath SQ7 Plus 24-Input 48-Channel Digital Mixer Specifications
    Product Specifications
    • Core: 96 kHz XCVI
    • Input Processing Channels: 48
    • Main Output: Stereo LR
    • Mix Buses: 12 Mono/Stereo Group/Aux
    • FX Sends: 4
    • RackUltra FX Sends: 4
    • Matrix Mixes: 6 Mono/Linkable
    • Mic/Line Inputs: 32x XLR
    • Stereo Line Inputs: 3 (2x TRS, 1x 3.5 mm)
    • Talkback Input: 1x XLR
    • XLR Outputs: 16
    • TRS Outputs: 2
    • Digital Output: AES3 Stereo
    • Expansion Port: 128 x 128 Intelligent SLink
    • Headphone Output: Stereo
    • FX Engines: 8 with Dedicated Stereo Returns
    • RackUltra FX Engines: 4 with Dedicated Stereo Returns
    • Touchscreen: 9" Capacitive
    • Faders: 33 x 100 mm Motorized
    • Channel Strip Layers: 6 Customizable
    • Soft Keys: 16
    • Soft Rotaries: 8
    • USB‑A: Stereo/Multichannel Record, Playback, Data
    • USB‑B Audio Interface: 32 x 32
    • Footswitch: Dual, Configurable
    • Metering LEDs: Configurable Chromatic Channel LEDs
    • Power Connection: IEC with Worldwide PSU
    • Network: RJ45 Ethernet
    • Remote Control: Via Free Apps
