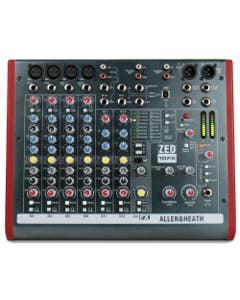

Allen & Heath ZED10FX 10 Channel Multipurpose Mixer With USB And FX

Item
ALLZED10FX

h m s

free-shipping-icon
In Stock!Order now!
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    Rock Now Pay LaterRock Now Pay Later

    Get the gear you want when you want it!

    With AMS 0% interest Payment Plans, you use your own credit or debit card, and we will never charge you any interest! We will split your order total equally across the plan that you have chosen.

    Your credit card will be charged every 31 days, automatically. It’s that easy!  Some plans require a credit check.

    Free Shipping - No Extra Charge!

    Our 4 state-of-the-art, strategically located warehouses are highly efficient and allow us to ship your gear in record time - and most orders will arrive at your door within 2 days for free. Shortly after you place your order, a Ship Confirmation email will arrive letting you know the order was picked, packed, and put on a truck. Full Details


    Shipping Map

    Free Extended WarrantyFree Extended Warranty

    12 Months EXTRA for Free!

    Many of our competitors charge 10% or more for an additional 12 months of warranty on the products they sell. AMS offers this exclusive benefit to our valued customers at no extra charge. Thousands of items on our site and in our catalog carry the "Gold Lock Extended Warranty" icon. It means you get the manufacturer's full warranty plus 12 additional months, FREE!!!

    45 Day Money Back Guarantee45 Day Money Back Guarantee

    Our 45 day return policy allows you to buy with confidence at AMS! If you are not completely satisfied with any item* purchased from AMS, return it to us within 45 days of the shipping date, and we will refund your money or help you with an exchange. That's always been our policy, and now we've added the ease of Electronic Return Labels!

    Canadian Shipping Information

    Welcome Canadian musicians! Buying your gear from AMS is as easy as going to a local music store, with more selection and more than competitive prices!

    Items with this logo are eligible to ship to Canada. Please note that you will be responsible for payment of brokerage fees, duties and other import taxes applicable to your order.

    NOTE: Free shipping offers do not apply to Canadian orders. Please be aware of custom fees - such as taxes and duties - when your order arrives. Since these fees vary from location to location, CUSTOMS FEES ARE NOT INCLUDED IN SHIPPING CHARGES. Please check with your local customs office for more information on the fees in your areas. Refusal to pay these fees will result in an undeliverable order. If returned, we do not refund shipping charges and may assess restocking fees to cover return shipping expenses.

    Non Factory Sealed Items

    Non Factory Sealed are items that have been opened but are in perfect physical condition such as customer returns, open box for product photos/videos, demo stock, etc. They have been carefully inspected and repacked by qualified AMS employees to help ensure your satisfaction, allowing you to get great gear at a discounted price. They include all components, manuals and the full Manufacturer's warranty unless otherwise stated, along with the AMS 45-day Money-Back Guarantee. Special offers, promotions and rebates may not apply. The following manufacturers do not offer a warranty on Non-Factory Sealed items: Casio, Ampeg, Avalon, Chauvet, Electro-Voice, Ibanez, Mackie, Martin, Peavey

    Minor Blemished Product

    Minor Blemished Products are items that have been returned in excellent condition with very minor cosmetic blemishes, allowing you to get great gear at a discounted price. In fact, many times our customers have difficulty finding the minor blemishes at all! These products are 100% inspected and tested to guarantee functionality. They include all components, manuals and the full Manufacturer's warranty unless otherwise stated, along with the AMS 45-Day Money-Back Guarantee to ensure your satisfaction. Special offers, promotions and rebates may not apply. The following manufacturers do not offer a warranty on Minor Blemished products: Casio, Ampeg, Avalon, Chauvet, Electro-Voice, Epiphone, Gibson, Ibanez, Kramer, Mackie, Maestro, Mesa, Peavey, PreSonus, Steinberger, Tobias

    AMS AgentAMS Agent

    Have questions, found a better price?
    Talk to a sales specialist!

    800-319-9043

    Offering several FX with tap tempo operation, the ZED 10FX takes the ZED 10 even further with shimmering reverb, delays, with even chorus and flange effects to enhance your overall sound. Perfect for small band mixing, the ZED 10FX is portable enough for live applications, but versatile enough for live and studio recording.

    Plug guitars directly into the mixer with the specially designed high-impedance inputs, or connect your keyboard or MP3/CD media player through the two stereo inputs. Equipped with professional XLR main stereo outputs and a flexible monitoring section with headphone and speaker feed outputs.

    Allen and Heath ZED 10FX Features

    • 4 mic/line inputs, 2 with Class A FET high impedance inputs
    • Neutrik mic XLR and Neutrik 1/4 inch jacks
    • 3 band EQ with MusiQ
    • 2 auxes
    • Sound image pan
    • Illuminated PFL indicator
    • Stereo returns & playback
    • All inputs with level control
    • 12 bar meters
    • Professional FX
    • Responsive 3-band, swept mid EQ with MusiQ
    • 2 stereo sources with MP3 player compatibility
    • Separate 2-track record outputs
    • Stereo playback input for 2-track replay
    • XLR main stereo outputs with inserts
    • Comprehensive monitoring
    • Configurable USB stereo audio in/out
    • Stereo monitor outs
    • 48V microphone phantom power
    • DI level switching for sub mixing

    What's great about the ZED 10FX
    ZED’s are great for live mixing! Their layout makes them very easy to use and easy to achieve a great sound. They are also perfect for recording, either a live show or an audio project at home can be built up track by track using the USB digital audio interface.


    The flexibility and quality of these mixers make them stand out from the crowd. You can plug your guitars or instruments straight into the class A discrete FET high impedance inputs, cater for up to four microphones, two stereo sources with MP3 player compatibility, separate 2-track record outputs and a stereo playback input for 2-track replay or perhaps interval music from a CD player, XLR main stereo outputs with inserts, comprehensive monitoring with headphones and separate monitor speaker outputs, 48V microphone phantom power, DI level switching for sub mixing, and not least of all, the same digital effects algorithms as those used on our flagship digital consoles costing 150 times as much!

    Inputs
    One of the great things about the ZED series is the number and variety of things you can plug in. In addition to the sixteen mono channels there are two dual stereo channels, each with a main stereo input on jack sockets and with additional inputs on phono sockets. the USB return can be selected to one of the additional inputs so that it feeds either the main LR bus or the stereo channel.

    Guitar DI
    In place of the DuoPre, the ZED 10FX has pre-amps similar in design to the MixWizard range of mixers, but with a twist! Inputs 3 and 4 have a high impedance jack input capable of taking either a normal line level or a low level input from a guitar pickup.

    The redesigned inputs have been crafted with the aim of replicating the sound of a classic guitar or instrument tube pre-amp in a combo or head amp. An extremely high input impedance ensures loading on pick-ups is minimal and a Class A FET (field effect transistor) circuit powered from 48V is employed to give the valve-like gain stage. There is a gain Boost switch associated with the guitar inputs which boosts gain by 26dB to cater for instruments with very low level outputs and the overdrive characteristics of the guitar inputs are very similar to a valve (tube) circuit, being asymmetric and soft. All this makes for a wonderfully natural sound to be reproduced from the instrument, full of warmth and character.

    EQ section
    ZED 10FX is equipped with a responsive 3-band EQ with MusiQ, an optimised slope (or Q factor) for equalising individual instruments.

    Record Bus
    A separately switched stereo bus can be routed to from any channel creating a selective recording bus, monitoring bus or stereo clean feed output. You can even route just the effects processor output to this bus and use the mixer as a high end effects unit.

    USB audio flexibility
    Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way we have implemented this on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it! Quality audio to and from your PC or Mac. Three switches provide different send/return configurations for recording, playback and utilising external FX.

    Build
    The ZED 10FX has been designed using individual vertically mounted circuit boards with each rotary control fixed with a metal nut to the front panel - making a much more robust product that will resist damage and give years of reliable use.

    CALIFORNIA PROPOSITION 65 WARNING

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Shop Similar Models

    Allen & Heath ZED10FX 10 Channel Multipurpose Mixer With USB And FX Specifications

    Allen & Heath ZED10FX 10 Channel Multipurpose Mixer With USB And FX Specifications
    Product SpecificationsAllen and Heath Zed 10FX USB Mixer Specifications

    Input

    • Mono channel
      • XLR Input: -10 to –60dBu for nominal (+11dBu in max)
      • Line Input (Jack socket): +10 to –40dBu (+31dBu maximum)
    • Stereo Input: Jack or phono sockets
      • 0dBu nominal (control = Off to +15dB)
    Output
    • L/R Outputs: XLR
      • Normal/DI out 0dBu/-30dBu +21dBu/-9dBu maximum.
    • Aux and FX Outputs: Jack sockets
      • 0dBu nominal. +21dBu maximum.
    • Record and Monitor Outputs: phono sockets
      • 0dBu nominal. +21dBu maximum.
    Frequency Response
    • Mic in to Mix L/R Out: 30dB gain:
      • +0.5/-1dB 10Hz to 30kHz.
    • Line in to Mix L/R out: 0dB gain
      • +0.5/-1dB 10Hz to 25kHz
    • Stereo in to Mix L/R out: +0.5/-1dB 10Hz to 30kHz
    THD+n
    • Mic in to Mix L/R Out:
      • 10dB gain, 1kHz: +10dBu out 0.002%
      • 30dB gain, 1kHz: 0.01%
    • Line in to Mix L/R out: 0dB gain
      • 0dBu 1kHz 0.003%
    • Stereo in to Mix L/R out: 0dB gain
      • +10dBu 1kHz 0.002%
    • Guitar Input to Mix L/R Out: 0dBu
      • Boost OUT: 0.015%
      • Boost IN: 2% Second Harmonic
    Headroom
    • Analog Headroom from nominal (0Vu): 21dB
    • USB in and out headroom from nominal (0Vu): 14dB
    Noise
    • Mic Pre EIN @ max gain 150R input Z 22-22kHz: -127dBu
    • Mix L/R out, L/R faders = 0, Levels min, 22-22kHz: -96dBu
    • Mix L/R out, L/R faders = 0, Levels min, 22-22kHz: -96dBu
    USB Audio CODEC (Coder/Decoder)
    • USB Audio In/Out: USB 1.1 compliant 16bit.
    • Sample Rate: 32, 44.1, or 48kHz
    Physical
    • Dimensions (LxHxD): 13.2 x 3.7 x 10.8 inches (336 x 95 x 275 mm)
    • Weight: 7.3 lbs (3.3 kg)
