Allen & Heath ZED12FX 12 Channel Multipurpose Mixer With USB And FX

Name: Allen & Heath ZED12FX 12 Channel Multipurpose Mixer With USB And FX
Brand: Allen & Heath
SKU: ALL-ZED12FX
Price: 729.99 USD
Availability: InStock
Rating: 5.00 (7 reviews)

Item

ALLZED12FX

$729.99 $899.99 Save $899.99

h m s

Seen it for less?

Have questions, found a better price?
Talk to a sales specialist!

800-319-9043

Skip to the end of the images gallery

Skip to the beginning of the images gallery

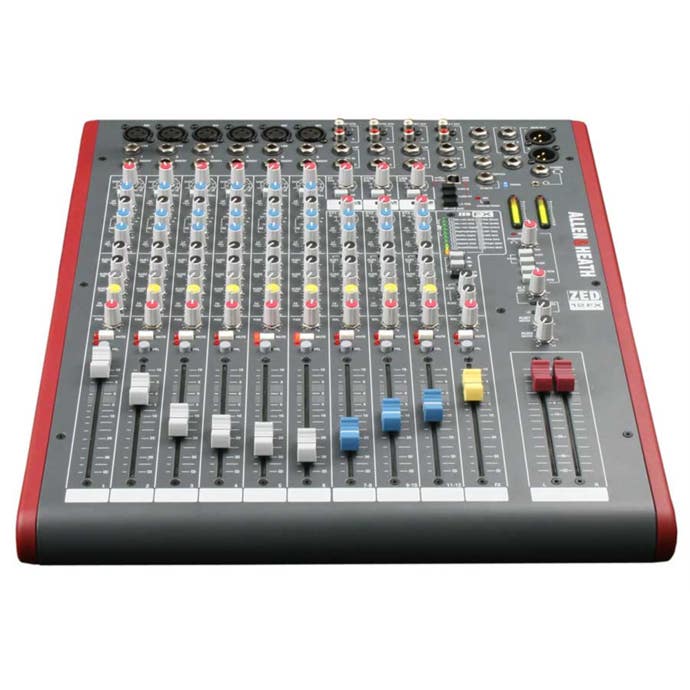

Allen & Heath ZED12FX 12 Channel Multipurpose Mixer With USB And FX

Frequently Bought Together

Allen & Heath ZED12FX 12 Channel Multipurpose Mixer With USB And FX

$729.99

+

CBI MLN Microphone Cable 3 Foot

$20.99

+

Gator GMIXERBAG2020 Padded Nylon Mixer and Equip Bag

$69.99

=

$820.97

Overview

The Allen and Heath ZED 12FX USB Mixer provides 12 audio channels including 6 DuoPreTM mic pre-amps for unsurpassed quality in its class.
In addition to the DuoPreTM mic pre-amps, 100mm faders and MusiQ EQ section which are shared with the whole ZED range, the ZED FX has 16 unique effects, designed by the Allen and Heath DSP team.

Allen and Heath ZED 12FX Features

Insert points
High pass filter
Stereo imaging control on every channel
3-band EQ with swept mid
4 auxiliary sends (2 pre, 2 post)
Global 48V phantom power
3 dual stereo inputs with 2-band EQ
Peak and signal indication on every channel
Configurable USB stereo audio in/out
Master level controls on all outputs
Easy to use layout – all connections and controls on top surface
channel mute switches
stereo return
2-track return
Advanced monitoring facilities
1/4-inch and 3.5mm headphones outputs
stereo record out
alternative stereo out
mono sum of LR output
12-bar LR meters
master controls for aux 1 and 2

ZED FX are easily controlled using 3 buttons and 9 LEDs. Quickly tap the ideal delay time or dial-in the perfect amount of reverb on the lead vocal. One-stop navigation and editing… In fact, just as easy as your effects pedals. Hold down the TAP button and press the up or down button to alter the effects parameter, for example on patch (9) Plate, this would adjust the decay length. The ZED FX is designed to fulfill all the functions a small band would need without their own sound engineer. The layout and features have been arranged to be logical and instantly recognizable at a dark gig. The ZED 12FX is a mixer you can trust to perform.

The USB audio interface, with its uniquely flexible capability, allows different signals to be sent to USB, from LR or from selected aux buses. The USB return signal can be routed straight to the LR mix or to a stereo channel. The connectors are placed on the top surface for easy plugging and patching, and the construction, with individual circuit boards firmly nutted to the top panel, is as rock solid as Allen and Heath’s top of the range ML Series mixers.

Internal FX
16 separate effects have been crafted into the ZED-FX range. These include Delay and Reverb, Ping-Pong delay, a selection of reverbs with different room/hall/arena properties, a flanger and a chorus. All have been designed to complement the material the engineer is working with. Each of the effects has a parameter which can be altered: pre-delay can be adjusted, room sizes tweaked, and flanger speed dialled-in. Five of the effects can have their tempo tapped in, and the output auditioned by the FX PFL.

DuoPreTM
Based on the proven pre-amps from the hugely successful PA series, the ZED series has new DuoPreTM pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge - 69dB of range to be exact - and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input.

USB audio flexibility
Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way we have implemented this on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it! Quality audio to and from your PC or Mac. Three switches provide different send/return configurations for recording, playback and utilising external FX.
