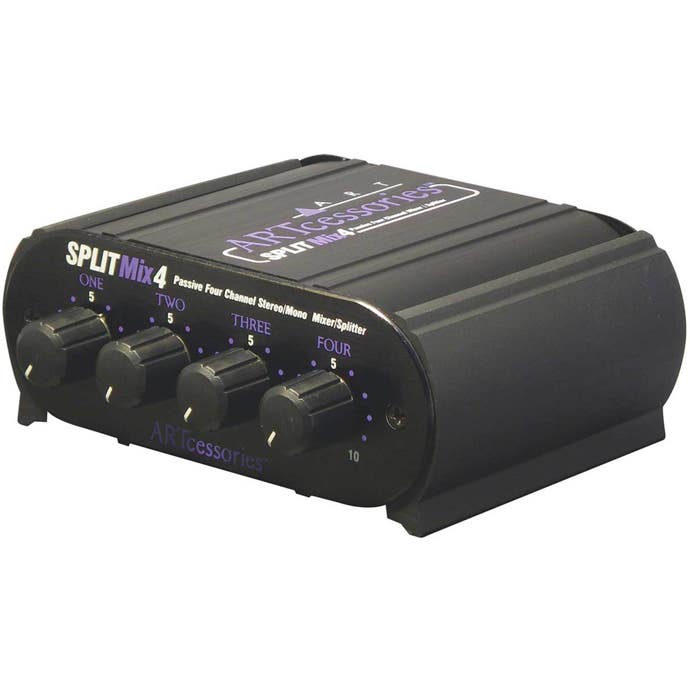

    The fully passive design of the SPLITMix4 has no active circuitry to add noise or distortion, and virtually any signal level can be handled. The SPLITMix4 is a fully passive hybrid mixer that offers a wide variety of configurations.

    Mix 4 stereo input channels down to 1 stereo output, split a stereo input signal to distribute 4 stereo output channels, or combine the configurations for a wide range of applications. You can even configure the SPLITMix4 as 4 stereo input channels thru 4 independent level attenuators to 4 stereo output channels.

    ART SPLITMIX4 Passive Four Channel Stereo / Mono Mixer / Splitter Features
    • Four Channel Passive Splitter/Mixer
    • Four Stereo Input Channels
    • Stereo Output
    • Independent stereo level controls are provided on each channel
    • Passive Design (No Power Supply Required)
    • Over 90dB of Attenuation
    Independent stereo level controls are provided on each channel. All 1/4-inch connections are stereo TRS (Tip, Ring, Sleeve) and all channel connections have intelligent switching to allow for a wide variety of configurations. Plugging into a mix input channel removes it from the splitter bus, and plugging into a splitter output channel removes it from the mix bus. Stereo or mono operation is determined by the type of 1/4-inch plug and cabling that you use.

    The fully passive design of the SPLITMix4 has no active circuitry to add noise or distortion, and virtually any signal level can be handled. The Level attenuators cover a wide range and offer over 90dB of attenuation and channel isolation. The SPLITMix4 is designed primarily as a line level device with medium input and output impedances.

    CALIFORNIA PROPOSITION 65 WARNING

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Shop Similar Models

    ART SPLITMIX4 Passive Four Channel Stereo / Mono Mixer / Splitter Specifications

    ART SPLITMIX4 Passive Four Channel Stereo / Mono Mixer / Splitter Specifications
    Product SpecificationsART SPLITMIX4 Passive Four Channel Stereo / Mono Mixer / Splitter Specifications
    • Frequency Response: 20Hz - 20kHz, +/-1dB
    • Total Harmonic Distortion: <0.005% @ 1kHz (typical)
    • Phase Shift: <10 degrees @ 20kHz
    • Input Impedance: 25k -100k Ohms
    • Ouput Impedance: 1k - 4k Ohms
    • Insertion Loss: 12dB (typical)
    • Connectors: 1/4-inch TRS stereo
    • Maximum Attenuation: > 90dB (typical)
    • Channel Isolation: > 90dB (typical)
    • Power Requirements: Fully Passive
    • Dimensions: 1.85" x 4.6" x 4.1" (47mm x 117mm x 104mm)
    • Weight: 0.84 lbs (0.38 kg)
