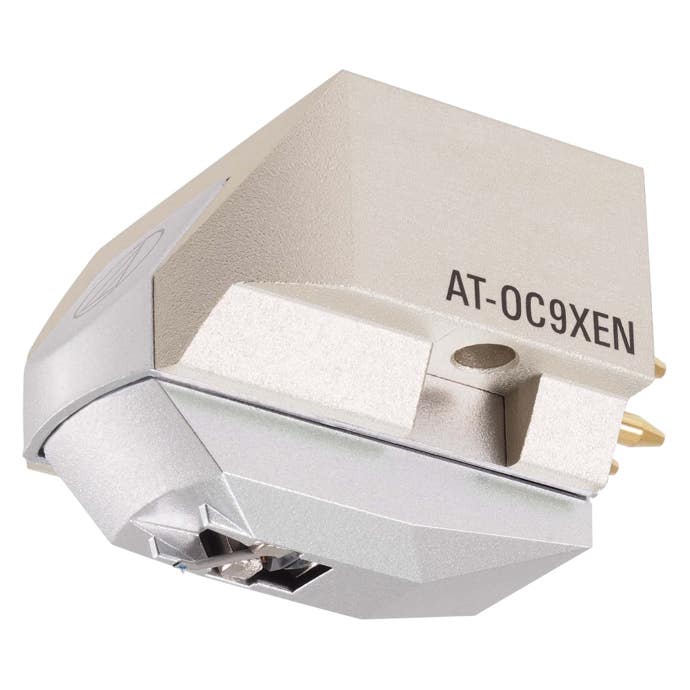

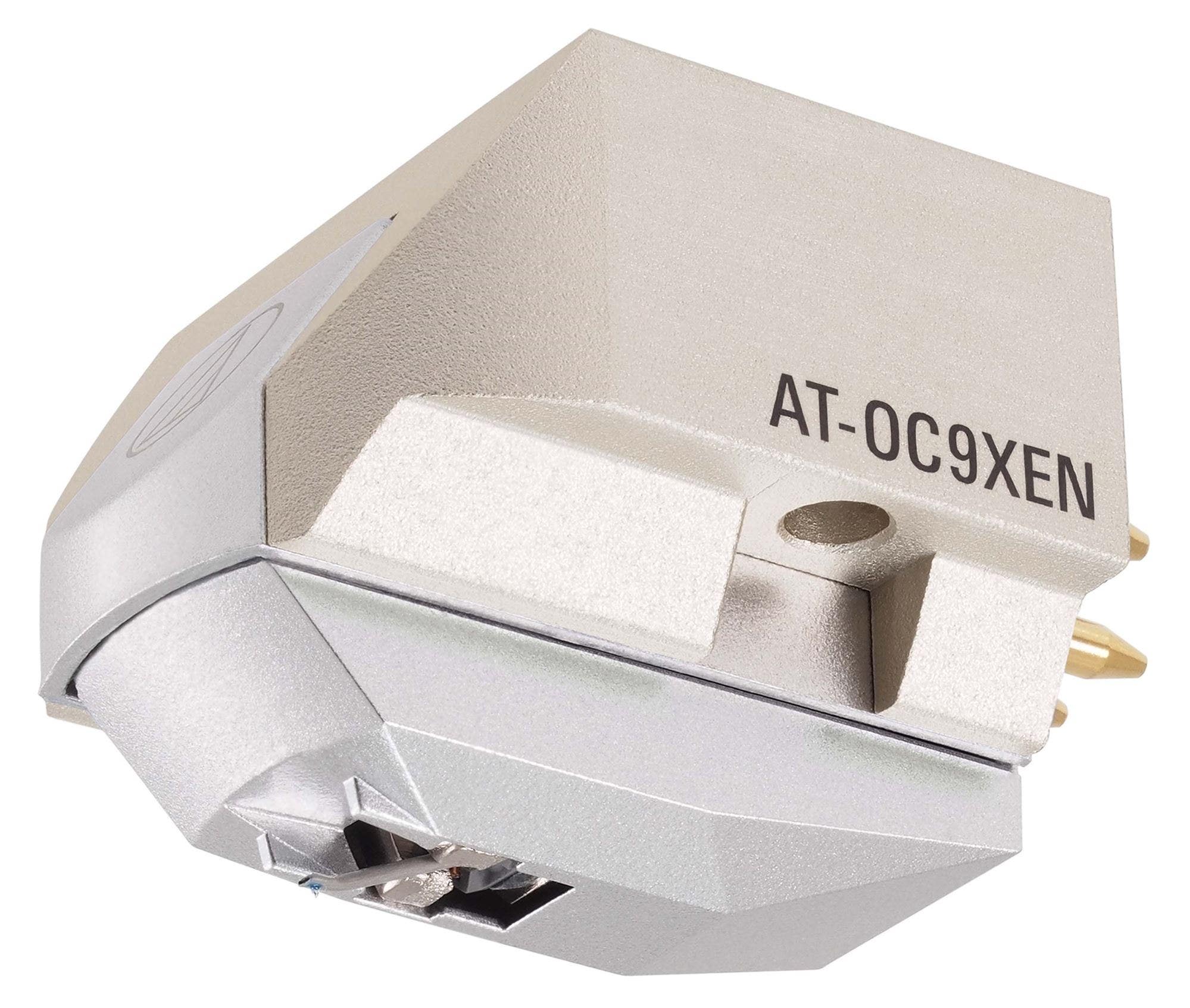

    The AT-OC9XEN Dual Moving Coil cartridge with nude elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and pure iron yoke that increase the magnetic energy, and the low-mass nude elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

    Audio-Technica AT-OC9XEN Dual Moving Coil Cartridge Features
    • Dual Moving Coil design, featuring independent coils for both left and right channels, provides outstanding channel separation
    • The coils are aligned in a reverse V-shaped formation, which exerts less pressure on the stylus, thereby minimizing distortion
    • The cartridge body is pre-threaded, enabling it to be mounted onto the headshell or integral tonearm with just two screws – no nuts required
    • Features low mass nude elliptical stylus and aluminum cantilever
    • A neodymium magnet and pure iron yoke provide increased magnetic energy
    • Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction
    • Pure copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer

    CALIFORNIA PROPOSITION 65 WARNING

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Shop Similar Models

    Audio-Technica AT-OC9XEN Dual Moving Coil Cartridge Specifications

    Audio-Technica AT-OC9XEN Dual Moving Coil Cartridge Specifications
    Product SpecificationsAudio-Technica AT-OC9XEN Dual Moving Coil Cartridge Specifications
    • Type: Dual Moving Coil
    • Body Material: Aluminum
    • Frequency Response: 20-30,000 Hz
    • Channel Separation: 25 dB (1 kHz)
    • Vertical Tracking Angle: 20°
    • Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
    • Recommended Load Impedance: Min. 100 ohms (when head amplifier is connected)
    • Coil Impedance: 12 ohms (1 kHz)
    • DC Resistance: 12 ohms
    • Coil Inductance: 25 mH (1 kHz)
    • Output: 0.35 mV (at 1 kHz, 5 cm/sec)
    • Channel Balance: 1.5 dB (1 kHz)
    • Stylus Shape: Elliptical nude
    • Stylus Type: Nude square shank
    • Stylus Curvature Radius: 0.3 x 0.7 mil
    • Cantilever: Aluminum pipe
    • Static Compliance: 20 x 10-6 cm/dyne
    • Dynamic Compliance: 9 x 10-6 cm/dyne (100 Hz)
    • Wire Used for Coil: PCOCC
    • Terminal Pins: Brass
    • Mount: Half-inch
    • Weight: 7.6 g (0.3 oz)
    • Dimensions: 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.7 mm (1.01") D
    • Accessories Included:
      • Non-magnetic screwdriver
      • 2 washers
      • Cartridge installation screws (5 mm × 2, 8 mm × 2, 10 mm x 2, 12 mm x 2)
      • Plastic protector
      • Brush
    • Mounting Feature: Threaded body
    • moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
