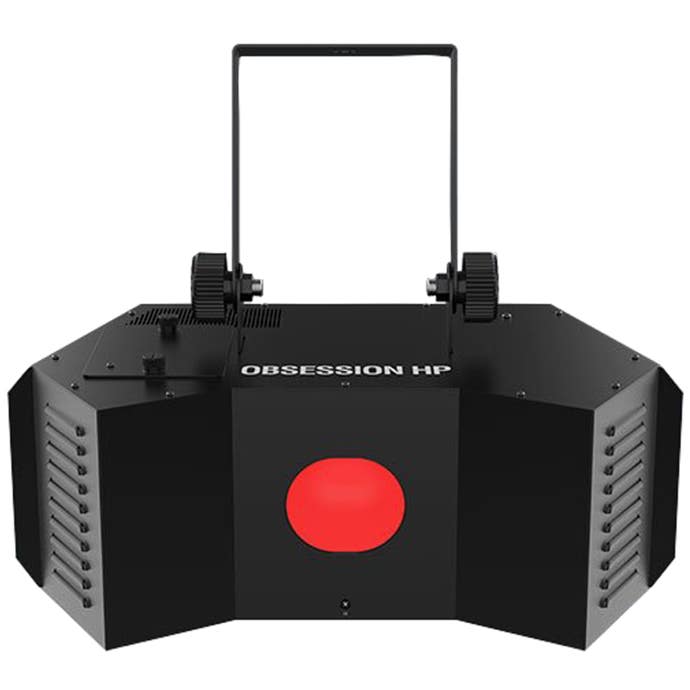

    Create eye-popping, animated gobo light shows with Obsession HP, a compact LED effect light fitted with a 100W LED that projects multi-colored, rotating gobos. Obsession HP’s design power and flexibility reaches new heights because gobos are interchangeable and the onboard mirror dish and separate color and gobo wheels easily generate complex lighting looks. Generate a synchronized show in Master/Slave mode with up to 2 units and save time running cables and extension cords by power linking multiple units. Obsession HP is compatible with IRC-6 for flexible control over all features and fits best in the CHS-40 VIP Gear Bag.
    Shop Similar Models

    Chauvet DJ Obsession HP Effect Light Specifications

    Chauvet DJ Obsession HP Effect Light Specifications
    Product SpecificationsChauvet DJ Obsession HP Effect Light Specifications
    • DMX Channels: 2 or 8
    • DMX Connectors: 3-pin XLR
    • Colors: 6 + white, split colors, continuous scroll at variable speeds
    • Gobos: (7 metal), rotating, indexing, interchangeable, continuous scroll at variable speeds
    • Light Source: 1 LED (cool white) 100 W, (4 A), 50,000 hours life expectancy
    • Strobe Rate: 0 to 20 Hz
    • PWM Frequency: 4 KHz
    • Coverage Angle: 116°
    • Power Linking: 3 units @ 120 V; 6 units @ 230 V
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power and Current:
      • 176 W, 2.2 A @ 120 V, 60 Hz
      • 171 W, 1.3 A @ 230 V, 50 Hz
    • Gobo Size: 18.6 mm outside, 12 mm image, 5 mm max thickness
    • Weight: 10.2 lb (4.7 kg)
    • Size: 14.96 x 8.26 x 12 in (380 x 233 x 305 mm)
    • Approvals: CE
    • Optional Controller: IRC-6
