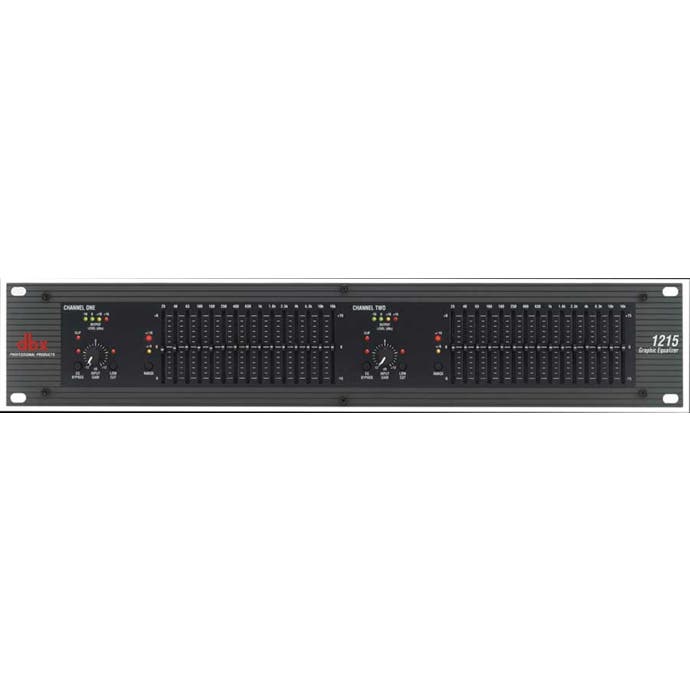

    The DBX 1215 Dual 15 Band Graphic Equalizer was designed to meet the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls. The DBX 1215 graphic EQ provides standard features like dual channels, 15 2/3 octave bands, ISO frequency centers, +/-12 dB input gain range, and switchable 40Hz/18 dB per octave low-cut filters.

    DBX 1215 Dual 15 Band Graphic Equalizer Features:
    • Switchable boost/cut ranges of ±6 or ±15 dB
    • Electronically balanced/unbalanced inputs
    • Servo balanced/unbalanced inputs
    • RF filtered inputs and outputs
    • XLR, Barrier Strip, and 1/4 inch TRS connectors
    • -12dB/+12dB input gain range
    • 18dB/octave 40Hz Bessel low cut filter
    • Chassis/signal ground lift capability
    • Internal power supply transformer
    • Power off hardwire relay bypass with 2 second power up delay
    Other features on this dual 15 band equalizer include 45 mm faders, selectable +/-6dB or +/-15dB boost/cut range, XLR and 1/4 inch TRS connectors, balanced inputs and outputs, and chassis/signal ground lift capabilities for quick hum isolation.




    Shop Similar Models

    dbx 1215 Dual Channel 15 Band 2/3 Octave Graphic Equalizer Specifications

    dbx 1215 Dual Channel 15 Band 2/3 Octave Graphic Equalizer Specifications
    Product SpecificationsDBX 1215 Dual 15 Band Graphic Equalizer Specifications

    Input
    • Connectors: 1/4-inch TRS, female XLR (pin 2 hot), and barrier terminal strip
    • Type: Electronically balanced/unbalanced, RF filtered
    • Impedance: Balanced 40 kOhms, unbalanced 20 kOhms
    • Maximum Input Level: >+21dBu balanced or unbalanced
    • CMRR: >40dB, typically >55dB at 1kHz
    Outputs
    • Connectors: 1/4 inch TRS, male XLR (pin 2 hot), and barrier terminal strip
    • Type: Impedance balanaced/unbalanced, RF filtered
    • Impedance: Balanced 200 ohm, unbalanced 100 ohm
    • Maximum Output Level:
      • >+21dBu balanced/unbalanced into 2 kOhm or greater
      • >+18dBm balanced/unbalanced (into 600 ohms)
    System Performance
    • Bandwidth: 20Hz to 20kHz, +0.5/-1dB
    • Frequency Response: <10Hz to >50kHz, +0.5/-3dB
    • Dynamic Range:
      • +/-15dB range: 109dB
      • +/-6dB range : 115dB
    • Signal to Noise:
      • +/-15dB range: 90dB
      • +/-6dB range : 97dB
    • THD + Noise: <0.005%
    • Interchannel Crosstalk: <-80db, 20Hz to 20kHz
    Function Switches
    • EQ Bypass: Bypasses the graphic equalizer section in the signal path
    • Low Cut (recessed): Activates the 40Hz 18dB/octave Bessel high-pass filter
    • Range (recessed): Selects either +/- 6dB or +/- 15dB slider boost/cut range
    Indicators
    • Output Level Meter: 4 LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu
    • EQ Bypass: 1 LED: Red
    • Clip: 1 LED: Red
    • Low Cut: 1 LED: Red
    • +/-6dB: 1 LED: Yellow
    • +/-15dB: 1 LED: Red
    Power Supply
    • Operating Voltage: 100VAC 50/60Hz, 120VAC 60Hz 230VAC 50/60Hz
    • Power consumption: 24 watts
    • Main Connection: IEC receptacle
    Physical
    • Dimensions (H x W x D): 3.5 x 19 x 7.9 inches (8.9 x 48.3 x 20.1 cm)
    • Weight: 8.5 pounds (3.9 kg)
