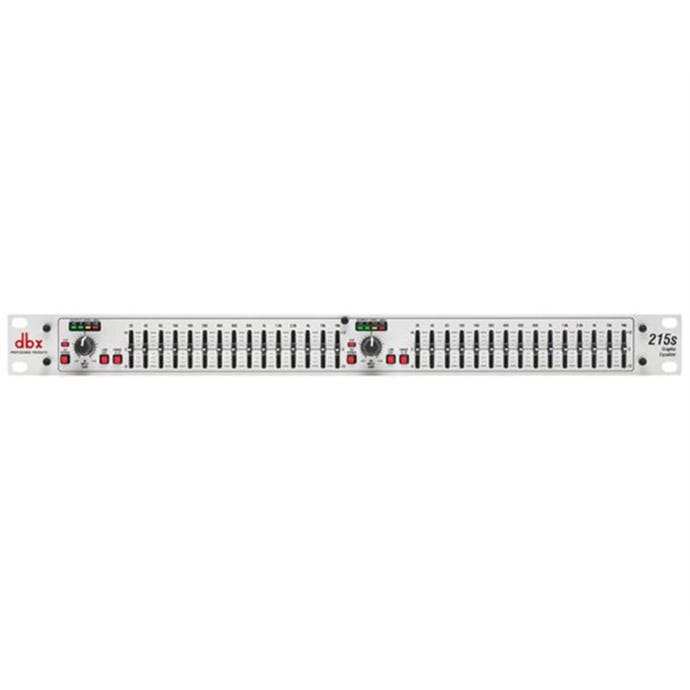

dbx 215S Dual Channel 15 Band 2/3 Octave Graphic Equalizer

dbx 215S Dual Channel 15 Band 2/3 Octave Graphic Equalizer

5
4 Reviews
$280.00
Call In for Savings! 800-458-4076

Eligible to earn $14.00 for this purchase

OR

6 Payments of $46.67
No Credit Check

ConditionsNew
New
In Stock!

h m s

Get It August 22nd
free-shipping-icon
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    AMS Agent

    Have questions?
    Talk to a sales specialist!

    800-319-9043

    Frequently Bought Together
    =
    $318.98
    8 Payments of $39.87
    The DBX 215S Dual Channel 15 Band Graphic Equalizer meets the needs of the most demanding sound reinforcement environments, while offering the simplicity of straight forward controls. The DBX 215S graphic equalizer includes two 15 band channels of 2/3-octave equalization, +/-12 dB input gain, switchable +/-6 dB or +/-12 dB boost/cut range, 20mm nonconductive sliders, an intuitive user interface, and output level metering.

    DBX 215S Dual Channel 15 Band Graphic Equalizer Features:
    • Dual 15 band, 2/3 octave Constant Q frequency bands
    • Switchable boost/cut ranges of +/-6 or +/-12 dB
    • Front panel bypass switch
    • +/-12 dB input gain range
    • 4 segment LED ladders for monitoring output levels
    • XLR and TRS Inputs and Outputs
    • Frequency Response of 50kHz
    • Dynamic range of greater than 108dB
    From its extended 10Hz to 50kHz frequency response and 112 dB dynamic range to the quality componentry and meticulous attention to detail, the 215S offers exceptional sound and rugged reliability that guarantees you will always sound your best.

    Sure to find a home in the studio, on tour and with installed sound venues, the DBX 215S graphic equalizer is destined to take its rightful place in the lineage of great dbx signal processors that are the professional's choice in signal processing. With such affordable quality, there's no longer any excuse for compromising your sound.


    CALIFORNIA PROPOSITION 65 WARNING

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Shop Similar Models

    dbx 215S Dual Channel 15 Band 2/3 Octave Graphic Equalizer Specifications

    Item #:DBX 215SV
    Manufacturer Part Number:dbx s15svvm
    UPC:691991401220
    Product SpecificationsDBX 215S Dual Channel 15 Band Graphic Equalizer Specifications
    • Inputs:
      • Connectors: 1/4 inch TRS, female XLR (pin 2 hot)
      • Type: Electronically balanced/unbalanced, RF filtered
      • Impedance: Balanced 40k ohm, unbalanced 20k ohm
      • Max Input Level: >+21dBu balanced or unbalanced
      • CMRR: >40dB, typically >55dB at 1kHz
    • Outputs:
      • Connectors: 1/4 inch TRS, male XLR (pin 2 hot)
      • Type: Impedance balanaced/unbalanced, RF filtered
      • Impedance: Balanced 100 ohm, unbalanced 50 ohm
    • System Performance:
      • Bandwidth: 20Hz to 20kHz, +0.5/-1dB
      • Frequency Response: <10Hz to >50kHz, +0.5/-3dB
      • Dynamic Range: Typically >112dB
      • Signal-to-Noise: Typically >95dB
      • THD+Noise: <0.003%
      • Interchannel Crosstalk: <-90dB, 20Hz to 20kHz
    • Function Switches:
      • EQ Bypass: Bypasses the graphic equalizer section in the signal path
      • Low Cut: Activates the 50Hz 12dB/octave high-pass filter
      • Range: Selects either +/- 6dB or +/- 12dB slider boost/cut range
    • Power Supply:
      • Operating Voltage: 100VAC-240VAC 50/60Hz
      • Power consumption: 15W
      • Mains Connection: IEC receptacle
    • Physical:
      • Weight: 4.8 pounds (2.2 kg)
      • Dimensions(HxDxW): 1.75  x 6 x 19 inches (4.4 x 15.24 x 48.26 cm)


    dbx 215S Dual Channel 15 Band 2/3 Octave Graphic Equalizer Manuals
