dbx 266xs Dual Channel Compressor Limiter Gate

Text to Phone

DBX

dbx 266xs Dual Channel Compressor Limiter Gate

Item

DBX266XSV

$229.00 $275.09 Save $275.09

h m s

Seen it for less?

Have questions, found a better price?
Talk to a sales specialist!

800-319-9043

Skip to the end of the images gallery

Skip to the beginning of the images gallery

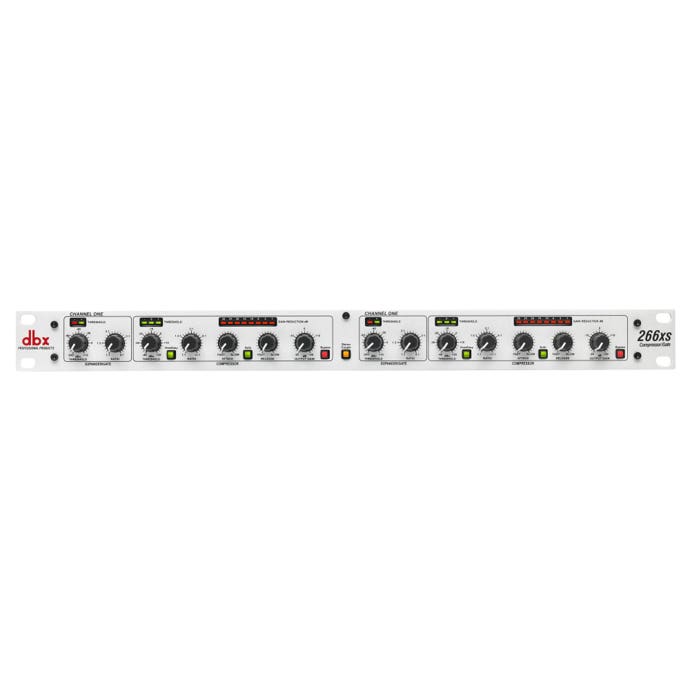

dbx 266xs Dual Channel Compressor Limiter Gate

Overview

Adding aÂ DBX 266XS Compressor/Gate to your live sound rig or studio gives you more dynamic control to help create a more polished, professional sound. Having compression in your audio chain gives you the ability to smooth out uneven levels, add sustain to guitars and fatten up your drums. It also makes it easy to bring vocals to the front of your mix - adding greater clarity and making them stand out from the surrounding instruments.

DBX 266XS Compressor/Gate Features

Error proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes
New gate timing algorithms ensure the smoothest release characteristics
Program-adaptive expander/gates
Great sounding dynamics control for any type of program material
Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup
Stereo or dual-mono operation
Balanced inputs and outputs on 1/4 inchÂ TRS and XLR connectors
Side Chain insert
ClassicÂ DBX Auto mode

DBX knows compressors...after all they invented them! The 266XS is the latest in a long line of the world's most successful compressors from the inventors of the technology. Its patented Overeasy compression technology provides smooth and musical performance while the AutoDynamic attack and release controls, found only on dbx compressors, puts great sound within easy reach. The 266XS can operate in stereo or dual-mono modes, has true RMS power summing and features quality XLR and 1/4 inchÂ TRS inputs and outputs. It cuts no corners on visual feedback with gain reduction metering and easy-to-read backlit switches.

CALIFORNIA PROPOSITION 65 WARNING

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

See all items from DBX

Shop Similar Models

DBX

About the Manufacturer

Phone: 844-776-4899

Warranty: 2 Years

Specifications

dbx 266xs Dual Channel Compressor Limiter Gate Specifications

dbx 266xs Dual Channel Compressor Limiter Gate Specifications
Product Specifications	DBX 266XS Compressor/Gate Specifications Inputs: Connector: 1/4 inchÂ TRS, female XLR (pin 2 hot) Type: Electronically balanced/unbalanced, RF filtered Impedance: 40k ohmÂ balanced, 20kÂ ohmÂ unbalanced Maximum Level: >+22dBu Balanced or Unbalanced Outputs: Connector: 1/4 inchÂ TRS, female XLR (pin 2 hot) Type: Impedance-balanced/unbalanced, RF filtered Impedance (+4dBu): 100 ohmÂ balanced, 50 ohmÂ unbalanced Impedance (-10dBu): 1kÂ ohmÂ balanced, 500 ohmÂ unbalanced Maximum Level: >+21dBu balanced/unbalanced into 2k ohmÂ or greater >+18dBm balanced/unbalanced (into 600 ohm) Sidechain Insert: Connector: 1/4 inchÂ TRS Phone, Normalled: Ring = Output (send); Tip = Input (return) Impedance: Tip = >10k ohmÂ (Input), Ring = 2k ohmÂ (Output) Maximum Level: Tip = >+22dBu (Input), Ring = >+20dBu (Output) Compression: Threshold Range: -40dBu to +20dBu Threshold Characteristic: Selectable OverEasy or hard knee Compression Ratio: 1:1 to Infinity:1 Attack Time: Scalable Program-Dependent AutoDynamic Release Time: Scalable Program-Dependent AutoDynamic Expander/Gate: Threshold Range: -60dBu to +15dBu Expansion Ratio: 1:1 to 4:1 Attack Time: <100µSec Release Time: Program-Dependent System: Bandwidth: 0.35Hz - 90kHz, +0/-3dB Frequency Response (Flat): 20Hz - 20kHz; +0/-0.5dB Noise: <-93dBu, unweighted (22kHz measurement bandwidth) THD + N: <0.2%; Any Amount of Compression at 1kHz Intermodulation Distortion: <0.2% SMPTE Dynamic Range: >114dB, unweighted Interchannel Crosstalk: <-95dB, 20Hz to 20kHz CMRR: >40dB, typically >55dB at 1kHz Stereo Coupling: True RMS Power Summing Power: Power Consumption: 15 Watts Maximum Operating Voltage: 100 VAC 50/60Hz; 120VAC 60Hz; 230 VAC 50/60 Hz Physical: Dimensions: 1.75 x 5.75 x 19 inchesÂ (4.45x14.6x48.26cm) Weight: 4.84 lbs (2.19 kg)

Reviews

Manuals

DBX 266XS Dual Compressor/Gate Manual
