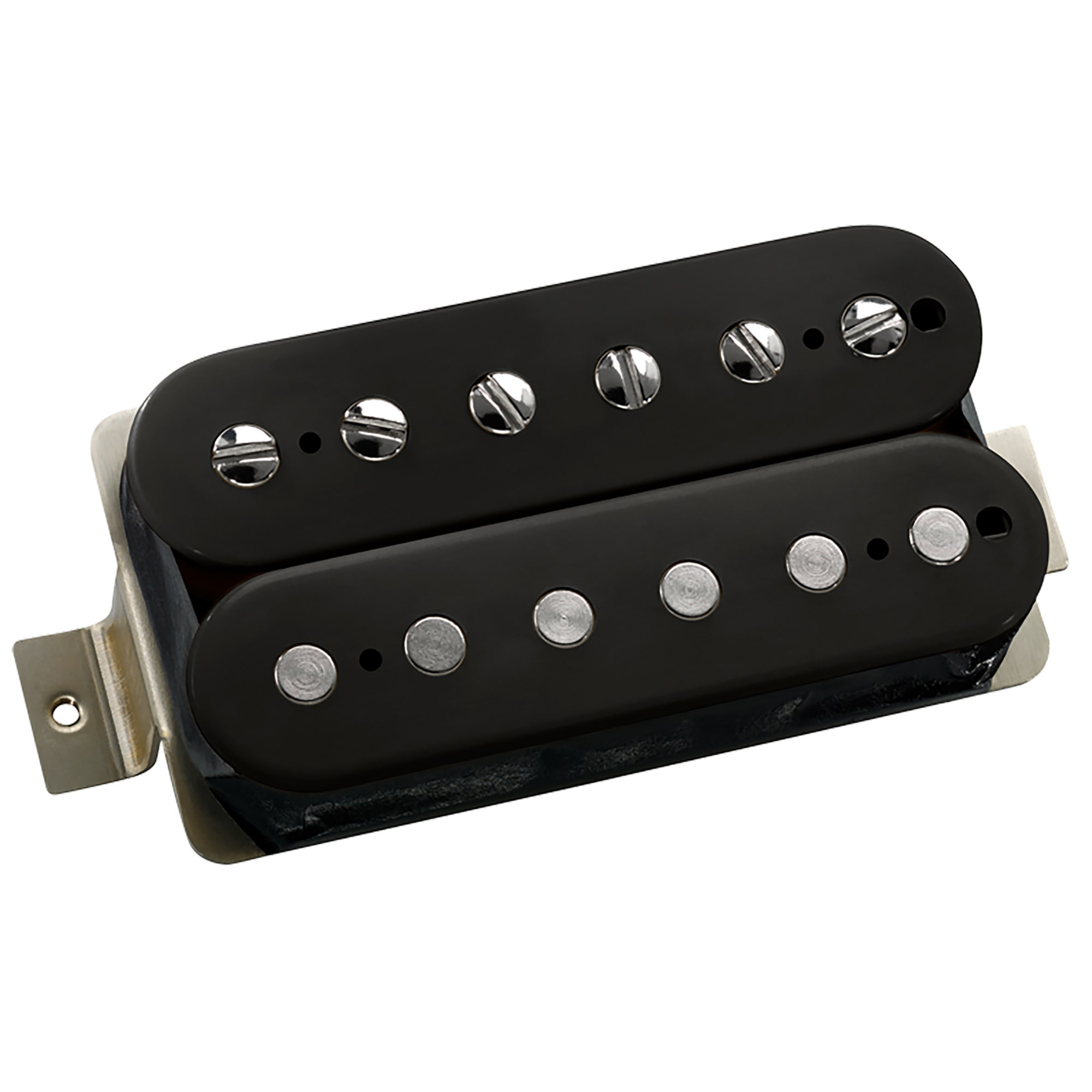

Dimarzio DP275BK PAF Bridge Pickup

These days, it seems as if everyone's looking for the legendary sound and dynamics of the original “Patent Applied For” pickups. Utilizing Larry DiMarzio's 1959 Cherry Sunburst Les Paul for reference, DiMarzio used the same materials as 1959, gifted ears, and decades of winding experience to create the new PAF 59 pickups.

Larry says the PAF 59 Neck and Bridge models were built following an “old family recipe.” We started with a 2-½-inch degaussed Alnico 5 magnet. The 42 AWG enamel wire coils are un-dipped and scatter wound. They're tuned to capture the guitar's voice and dynamics without coloring it.

The PAF 59 Neck and Bridge models feature Double Cream™ butyrate bobbins on our long-leg nickel/silver base plate just like the originals. They are also available with black or black & cream butyrate bobbins.

The PAF 59 Neck and Bridge models have the open dynamics, bright attack, smooth midrange, and rich bottom end, along with the creamy distortion of the original “Patent Applied For” pickups

Like the vintage “Patent Applied For” pickups, the PAF 59 Bridge model has perfect harmonic range with exactly the right amount of oomph. It has a subtle roll off on the top end that sweetens the highs in the bridge position.

This pickup features a subtle roll off on the top end in order to sweeten the highs in the bridge position. Combine this with the PAF® 59 Neck for the full vintage experience.

Dimarzio DP275BK PAF Bridge Pickup Features:

A recreation of the original “Patent Applied For” pickups
42 AWG enamel wire coils
Coils are un-dipped and scatter wound
Alnico 5 Magnets
Open dynamics, bright attack, smooth midrange, and rich bottom end
Subtle roll off on the top end
Perfect harmonic range with exactly the right amount of oomph
All materials are made in the U.S.A. to the tolerances of the best of the 1959 pickups

See all items from DIMARZIO

Shop Similar Models

Electric Guitar Pickups

About the Manufacturer

Phone: 718-981-9286

Warranty: 5 Years, Limited

Dimarzio DP275BK PAF Bridge Pickup Specifications

Dimarzio DP275BK PAF Bridge Pickup Specifications
Product Specifications	Dimarzio DP275BK PAF Bridge Pickup Specifications: Recommendation: Bridge (Can also be used in the neck position) Quick Connect: No Wiring: 1 Conductor Magnet: Alnico 5 Resistance: 8.5 Kohm Year of Introduction: 2017
