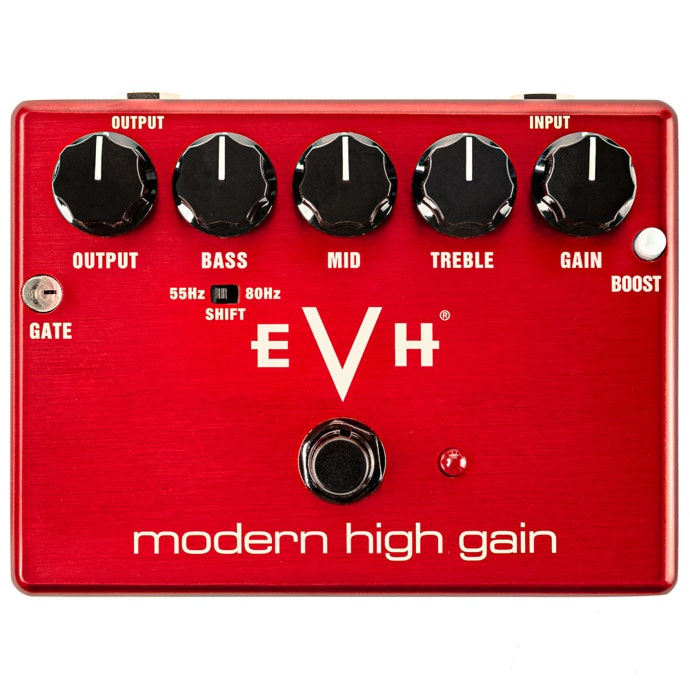

Dunlop EVH EVHMHG Modern High Gain Pedal

Unleash the full force of your rig with the MXR EVH Modern High Gain Pedal. Designed in direct collaboration with Eddie Van Halen in 2015, this powerhouse of a device delivers EVH High Gain tone in raw, uncompromised and crushing form. It’s searing, it’s intense, and it’s razor sharp.

The Output and Gain knobs allow you to balance saturation and clarity, ensuring that the heaviest riffs retain definition. Meanwhile, dedicated Bass, Mid, and Treble controls shape your tonal character with exacting precision. From crunchy syncopated rhythms to fiery, harmonically rich solos, the EVH Modern High Gain Pedal equips you to take command of any mix.

When it’s time to push your leads over the edge, the Boost switch kicks the gain up to the next level. The 55Hz/80Hz switch toggles between a fatter or punchier low end, adapting seamlessly to any setup. And for maximum clarity at cranked output and gain levels, the Noise Gate control reins your signal in with just the right amount of discipline.

Tap into the unmatchable coupling of raw power and surgical articulation with the MXR EVH Modern High Gain Pedal.

Dunlop EVH EVHMHG Modern High Gain Pedal Features:

Officially co‑designed with Eddie Van Halen to deliver authentic EVH modern high‑gain tone with uncompromising intensity
High‑gain distortion engine produces searing saturation while retaining razor‑sharp articulation and note definition
Output and Gain controls let you precisely balance aggression, clarity, and overall drive for any playing style
Three‑band active EQ with Bass, Mid, and Treble controls provides detailed tonal sculpting to cut or fill any mix
Low‑end voicing switch toggles between 55 Hz and 80 Hz for either fatter thickness or tighter punch
Boost switch adds extra gain for soaring leads and heightened aggression on demand
Built‑in noise gate reins in unwanted noise at extreme gain settings, keeping riffs tight and controlled
True hardwire bypass preserves your core tone when the pedal is disengaged
Designed to handle modern high‑output rigs while maintaining clarity, focus, and crushing impact

See all items from DUNLOP

Shop Similar Models

Dunlop Effects

About the Manufacturer

Phone: 707-745-2722

Warranty: 1 Year on Electronics

Dunlop EVH EVHMHG Modern High Gain Pedal Specifications

Dunlop EVH EVHMHG Modern High Gain Pedal Specifications
Product Specifications	Input Impedance: 740 kΩ Output Impedance: 1 kΩ *Nominal Output Level (controls at mid position): −22 dBV Maximum Output Level: 0 dBV Noise Floor (Gate Open): −76 dBV Noise Floor (Gate Closed): −93 dBV Preamp Gain Boost: +3 dB Final Gain Stage Boost: +3 dB Mid Shift Setting 1: 55 Hz, 0 dB; bandwidth reference 30 Hz Mid Shift Setting 2: 80 Hz, −3 dB relative; bandwidth reference 30 Hz Bass EQ: ±7 dB at 30 Hz Mid EQ: ±5 dB at 700 Hz Treble EQ: ±6 dB at 10 kHz Bypass Type: True hardwire bypass Current Draw (Bypassed): 15 mA Current Draw (Gate Engaged): 16.5 mA Current Draw (Boost Engaged): 20.5 mA Power Supply:** 9V DC
