The Electro-Voice ELX200 series of powered loudspeakers is a rather impressive blend of high performance and ultra-portability. Not easily achieved, to be sure - but then, EV’s veteran team of talented engineers has always gone the extra mile to offer you the highest-quality products at the best possible price.
ELX200 Series Overview
With the ELX200 Series, you’ll instantly recognize that famous Electro Voice audio quality while you enjoy versatile and accurate control of EV’s endurance-tested, proprietary components - all wrapped up in a super lightweight and very attractive package. Simply stated, the ELX200 Series does more and weighs less, making it the obvious choice for solo artists, full bands, DJs and other mobile entertainers.
ELX200-12P Highlights
The ELX200-12P by Electro-Voice is the 2nd most compact and portable model in the ELX200 Series. Standing just 24.75” tall and weighing in at under 35lbs, this little giant is easily transportable and capable of delivering up to 130 dB SPL of clean audio ranging from 51 Hz to 20 kHz (-10 dB). How is this even possible? Easy…if you’re EV!
The ELX200-12P combines high-efficiency and lightweight Class-D power amplifiers with integrated QuickSmartDSP to effortlessly and reliably produce up to 1200 watts. Incorporating transducers designed and engineered in-house by Electro-Voice (12” EVS-12M woofer, DH-1C 1” titanium compression driver), the ELX200-12P delivers an abundance of “loud and clear” - the ultimate goal for any live sound system.
Effortless and Accurate Setup
Setup of the ELX200-12P for specific applications is easy, thanks to four presets (Music, Live, Speech, Club) displayed on the large LCD screen and selectable by pushing and turning the dual-function Master Vol control. You can also adjust system-match crossovers and 3-band EQ, then store and recall your settings via five user-programmable presets. Limiter status is also easily viewable on the LCD.
Precise and Consistent Coverage
Electro-Voice’s patented SST (Signal Synchronized Transducer) waveguide design offers you enhanced acoustic performance from a small-footprint loudspeaker, allowing for a larger waveguide which is shifted forward in the cabinet to time-align the transducers. This innovative design delivers extraordinarily accurate and even coverage with a deeper, tighter bass response than you would ever expect from such a compact enclosure.

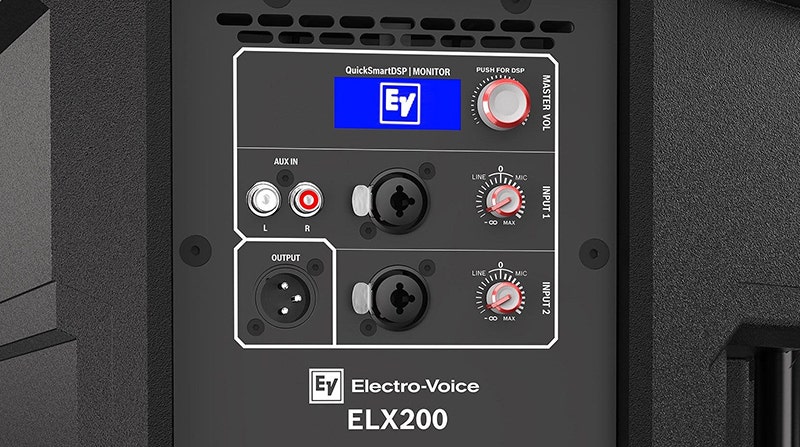

The Rear Panel
ELX200-12P features two Inputs on dual-purpose XLR/Balanced ¼” TRS jacks, each with their own Level control. Input 1 also features stereo RCA jacks for easy connection of consumer audio devices. There’s even a balanced XLR Output for daisy-chaining multiple speakers. And of course, a Master Volume knob for overall volume control.
Hi-Tech Control and Monitoring
Just about everyone has a smartphone, iPad, or other tablet these days. But can they use them to control and monitor their sound system? They could with the Electro-Voice ELX200-12P and Bluetooth’s QuickSmartMobile app for iOS or Android! Want to control your system from front-of-house? No problem. Need to quickly configure up to six ELX200 loudspeakers simultaneously? Done. You’ll even receive immediate notification in the improbable event that your system experiences critical performance issues.
Portable or Install?

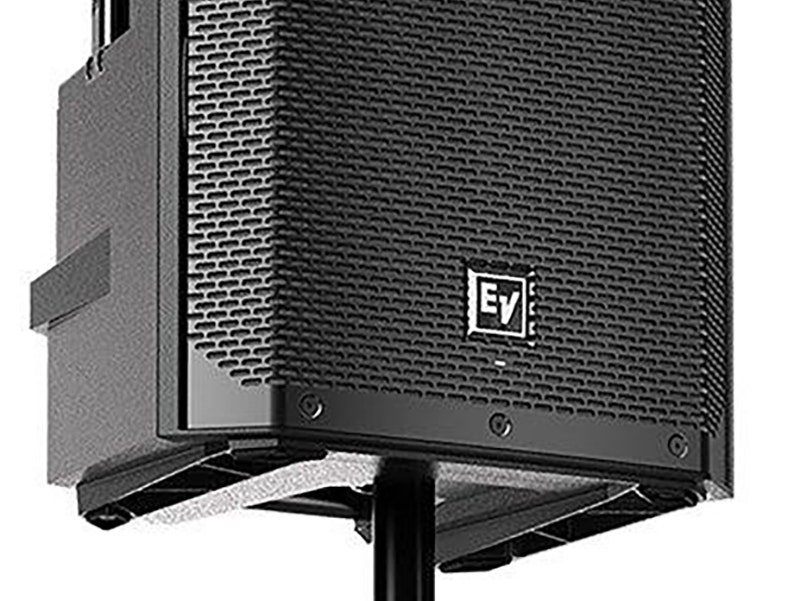

Sporting professional-grade hardware including three M10 threaded suspension points, integrated pole-mounts, and three road-tested handles for easy lifting, the Electro-Voice ELX200-12P is ready for just about any environment and/or application.
Peace of Mind
ELX200-12P is easy to carry, but its rigid construction and high-quality components ensure that you and your audience will enjoy that legendary EV sound, every time. Electro-Voice subjects their products to a rigorous 500-hour endurance test that goes far above and beyond industry norms. And with their 3-year warranty on powered speakers, EV offers you true peace of mind.
About the Manufacturer Phone: 800-289-0096
Warranty: 5 Years on Non-Powered Speakers; 3 Years on Powered Speakers; 3 Years on Electronics; 3 Years on Wired Microphones; 2 Years on Wireless Microphones
Electro Voice ELX200-12P 12" 1200 Watt 2-Way Powered Loudspeaker Specifications
Electro Voice ELX200-12P 12" 1200 Watt 2-Way Powered Loudspeaker Specifications | Product Specifications | Electro Voice ELX200-12P Powered Loudspeaker Specifications
- Connector Type: (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
- Coverage (Nominal -6 dB) H: 90 °
- Coverage (Nominal -6 dB) V: 60 °
- Crossover Frequency: 1700 Hz
- Enclosure Material: Polypropylene Composite
- Frequency Range (-10 dB): 51 Hz - 20 kHz
- Frequency Response (-3 dB): 57 Hz -16 kHz Hz
- Grill: 18 AWG steel with powdercoat
- HF Transducer: DH-1C 1-inch titanium compression driver
- LF Transducer: EVS-12M 300 mm (12 in)
- Max. SPL/1m (calc): 130 dB
- Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.8A
- Power Rating: 1200 W
- Shipping Weight: 17.7 kg
- Speaker Type: Full-Range
- Suspension: (3) M10 suspension points
- Weight Net: 15.6 kg
- Dimensions (WxHxD): 14.29 x 24.76 x 13.54 inches (363 x 629 x 344 mm)
- Woofer Size: 12 inch
|
|---|
