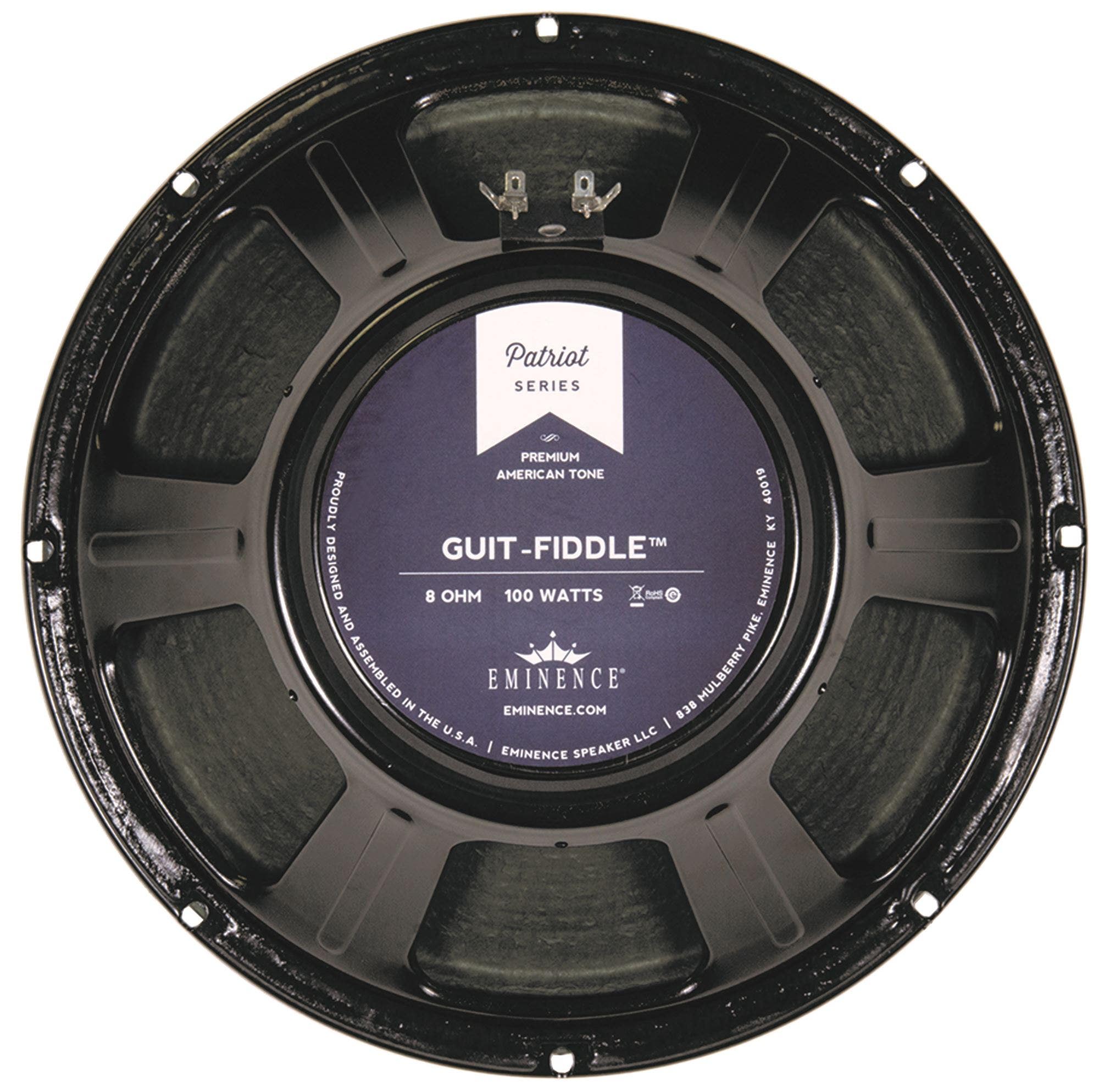

Eminence GuitFiddle Fiddle and Guitar Speaker 12" 100 Watts 8 Ohms

Item
EMIGUITFIDDLE

h m s

free-shipping-icon
In Stock!Order now!
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    0%Free ShippingSpecial ConditionsShips to Canada

    Free Shipping - No Extra Charge!

    Our 4 state-of-the-art, strategically located warehouses are highly efficient and allow us to ship your gear in record time - and most orders will arrive at your door within 2 days for free. Shortly after you place your order, a Ship Confirmation email will arrive letting you know the order was picked, packed, and put on a truck. Full Details


    Shipping Map

    Special Return Conditions

    If defective, this item must be exchanged directly through the manufacturer. It can only be returned to us if it is unopened.

    Canadian Shipping Information

    Welcome Canadian musicians! Buying your gear from AMS is as easy as going to a local music store, with more selection and more than competitive prices!

    Items with this logo are eligible to ship to Canada. Please note that you will be responsible for payment of brokerage fees, duties and other import taxes applicable to your order.

    NOTE: Free shipping offers do not apply to Canadian orders. Please be aware of custom fees - such as taxes and duties - when your order arrives. Since these fees vary from location to location, CUSTOMS FEES ARE NOT INCLUDED IN SHIPPING CHARGES. Please check with your local customs office for more information on the fees in your areas. Refusal to pay these fees will result in an undeliverable order. If returned, we do not refund shipping charges and may assess restocking fees to cover return shipping expenses.

    AMS AgentAMS Agent

    Have questions, found a better price?
    Talk to a sales specialist!

    800-319-9043
    Eminence created a 12 inch speaker voiced specifically for fiddle. Reduced bow friction noise and tame upper-mids. It’s also great for guitar if you want thick tone with warm, smooth, more mellow mids and highs.

    CALIFORNIA PROPOSITION 65 WARNING

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Shop Similar Models

    Eminence GuitFiddle Fiddle and Guitar Speaker 12" 100 Watts 8 Ohms Specifications

    Eminence GuitFiddle Fiddle and Guitar Speaker 12" 100 Watts 8 Ohms Specifications
    Product SpecificationsEminence GuitFiddle Fiddle and Guitar Speaker Specifications
    • Nominal Basket Diameter: 12", 305 mm
    • Nominal Impedance: 8 O
    • Watts: 100 W
    • Resonance: 82 Hz
    • Usable Frequency Range: 80 Hz - 4.5 kHz
    • Sensitivity*: 100.1 dB
    • Magnet Weight: 38 oz.
    • Gap Height: 0.31", 7.9 mm
    • Voice Coil Diameter: 2", 51 mm
    Thiele and Small Parameters
    • Resonant Frequency (fs): 82 Hz
    • DC Resistance (Re): 7.34 O
    • Coil Inductance (Le): 0.63m H
    • Mechanical Q (Qms): 15.49
    • Electromagnetic Q (Qes): 0.58
    • Total Q (Qts): 0.56
    • Compliance Equivalent Volume (Vas): 57.81 liters / 2.04 cu.ft.
    • Peak Diaphragm Displacement Volume (Vd): 43.09 cc
    • Mechanical Compliance of Suspension (Cms): 0.14 mm/N
    • BL Product (BL): 13.11 T-M
    • Diaphragm Mass Inc. Airload (MMs): 26 grams
    • Efficiency Bandwidth Product (EBP): 141
    • Maximum Linear Excursion (Xmax): 0.79 mm
    • Surface Area of Cone (Sd): 545.4 cm2
    Mounting Information
    • Sealed: Acceptable
    • Vented: Acceptable
    • Driver Volume Displaced: 0.071 cu.ft. / 2 liters
    • Overall Diameter: 12.17", 309.12 mm
    • Baffle Hole Diameter: 11.13", 282.7 mm
    • Front Sealing Gasket: Yes
    • Rear Sealing Gasket: Yes
    • Mounting Holes Diameter: 0.24", 6.1mm
    • Mounting Holes B.C.D.: 11.75", 298.5mm
    • Depth: 5.1", 130 mm
    • Net Weight: 7.9 lbs, 3.58 kg
    • Shipping Weight: 9.8 lbs, 4.45 kgs
    Materials of Construction
    • Coil Construction: Copper voice coil
    • Coil Former: Polyimide former
    • Magnet Composition: Ferrite magnet
    • Core Details: Non-vented core
    • Basket Materials: Pressed steel basket
    • Cone Composition: Hemp cone
    • Cone Edge Composition: Paper cone edge
    • Dust Cap Composition: Zurette dust cap
