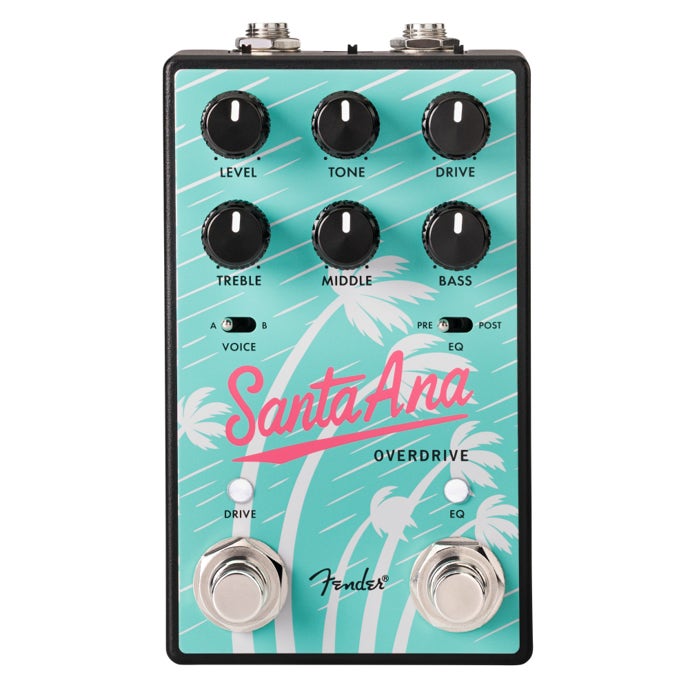

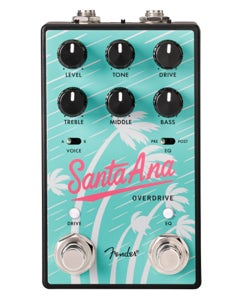

Fender Santa Ana Overdrive V2 Effect Pedal

The Fender Santa Ana V2 is a JFET-based class-A overdrive pedal running at 18V internally — a design that provides the touch sensitivity and high-headroom drive that players expect from a Fender tube amp pushed hard and then some. At its heart, this dual-voice drive circuit sports three straightforward controls and a Voice switch to push your guitar from natural-sounding tight overdrive (voice A) to smooth, thick lead tones (voice B). The Drive and Tone controls provide a wide range to dial in just the right flavor of gain and treble presence in the drive signal, while the rear-mounted Tight switch pulls some pre-drive bass frequencies out for an even more focused feeling drive.

To further sculpt the frequency response of your drive, a standalone, independently switchable 3-band EQ circuit is built around the Santa Ana V2 drive engine. Active Bass, Middle, and Treble controls offer a wide range of adjustment, cutting or boosting each frequency range with a center detent to mark flat response. Determine exactly how the EQ circuit interacts by using the EQ Placement switch to stack the EQ before or after the drive: Pre-drive EQ flavors the overdrive’s response by determining which frequencies are clipped most by the drive circuit; post-drive EQ lets your guitar hit the drive head on and shapes the resulting gain tones for a more dramatic EQ effect.

With a fine-tuned JFET drive engine, independent EQ circuit, conveniently switchable buffered and true bypass modes, and multiswitch enabled footswitches for momentary and latching activation, the Santa Ana V2 is an ultra-flexible, intuitive overdrive with tons of tones on tap. Requires 9VDC adapter (sold separately).

Santa Ana V2 Features:

JFET-based class-A overdrive with internal 18V operation for high headroom and tube-like touch response
Dual-voice circuit with Voice switch for tight overdrive (A) or smooth, thick lead tones (B)
Drive and Tone controls plus rear Tight switch for refined gain shaping and low-end tightening
Independently switchable 3-band active EQ with pre/post drive placement options
Flexible switching with true/buffered bypass and multiswitch footswitch functionality

See all items from FENDER

Shop Similar Models

Fender Effects

About the Manufacturer

Phone: 800-856-9801

Warranty: 2 Years Limited on Custom Shop; 2 Years Limited on Stringed Instruments; 2 Years Limited on Electronic Products; 5 Years Limited Transferable on Fortis; 1 Year Limited on Accessories; 1 Year on IEM; 90 Days on Vacuum Tubes

Fender Santa Ana Overdrive V2 Effect Pedal Specifications

Fender Santa Ana Overdrive V2 Effect Pedal Specifications
Product Specifications	Series: Fender Pedals Model Name: Santa Ana Overdrive V2 Material: Anodized Aluminum Color: Blue/Black Controls: Overdrive Level, Tone, Drive, Treble/Middle/Bass EQ, Voice Switch, Tight Switch, EQ Placement Switch Back Panel Controls: Buffered Bypass Switch, Multiswitch Control Knobs: Black Knurled Footswitch: Footswitch 1: Drive On/Off, Footswitch 2: EQ Effect On/Off Impedances: Input: 1M ohm Output: 470 ohms Power Supply: 220mA min @ 9VDC regulated adapter 5.5 x 2.1mm barrel connector (not included) Power Requirements: 9VDC Dimensions: 2.44” x 4.4” x 2.2” (62mm x 111.8mm x 55.9mm) Weight: 0.83 lbs. (0.38kg)
