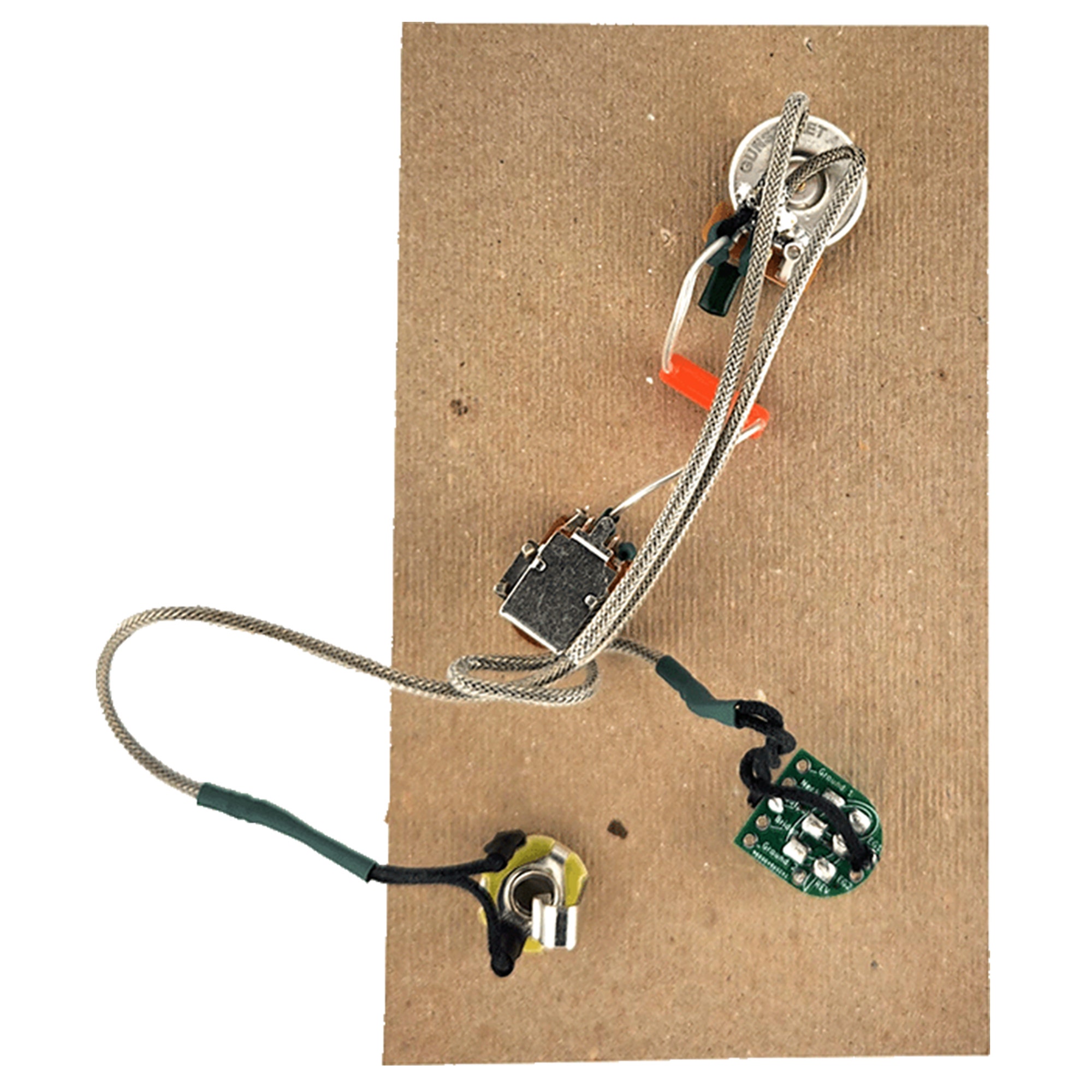

Gunstreet GSWH-PRS-TS-CP-V Wiring Harness

The Gunstreet PRS Classic Coil Tap Wiring Harness kits are drop-in replacements for PRS guitars. Featuring their Green Treble Bleed Wiring mod for more highs at lower volumes.

Item
GUNWHPRSTSCPV

h m s

free-shipping-icon
In Stock!Order now!
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    Free Shipping - No Extra Charge!

    Our 4 state-of-the-art, strategically located warehouses are highly efficient and allow us to ship your gear in record time - and most orders will arrive at your door within 2 days for free. Shortly after you place your order, a Ship Confirmation email will arrive letting you know the order was picked, packed, and put on a truck. Full Details


    Shipping Map

    45 Day Money Back Guarantee45 Day Money Back Guarantee

    Our 45 day return policy allows you to buy with confidence at AMS! If you are not completely satisfied with any item* purchased from AMS, return it to us within 45 days of the shipping date, and we will refund your money or help you with an exchange. That's always been our policy, and now we've added the ease of Electronic Return Labels!

    Canadian Shipping Information

    Welcome Canadian musicians! Buying your gear from AMS is as easy as going to a local music store, with more selection and more than competitive prices!

    Items with this logo are eligible to ship to Canada. Please note that you will be responsible for payment of brokerage fees, duties and other import taxes applicable to your order.

    NOTE: Free shipping offers do not apply to Canadian orders. Please be aware of custom fees - such as taxes and duties - when your order arrives. Since these fees vary from location to location, CUSTOMS FEES ARE NOT INCLUDED IN SHIPPING CHARGES. Please check with your local customs office for more information on the fees in your areas. Refusal to pay these fees will result in an undeliverable order. If returned, we do not refund shipping charges and may assess restocking fees to cover return shipping expenses.

    AMS AgentAMS Agent

    Have questions, found a better price?
    Talk to a sales specialist!

    800-319-9043

    The Gunstreet PRS Classic Coil Tap Wiring Harness kits are a perfect drop-in replacement for your PRS style guitar, whether you want to change how your instrument sounds, or just want to improve the durability Gunstreet has something perfect for you!



    Gunstreet GSWH-PRS-TS-CP-V Wiring Harness Features:

    • Easy to install switch offers a better overall quality while offering a quieter switching experience.
    • Gunstreet Pots "Universal fit" fits both SE and US made guitars
    • The Green Treble Bleed Wiring mod, often called a “Volume bleed”
    • Modern High pass Filter for more highs at lower volumes
    • Sent through their proprietary testing process to guarantee highest quality



    Green Treble Bleed (Modern High Pass Filter)

    Found stock in most Prs guitars this one is often called a “Volume bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.



    The Gunstreet Promise

    Gunstreet takes their quality very seriously. That's why they only use real trained technicians who hand build each kit, and then send it through their proprietary testing process where they audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!



    All kits include a paper diagram



    Gunstreet GSWH-PRS-TS-CP-V Wiring Harness Requirements (Must Read):

    • Your pickups must have 4 conductor wires
    • Gunstreet Custom Pots use an 18 tooth knurled shaft. You will need a knob that fit this. SE's stock knobs will fit this, but you will want to confirm US spec models
    Shop Similar Models

    Gunstreet GSWH-PRS-TS-CP-V Wiring Harness Specifications

    Gunstreet GSWH-PRS-TS-CP-V Wiring Harness Specifications
    Product Specifications

    Gunstreet GSWH-PRS-TS-CP-V Wiring Harness Specifications:

    • Toggle Switch:
      • Body Cavity Depth: 5/8" (15.87mm)
      • Mounting Hole Diameter: 1/2" (12.70mm)
      • Thread Height: 7/32" (5.56mm)
      • Switch Tip Threading: 8-32
    • Gunstreet "Universal Fit" Pots:
      • Taper Style: Custom Audio Taper
      • Knob Type: 18 spline Coarse knurling
      • Shaft Diameter: 8mm
      • Required Mounting Hole Diameter: 8mm
      • Thread Type: M8 x 0.75
      • Value: 500k +/-15%
    • Capacitor Specs:
      • Brand: CDE
      • Model: "Orange Drop"
      • Value: .022uF -/+10%
    • Neutrik Output Jack Specs:
      • Mounting Hole Diameter: 3/8" (9.52mm)
      • Thread: 3/8 x 32
      • Threaded Portion Height: 1/4" (6.35mm)
