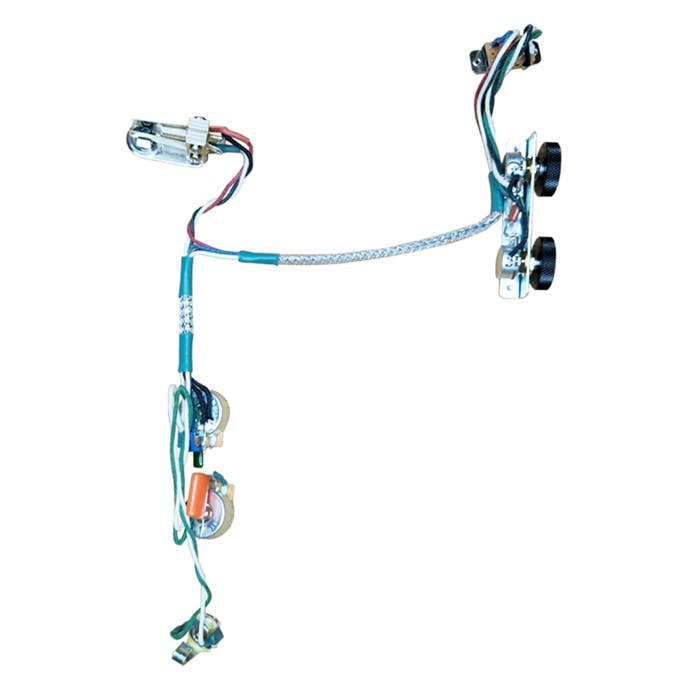

Gunstreet Jazzmaster Wiring Harness Rhythm Circuit

Item
GUNJMCKSVBS

h m s

free-shipping-icon
In Stock!Order now!
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    Rock Now Pay LaterRock Now Pay Later

    Get the gear you want when you want it!

    With AMS 0% interest Payment Plans, you use your own credit or debit card, and we will never charge you any interest! We will split your order total equally across the plan that you have chosen.

    Your credit card will be charged every 31 days, automatically. It’s that easy!  Some plans require a credit check.

    Free Shipping - No Extra Charge!

    Our 4 state-of-the-art, strategically located warehouses are highly efficient and allow us to ship your gear in record time - and most orders will arrive at your door within 2 days for free. Shortly after you place your order, a Ship Confirmation email will arrive letting you know the order was picked, packed, and put on a truck. Full Details


    Shipping Map

    45 Day Money Back Guarantee45 Day Money Back Guarantee

    Our 45 day return policy allows you to buy with confidence at AMS! If you are not completely satisfied with any item* purchased from AMS, return it to us within 45 days of the shipping date, and we will refund your money or help you with an exchange. That's always been our policy, and now we've added the ease of Electronic Return Labels!

    Canadian Shipping Information

    Welcome Canadian musicians! Buying your gear from AMS is as easy as going to a local music store, with more selection and more than competitive prices!

    Items with this logo are eligible to ship to Canada. Please note that you will be responsible for payment of brokerage fees, duties and other import taxes applicable to your order.

    NOTE: Free shipping offers do not apply to Canadian orders. Please be aware of custom fees - such as taxes and duties - when your order arrives. Since these fees vary from location to location, CUSTOMS FEES ARE NOT INCLUDED IN SHIPPING CHARGES. Please check with your local customs office for more information on the fees in your areas. Refusal to pay these fees will result in an undeliverable order. If returned, we do not refund shipping charges and may assess restocking fees to cover return shipping expenses.

    Non Factory Sealed Items

    Non Factory Sealed are items that have been opened but are in perfect physical condition such as customer returns, open box for product photos/videos, demo stock, etc. They have been carefully inspected and repacked by qualified AMS employees to help ensure your satisfaction, allowing you to get great gear at a discounted price. They include all components, manuals and the full Manufacturer's warranty unless otherwise stated, along with the AMS 45-day Money-Back Guarantee. Special offers, promotions and rebates may not apply. The following manufacturers do not offer a warranty on Non-Factory Sealed items: Casio, Ampeg, Avalon, Chauvet, Electro-Voice, Ibanez, Mackie, Martin, Peavey

    AMS AgentAMS Agent

    Have questions, found a better price?
    Talk to a sales specialist!

    800-319-9043

    Gunstreet kits are a perfect drop-in replacement for your Jazzmaster style guitar, whether you want to change how your instrument sounds, or just want to improve the durability they have something perfect for you!

    Green Treble Bleed (Modern High pass Filter): Often called a “Volume bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.

    Gunstreet Jazzmaster Wiring Harness Rhythm Circuit Features:

    • Perfect drop-in replacement for Telecaster style guitars
    • Improves the durability
    • Green Treble Bleed (Modern High pass Filter)
    • Changes the modern wiring into a high pass filter
    • Delivers more highs at lower volumes
    • Great if you like to use both your volume and tone control a lot

    The Gunstreet Promise

    Gunstreet takes their quality very seriously. That's why they only use real trained technicians who hand build each kit, and then send it through their proprietary testing process where they audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!

    All kits include a diagram as well as a simple “how to” on the Gunstreet website

    Shop Similar Models

    Gunstreet Jazzmaster Wiring Harness Rhythm Circuit Specifications

    Gunstreet Jazzmaster Wiring Harness Rhythm Circuit Specifications
    Product Specifications

    Specifications

    Switchcraft L Angle Toggle Switch Specs

    • Body cavity depth: 1" (25.4mm)
    • Mounting hole diameter: 1/2" (12.70mm)
    • Thread height: 7/32" (5.56mm)

    DHE "Gunstreet" Pots

    • Taper style: Custom Audio
    • Resistance: < 1Meg
    • Split Shaft Knob type: = 18 tooth “Fine” Knurled
    • Thread type: 3/8"-32
    • Threaded portion: 3/8"
    • Required mounting hole diameter: 3/8" (9.52mm)
    • Value: 1meg +/-20%

    Capacitor Specs

    • Brand: CDE
    • Model: "Orange Drop"
    • Value: .033uF+/-10%

    Neutrik Output Jack Specs

    • Mounting hole diameter: 3/8" (9.52mm)
    • Thread: 3/8 x 32
    • Threaded portion height: 1/4" (6.35mm)

    Rhythm Circuit

    Includes new bracket and thumbwheels

    Swithcraft ON/ON slider switch

    • Dimensions: 1/2" Wide x 1-3/8th" long (12.70mm x 34.93mm)
    • Required Depth: 3/4th" (19.05mm)
    • Screw Spacing: 1-1/8th" (28.58mm)
    • Required Slider Movement slot: 5/16" x 9/16th" (7.94mm x 14.29mm)

    Custom Alpha Pots

    • Volume-Resistance: 1Meg+/-20%
    • Tone-Resistance: 50k+/-20%

    Capacitor Specs

    • Brand: Panasonic
    • Tolerance: 10%
    • Value: .033uF

    Requirements

    Converting an Import or MIJ guitar to US spec

    US Spec pots will require you to have a US spec Pickguard as the pot holes have to be 3/8th. Double check if your pickguard is already 3/8th before replacing. Some guitars come stock with a US spec pickguard even though they have metric pots.

    If swapping from CTS to the Gunstreet pots you will need new 18 tooth "Coarse" knurled knobs
