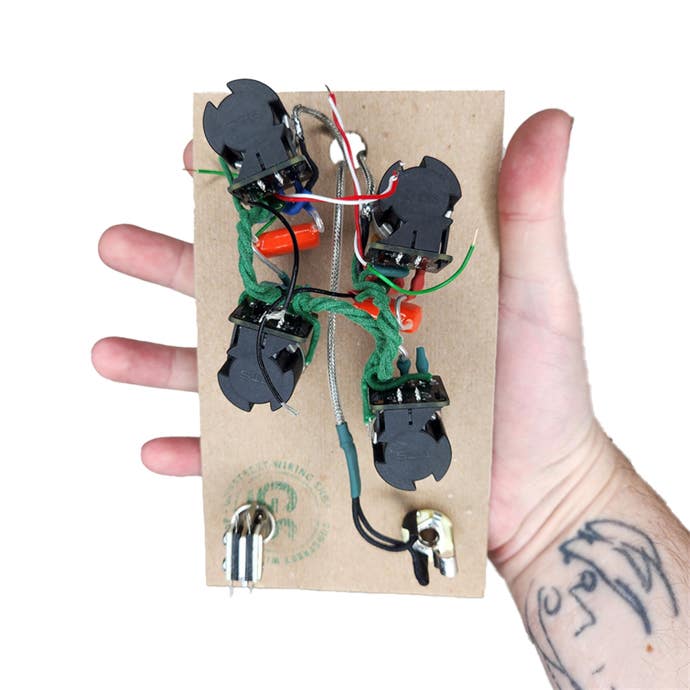

Gunstreet Les Paul Jimmy Page Wiring Harness Long Shaft
This Gunstreet Wiring Harness is a drop-in replacement for Les Paul style guitars. Featuring the Green Treble Bleed High Pass Filter & a custom Jimmy Page 21 Tone wiring, great for pushing distortion!
0 Reviews
Write a review
0% Interest
Payment Plan
Don’t sell your soul to a creditor to get the gear you need. At AMS, we want to lower the barriers to create. That’s why we offer in-house 0% financing, and you don’t even have to open a new line of credit! Spread out payments on your credit card to simplify financing and avoid hefty late fees or service charges. Cost shouldn’t interfere with your creativity.
Earn rewards every time you shop at AMS. You'll collect points on eligible purchases that turn into promotional savings on future gear, with points typically available several days after your order ships. All you need is a free AMS account — no credit card, financing, or payment plan required.
The more you shop, the more you earn. Create a free account and start earning from your very first eligible purchase. Rewards are applied as a discount on future eligible purchases.
Earn points on eligible purchases with AMS Rewards and turn them into savings on future orders, no credit card required. You can apply points at checkout once they’re available.
Eligible to earn $12.95 for this purchase
OR
6 Payments of $43.33 No Credit Check
Compare
Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!
Opt in for Notifications on this product for the price drops, stock changes and promotions
Gunstreet kits are a perfect drop-in replacement for your Les Paul style guitar, whether you want to change how your instrument sounds, or just want to improve the durability they have something perfect for you!
Green Treble Bleed (Modern High pass Filter): Often called a “Volume bleed”, this circuit changes the modern wiring into a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.
Gunstreet Les Paul Jimmy Page Wiring Harness Long Features:
Perfect drop-in replacement for Les Paul style guitars
Improves the durability
Green Treble Bleed (Modern High pass Filter)
Changes the modern wiring into a high pass filter
Delivers more highs at lower volumes
Great if you like to use both your volume and tone control a lot
Harness also includes the Custom JP 21 Tone wiring
Great if you like a lot of flexibility in your sound, or love pushing distortion
Gunstreet’s own custom JP 21 Tone wiring: This kit features Coil Cutting in the Volumes, Out of phase in the Bridge tone and a Series switch in the Neck tone. Giving you a crazy number of options. This set up is great if you like a lot of flexibility in your sound, or love pushing distortion!
The Gunstreet Promise
Gunstreet takes their quality very seriously. That's why they only use real trained technicians who hand build each kit, and then send it through their proprietary testing process where they audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!
All kits include a diagram as well as a simple “how to” on the Gunstreet website
Gunstreet Les Paul Jimmy Page Wiring Harness Long Specifications
Item #:
GUN LPSTNDCLSHVJP
Manufacturer Part Number:
GSWH-LPSTND-CLSH-VJP
UPC:
5060979939942
Product Specifications
Specifications
CTS 450G
Taper style: Audio
Value: 500k
Shaft Diameter: 3/8" (9.52MM)
Shaft Length: Long shaft: 3/4th (19.05MM)
Knob Pattern: 24 tooth "Fine" Knurled
Nut thread: 3/8 x 32
Switchcraft Toggle
Required Body cavity depth: 7/8" (22.23MM)
Mounting hole diameter: 1/2" (12.70mm)
Thread height: 11/32"; (8.74MM)
Thread Pattern: 15/32x 32
Switch tip Thread: 8-32
CDE “Orange Drop” Capacitor
Value: 0.047UF
Tolerance: +/- 10%
Voltage (Size): 400v
Neutrik Rean mono jack
Required mounting hole diameter: 3/8" (9.53mm)
Thread: 3/8 x 32
Thread height: 1/4" (6.35mm)
Requirements (Must Read)
Because of how this circuit is designed and how it’s playing with the mechanics of your pickups, this circuit is very prone to outside feedback and in rare cases causes an “audible ground path aka a ghost pickup sound” Although this won’t fix everything in some rigs. They highly suggest installing this kit in a properly shielded cavity to help limit the effects or issues stemming from things like amps, pedals, power supplies, and even your houses wiring!
Requirements:
This requires 4 conductor pickups
Converting an Import guitar to US spec
US spec pots will require you to enlarge the stock pot holes to be 3/8th
CTS you will need new "Fine Knurled" knobs
Most Gibson curved tops require a "3/4th Long Shaft"
Gunstreet Les Paul Jimmy Page Wiring Harness Long Specifications
Product Specifications
Specifications
CTS 450G
Taper style: Audio
Value: 500k
Shaft Diameter: 3/8" (9.52MM)
Shaft Length: Long shaft: 3/4th (19.05MM)
Knob Pattern: 24 tooth "Fine" Knurled
Nut thread: 3/8 x 32
Switchcraft Toggle
Required Body cavity depth: 7/8" (22.23MM)
Mounting hole diameter: 1/2" (12.70mm)
Thread height: 11/32"; (8.74MM)
Thread Pattern: 15/32x 32
Switch tip Thread: 8-32
CDE “Orange Drop” Capacitor
Value: 0.047UF
Tolerance: +/- 10%
Voltage (Size): 400v
Neutrik Rean mono jack
Required mounting hole diameter: 3/8" (9.53mm)
Thread: 3/8 x 32
Thread height: 1/4" (6.35mm)
Requirements (Must Read)
Because of how this circuit is designed and how it’s playing with the mechanics of your pickups, this circuit is very prone to outside feedback and in rare cases causes an “audible ground path aka a ghost pickup sound” Although this won’t fix everything in some rigs. They highly suggest installing this kit in a properly shielded cavity to help limit the effects or issues stemming from things like amps, pedals, power supplies, and even your houses wiring!
Requirements:
This requires 4 conductor pickups
Converting an Import guitar to US spec
US spec pots will require you to enlarge the stock pot holes to be 3/8th
CTS you will need new "Fine Knurled" knobs
Most Gibson curved tops require a "3/4th Long Shaft"
