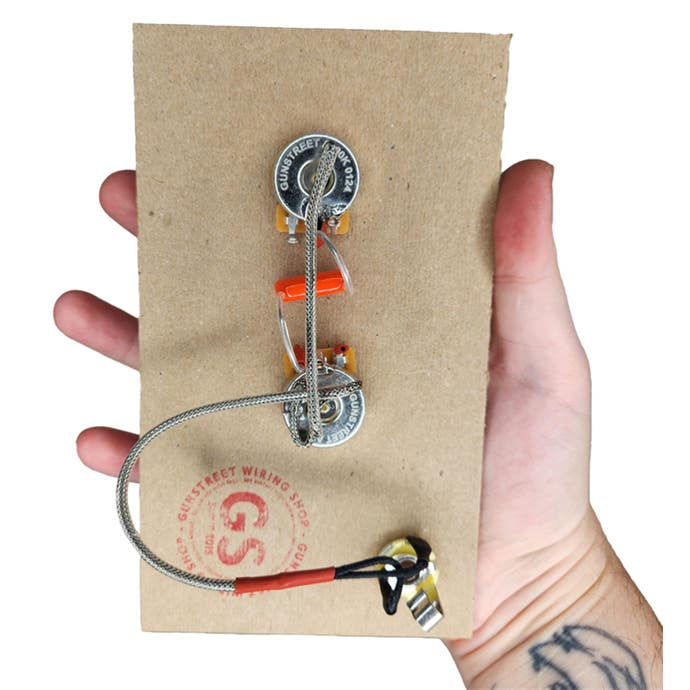

Gunstreet Les Paul Junior P90 Wiring Harness

OR
In Stock!
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    2 Day Shipping Icon2 Day Shipping Icon

    Fast & Free Shipping

    Did you know AMS is the only music distributor with four distribution centers? And that means we can offer super-fast shipping on all your music products. Whether you don’t want the spark of inspiration to fade or you really need that replacement speaker before the next show, we have you covered anywhere in the U.S. And even better, it’s FREE!

    45 Day return icon45 Day return icon

    45 Day return

    Sometimes the gear on the computer screen seems like a better fit than when you actually get your hands on it. We understand, and that’s why AMS offers an industry-leading 45-day money-back guarantee. If you’re not happy with an item, you have a full month and a half to send it back! We don’t want to just sell you gear. We want to sell you the RIGHT gear — even if it takes a few tries.

    Rock Now Pay LaterRock Now Pay Later

    0% Interest Payment Plan

    Don’t sell your soul to a creditor to get the gear you need. At AMS, we want to lower the barriers to create. That’s why we offer in-house 0% financing, and you don’t even have to open a new line of credit! Spread out payments on your credit card to simplify financing and avoid hefty late fees or service charges. Cost shouldn’t interfere with your creativity.

    AMS AgentAMS Agent

    Have questions?

    Talk to a sales specialist!

    800-319-9043

    Gunstreet kits are a perfect drop-in replacement for your Les Paul Junior style guitar, whether you want to change how your instrument sounds, or just want to improve the durability they have something perfect for you!

    Red 50’s Wiring (Vintage High Pass Filter): This wiring was found in the first gen of electric guitars. It features a transparent sound as you roll off the volume at the cost of a steep volume taper and an on/off tone control that interacts a lot with your volume position.

    Gunstreet Les Paul Junio P90 Wiring Harness Features:

    • Perfect drop-in replacement for Les Paul style guitars
    • Improves the durability
    • Red 50’s Wiring (Vintage High Pass Filter)
    • Wiring found in the first generation of electric guitars
    • Transparent sound as volume is decreased
    • On/off tone control that interacts a lot with your volume

    The Gunstreet Promise

    Gunstreet takes their quality very seriously. That's why they only use real trained technicians who hand build each kit, and then send it through their proprietary testing process where they audio test every control, switch, or option to make sure that when you received the item its free of any hums, crackles, or pops!

    All kits include a diagram as well as a simple “how to” on the Gunstreet website.

    Shop Similar Models

    Gunstreet Les Paul Junior P90 Wiring Harness Specifications

    Gunstreet Les Paul Junior P90 Wiring Harness Specifications
    Product Specifications

    Specifications

    DHE "Gunstreet" Pots

    • Taper style: Custom Audio
    • Resistance: 500k Volume, 250k Tone +/-20%
    • Split Shaft Knob type: = 18 tooth “Fine” Knurled
    • Thread type: 3/8"-32
    • Threaded portion: 3/8"
    • Required mounting hole diameter: 3/8" (9.52mm)
    • Value: 500k Volume, 250k Tone +/-20%

    Capacitor Specs

    • Brand: CDE
    • Model: "Orange Drop"
    • Value: .022uF+/-10%

    Neutrik Output Jack Specs

    • Mounting hole diameter: 3/8" (9.52mm)
    • Thread: 3/8 x 32
    • Threaded portion height: 1/4" (6.35mm) Volume & Tone - 0.022uf Cap

    Requirements

    Converting an Import guitar to US spec: Gunstreet US spec pots will require you to enlarge the stock pot holes to be 3/8th

    Gunstreet kits will require an 18th tooth "Coarse" Knurled knob.
