Heritage Audio Symph EQ Stereo Asymptotic Equalizer

Item
HEASYMPHEQ

h m s

free-shipping-icon
In Stock!Order now!
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    Rock Now Pay LaterRock Now Pay Later

    Get the gear you want when you want it!

    With AMS 0% interest Payment Plans, you use your own credit or debit card, and we will never charge you any interest! We will split your order total equally across the plan that you have chosen.

    Your credit card will be charged every 31 days, automatically. It’s that easy!  Some plans require a credit check.

    Free Shipping - No Extra Charge!

    Our 4 state-of-the-art, strategically located warehouses are highly efficient and allow us to ship your gear in record time - and most orders will arrive at your door within 2 days for free. Shortly after you place your order, a Ship Confirmation email will arrive letting you know the order was picked, packed, and put on a truck. Full Details


    Shipping Map

    Free Extended WarrantyFree Extended Warranty

    12 Months EXTRA for Free!

    Many of our competitors charge 10% or more for an additional 12 months of warranty on the products they sell. AMS offers this exclusive benefit to our valued customers at no extra charge. Thousands of items on our site and in our catalog carry the "Gold Lock Extended Warranty" icon. It means you get the manufacturer's full warranty plus 12 additional months, FREE!!!

    45 Day Money Back Guarantee45 Day Money Back Guarantee

    Our 45 day return policy allows you to buy with confidence at AMS! If you are not completely satisfied with any item* purchased from AMS, return it to us within 45 days of the shipping date, and we will refund your money or help you with an exchange. That's always been our policy, and now we've added the ease of Electronic Return Labels!

    Canadian Shipping Information

    Welcome Canadian musicians! Buying your gear from AMS is as easy as going to a local music store, with more selection and more than competitive prices!

    Items with this logo are eligible to ship to Canada. Please note that you will be responsible for payment of brokerage fees, duties and other import taxes applicable to your order.

    NOTE: Free shipping offers do not apply to Canadian orders. Please be aware of custom fees - such as taxes and duties - when your order arrives. Since these fees vary from location to location, CUSTOMS FEES ARE NOT INCLUDED IN SHIPPING CHARGES. Please check with your local customs office for more information on the fees in your areas. Refusal to pay these fees will result in an undeliverable order. If returned, we do not refund shipping charges and may assess restocking fees to cover return shipping expenses.

    AMS AgentAMS Agent

    Have questions, found a better price?
    Talk to a sales specialist!

    800-319-9043

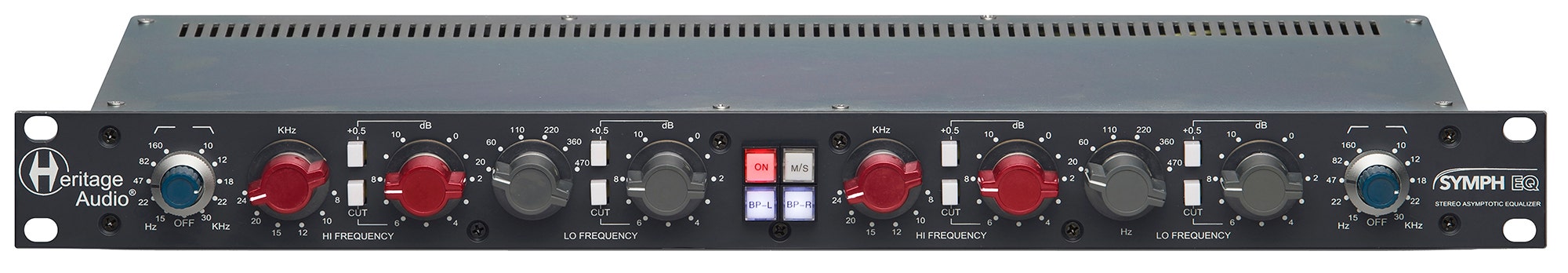

    Heritage Audio has successfully replaced the Baxandall topology with a functional equivalent, much more musical one, and has implemented it in a one rack space, master bus/ mastering type unit. The Stereo Asymptotic Equalizer, affectionately known as “SYMPH”, takes its name from the shape obtained by its shelf curves, where the boost or cut amplitude grows up until the asymptotic value is reached, keeping the ultra highs and sub lows always controlled.

    Its sound can only be described as tight, sweet and natural, and its use of parallel equalizing to obtain the desired response curves makes it to have exceptional low phase deviation and artifacts.

    Baxandall equalizers topology, introduced to the public by Peter Baxandall in 1952, was a very ingenious way of obtaining high and low shelves with boost and cut option without using expensive rotary switches, as it was common at the time. This affordable circuit was soon adopted by hi fi and console manufacturers for its simplicity and low component count, albeit for more high quality equalizing it has always been necessary to rely on inductor, Pulteq like topologies or more elaborate parametric options.

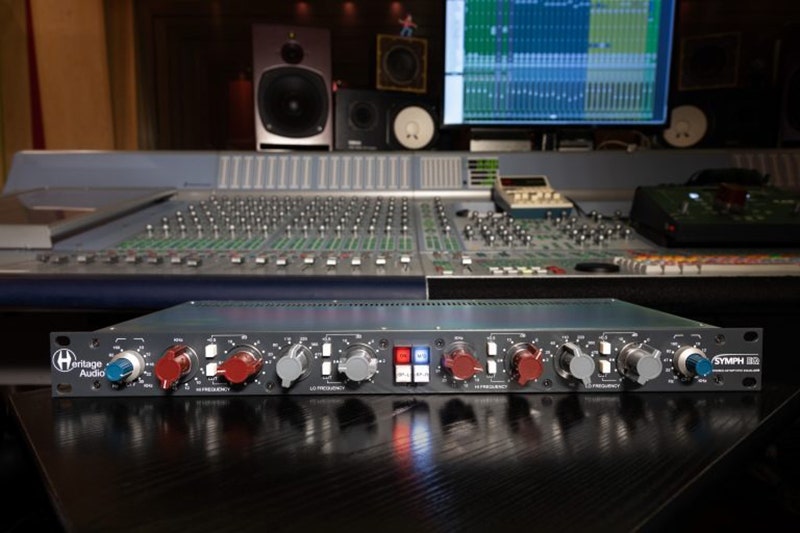

    High and Low shelf bands with surgical but musical precision
    A smart circuit layout allows for a maximum boost / cut of 10.5 dB in 0.5 dB steps. The main rotary switch sets 1dB steps whilst the 0.5 button adds half a dB to the main reading. The CUT button turns the boost amount into the same but cut. Six strategically selected frequency choices per band are available, being 8, 10, 12, 15, 20 and 24 Khz on the high shelf and 470, 360, 220, 110, 60 and 20 Hz on the low one.

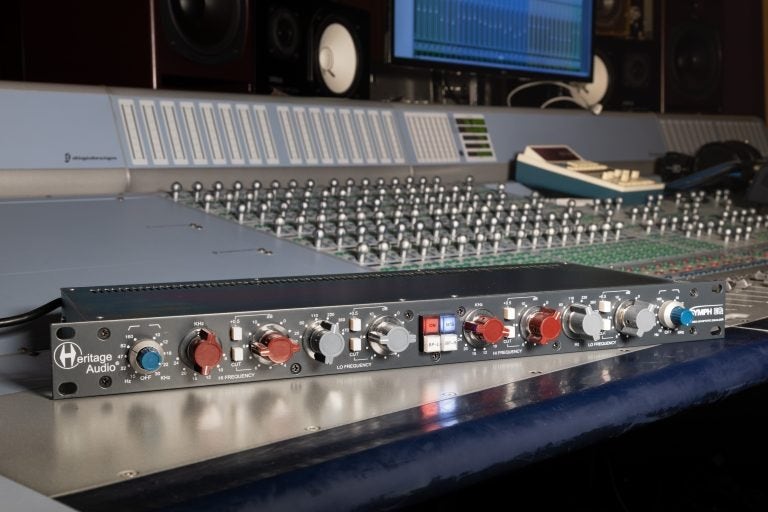

    2 pole high and low pass filters
    In order to keep the sub low and ultra high frequency content well under control, further high and low pass filters have been added on dual concentric rotary switches, at 12dB/octave. 5 frequency choices plus OFF have been implemented on each one, being 10, 12, 18, 22 and 30 Khz on the low pass, and 160, 82, 47, 20 and 15 Hz on the high one.

    This is where the magic lives
    The Symph EQ would have been an awesome sculpting tool just as it has been described above, but it turns into a monster piece with the following 3 additions:

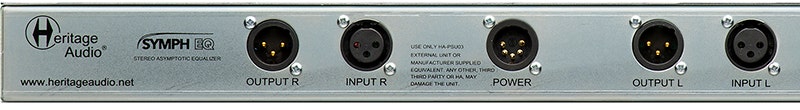

    • It features the same exclusive Carnhill input transformers made in Oxford found in the Successor.
    • Its outputs are driven ( as its common in all HA products) by 73 type class A output amplifiers, using the same Carnhill St´Ives output transformers as the rest of the family.
    • Most importantly and, here is where the Symph EQ really shines, it has built in Mid Side (M/S) capabilities
