Imagine a massive wall of sound that went on a diet but kept all its muscle — that's the JBL SRX922. This 3-way powered loudspeaker redefines what a compact speaker can do, merging the raw power of a large touring rig with the precision of modern acoustics. It houses a dual 12-inch point-source design in an enclosure that's easy to move.
When you need serious volume and precise directivity without sacrificing stage space, this speaker is a heavyweight champion in a middleweight's body.
Muscle That Punches Above Its Weight
Most compact speakers have to compromise on low-end grunt or midrange clarity, but the SRX922 just laughs in the face of physics. By utilizing a cleverly designed three-way system, it manages to deliver higher output than bulky traditional 15-inch setups. It gives your audio the headroom it deserves, ensuring every beat hits hard and every vocal cuts through the mix with stunning transparency.
Symmetrical Dual 12-Inch Woofers: This clever arrangement provides double the low-frequency headroom of a standard single-woofer design, giving you rib-rattling bass that stays tight and focused.
Horn-Loaded Mid and High Frequencies: Featuring a 6.5-inch MF driver and a 1.5-inch compression driver, this section lets the woofers stick to what they do best while ensuring vocals and leads are crisp, efficient, and perfectly controlled.
Flared Low-Frequency Ports: Four large, carefully designed ports extend the bass response all the way down to 50 Hz, meaning you get deep, breathable lows without unwanted port noise ruining your vibe.

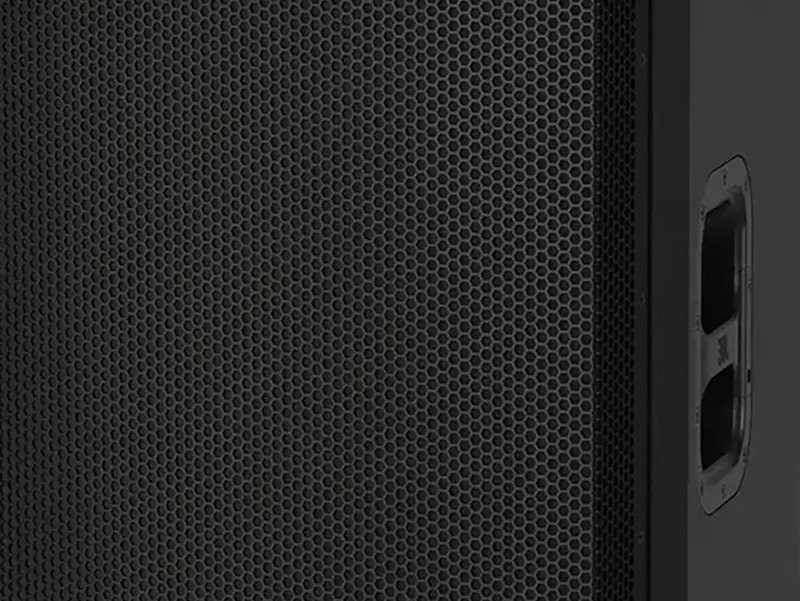

Smart Processing for Predictable Perfection
Raw volume is nothing without control. The SRX922 comes loaded with an integrated amplification and DSP package that makes achieving perfect sound surprisingly easy. You don't need a rack full of outboard gear to tame this beast; the brains are built right in. It ensures your sound is predictable, smooth, and easily managed, letting you focus on the show instead of fighting the room.
Dipole Configuration: This acoustic layout naturally enhances vertical directivity control, keeping the sound aimed squarely at the audience and off the ceiling.
Integrated DSP: A massive brain packed with 24 user-adjustable filters, 2,000 ms of delay, and essential loudspeaker management tools, ensuring you can tune your rig for any room on earth.
Progressive Transition Waveguides: Dual 90° × 60° waveguides deliver a smooth, predictable coverage pattern, so the folks in the cheap seats get the exact same premium audio experience as the VIPs.

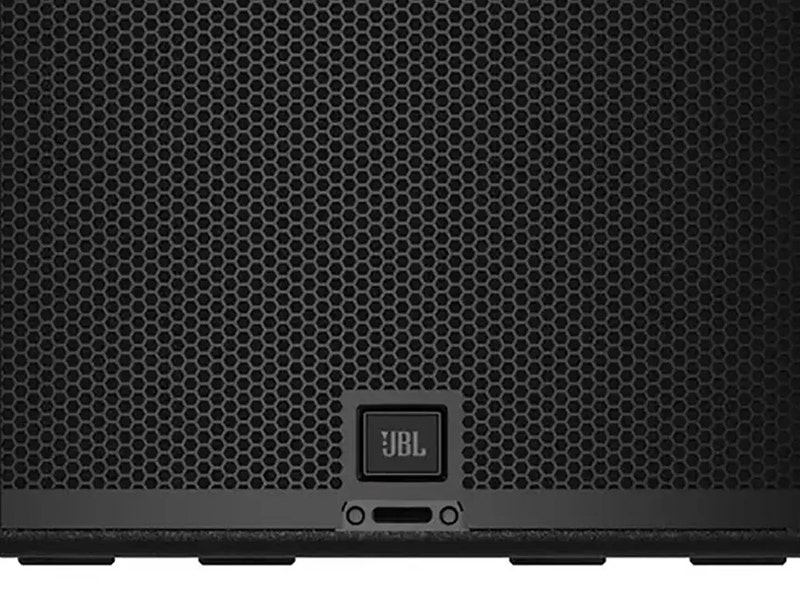

Tour-Tough Build and Rigging
Taking gear on the road is tough on equipment, but this loudspeaker was built to take a beating and ask for seconds. From the rugged wooden enclosure to the smart suspension hardware, it’s designed for fast deployments and long-lasting durability. It plays nicely with larger SRX900 line-source products, making it the perfect team player for massive festivals or premium installed applications.
Baltic Birch Construction: Housed in outdoor-grade Baltic birch plywood, this cabinet offers exceptional acoustic resonance while being tough enough to survive the brutal realities of touring.

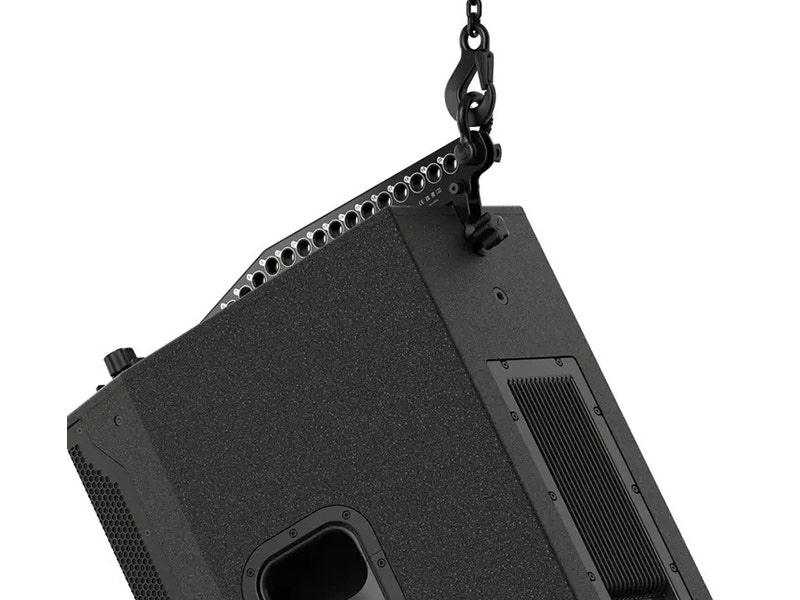

Quick-Link Suspension Points: Eight integrated M10 attachment points allow for fast, secure rigging using standard eye bolts, getting your system in the air safely and quickly.

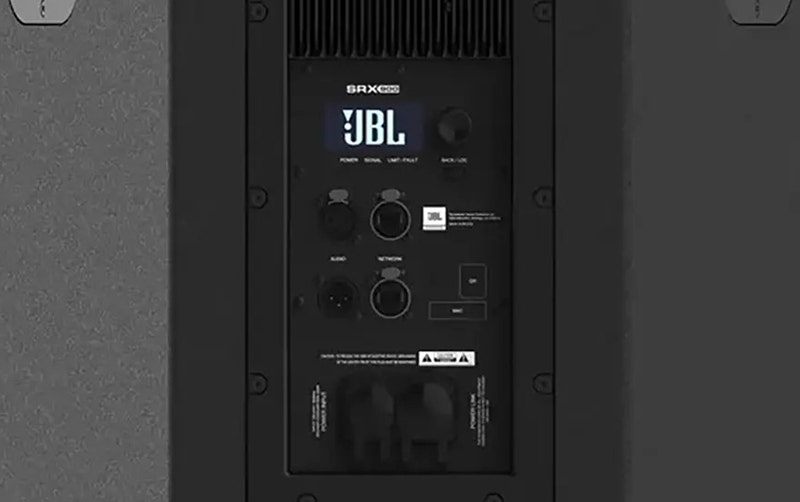

Rear LCD Screen: A handy rear-panel display allows for rapid configuration and adjustments on the fly, so you don't always have to break out the laptop just to tweak a preset.
A Powerful Point-Source Solution
The JBL SRX922 proves that you don't need a massive, unmanageable enclosure to achieve top-tier touring sound. It captures the raw energy of a massive PA while offering the intelligent processing and compact footprint modern audio professionals demand. It’s a workhorse speaker for those who want uncompromising audio quality and serious output, delivered in a package that actually makes logistical sense.
Warranty: As of April 1, 2022, 7 Years Extended. The extended warranty applies to all product components, excluding batteries, on the Eon 700 Series, Eon One Compact, Eon One MK2, and PRX One systems. 3 Years on Batteries on the rechargeable models; 3 Years on Amps, PRX700 & PRX800 Series; 2 Years on Enclosures & Other; 1 Year on JBL Bags
JBL SRX922 Dual 12 Inch 3-Way Powered Loudspeaker Specifications
Item #:
JBL SRX922
Manufacturer Part Number:
JBL-P3364MX
UPC:
691991039829
Product Specifications
Frequency Range (-10 dB): 40 Hz-17.5 kHz
Coverage Pattern: 90° x 60°
Maximum SPL: 138 dB
System Type: Point-source, acoustically three-way, bi-amplified, powered
Amplifier Design: Class-D
Continuous Power Rating: 1100W | LF: 550W | MHF: 550W
LF Driver: (2) JBL 2273G, 12 in diameter, dual 3.0 in diameter voice coil, ferrite Differential Drive
MF Driver: 196H-1, 6.0 in diameter, 1.5 in diameter voice coil, ferrite
HF Driver: (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil
Enclosure: Exterior grade birch plywood, DuraFlexTM finish, two integral handholds, two integral recessed handles
Suspension: (8) JBL QuickLink M10 points
Dimensions (H x W x D): 944 x 440 x 505 mm / 37.2" x 17.3" x 19.9"
Net Weight (each): 45.5 kg / 100 lbs
JBL SRX922 Dual 12 Inch 3-Way Powered Loudspeaker Specifications
Product Specifications
Frequency Range (-10 dB): 40 Hz-17.5 kHz
Coverage Pattern: 90° x 60°
Maximum SPL: 138 dB
System Type: Point-source, acoustically three-way, bi-amplified, powered
Amplifier Design: Class-D
Continuous Power Rating: 1100W | LF: 550W | MHF: 550W
LF Driver: (2) JBL 2273G, 12 in diameter, dual 3.0 in diameter voice coil, ferrite Differential Drive
MF Driver: 196H-1, 6.0 in diameter, 1.5 in diameter voice coil, ferrite
HF Driver: (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil
Enclosure: Exterior grade birch plywood, DuraFlexTM finish, two integral handholds, two integral recessed handles
Suspension: (8) JBL QuickLink M10 points
Dimensions (H x W x D): 944 x 440 x 505 mm / 37.2" x 17.3" x 19.9"
Net Weight (each): 45.5 kg / 100 lbs
Customer Reviews
We want to hear from you!
Be the first to leave a review! Take a few moments and let us know what you think
Frequently Asked Questions
The SRX922 is built for professionals who need high output in a compact, portable package — from touring productions and rental companies to houses of worship and installed sound venues. Its dual 12-inch design offers more punch than many 15-inch alternatives, making it a smart pick when both sound quality and transport ease matter.
Yes, the SRX922 is designed for crews that move fast across varied venues, packing serious output into a compact, manageable footprint that loads in and out faster than bulkier boxes. Ergonomic handles and integrated rigging points make it simple to stage on the ground, mount on a pole, or fly.
For most professional applications, yes. The SRX922's dual 12-inch design delivers the headroom and low-end impact of a bigger box in a tighter, lighter cabinet that's faster to move and rig. Compared to a single 15-inch three-way, you often get smoother coverage and more output for the footprint, though you may want a dedicated sub for very bass-heavy events.
Absolutely, the SRX922 is built to scale, integrating smoothly with JBL subwoofers like the SRX900 series to extend low-end punch for bass-heavy shows or bigger rooms. Onboard DSP and networking make it easy to tune and align your system for consistent coverage.
Yes, the SRX922 is built to earn its keep over years of demanding use, with a rugged, road-ready cabinet that stands up to constant load-ins, transport, and back-to-back gigs. Its flexible design adapts across event types, from worship services and corporate shows to festivals and rentals, so one investment covers a wide range of jobs.
