LD Systems Mon 12 A G3 12" Full Range Powered Coaxial Stage Monitor

The LD Systems MON 12 A G3 is part of newly developed family of powered stage monitors for high performance. The series offers a high-level of robustness and a comprehensive set of features.
Item
LDSMON12AG3

h m s

free-shipping-icon
In Stock!Order now!
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    0%Free ShippingExtended Warranty45 Day returnShips to Canada

    Free Shipping - No Extra Charge!

    Our 4 state-of-the-art, strategically located warehouses are highly efficient and allow us to ship your gear in record time - and most orders will arrive at your door within 2 days for free. Shortly after you place your order, a Ship Confirmation email will arrive letting you know the order was picked, packed, and put on a truck. Full Details


    Shipping Map

    Free Extended WarrantyFree Extended Warranty

    12 Months EXTRA for Free!

    Many of our competitors charge 10% or more for an additional 12 months of warranty on the products they sell. AMS offers this exclusive benefit to our valued customers at no extra charge. Thousands of items on our site and in our catalog carry the "Gold Lock Extended Warranty" icon. It means you get the manufacturer's full warranty plus 12 additional months, FREE!!!

    45 Day Money Back Guarantee45 Day Money Back Guarantee

    Our 45 day return policy allows you to buy with confidence at AMS! If you are not completely satisfied with any item* purchased from AMS, return it to us within 45 days of the shipping date, and we will refund your money or help you with an exchange. That's always been our policy, and now we've added the ease of Electronic Return Labels!

    Canadian Shipping Information

    Welcome Canadian musicians! Buying your gear from AMS is as easy as going to a local music store, with more selection and more than competitive prices!

    Items with this logo are eligible to ship to Canada. Please note that you will be responsible for payment of brokerage fees, duties and other import taxes applicable to your order.

    NOTE: Free shipping offers do not apply to Canadian orders. Please be aware of custom fees - such as taxes and duties - when your order arrives. Since these fees vary from location to location, CUSTOMS FEES ARE NOT INCLUDED IN SHIPPING CHARGES. Please check with your local customs office for more information on the fees in your areas. Refusal to pay these fees will result in an undeliverable order. If returned, we do not refund shipping charges and may assess restocking fees to cover return shipping expenses.

    AMS AgentAMS Agent

    Have questions, found a better price?
    Talk to a sales specialist!

    800-319-9043

    The LD Systems MON 12 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

    For decades, 12"/1" stage monitors have been the golden mean when it comes to sonority, sound pressure and portability. With coaxial design, smart electronics and a professional look, the MON 12 A G3 brings this concept into the "modern age". The ideal dispersion geometry of 50° x 90° for monitor use or 90° x 50° for FOH use make it a multi-talent that offers the right solution for a wealth of different tasks.

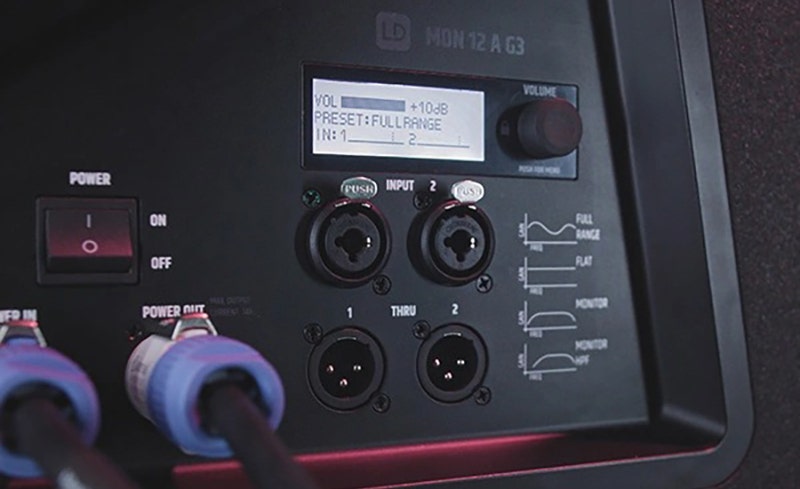

    Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

    LD Systems Mon 12 A G3 12" Full Range Powered Coaxial Stage Monitor Features

    • Compact high-performance stage monitor with top-of-the-range technologies
    • Class-D power amplifier with 300 W RMS/1200 W peak and 127 dB max. SPL
    • Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
    • 12" woofer with 2.5" voice coil
    • Optimised, practical radiation pattern due to 50° x 90° CD horn
    • DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
    • 3-band EQ, Notch filter, 4 application presets and delay function
    • PowerCON compatible loop-through professional power connection
    • 35 mm speaker stand flange for FOH applications

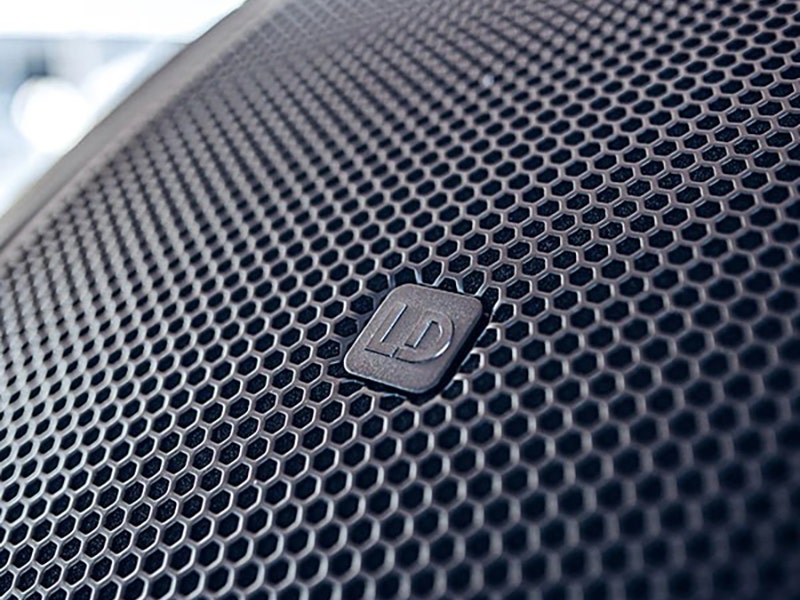

    • Durable Polyurea coating and heavy-duty front grille
    Shop Similar Models

    LD Systems Mon 12 A G3 12" Full Range Powered Coaxial Stage Monitor Specifications

    LD Systems Mon 12 A G3 12" Full Range Powered Coaxial Stage Monitor Specifications
    Product Specifications

    LD Systems Mon 12 A G3 12" Full Range Powered Coaxial Stage Monitor Specifications

    • Product type: Stage monitors
    • Type: Powered
    • Color: Black
    • System output (RMS): 300 W
    • System output (Peak): 1200 W
    • Max. SPL Average (Sine burst): 120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
    • Max. SPL Peak (Sine burst): 127 dB (fullspace @1m, 10% THD)
    • Frequency response (-3 dB): 68 - 18000 HZ
    • Frequency response (-10 dB): 55 - 20000 Hz
    • Crossover frequency: 1400 Hz
    • Monitor angle: 33°
    • Dispersion (H x V): 50° x 90°
    • Width: 425 mm
    • Depth: 453 mm
    • Height: 315 mm
    • Features: 3-band EQ (High, Mid, Low), Delay line, Notch filter
    • Weight: 17,4 kg
    • Low/mid woofer
    •  Low/mid Woofer dimensions: 12 "
    • Woofer dimensions (mm): 304.8 mm
    • Woofer magnet: Ferrite
    • Woofer brand: Custom-made
    • Woofer type: Coaxial loudspeaker
    • Woofer voice coil: 2.5 "
    • Woofer voice coil (mm): 65 mm
    • Cabinet construction: Bass Reflex
    • Cabinet material: 15 mm Birch Plywood, 15 mm MDF
    • HF - Horn: CD Horn
    • Tweeter dimensions: 1 "
    • Tweeter dimensions (mm):25.4 mm
    • Tweeter magnet: Ferrite
    • Tweeter brand: Custom-made
    • Tweeter voice coil: 1.75 "
    • Tweeter voice coil (mm) : 44.45 mm
    • Amplifier module (integrated)
    •  Amplifier: Class D
    • Protection circuits: Multiband limiter, over voltage, over-current, thermal overload
    • Operating Temperature: 0 - 40 °C
    • Humidity Range: < 80 % ( non-condensing )
    • Fuse: T4AL 250 V
    • Controls: On / off switch, Rotary/push encoder
    • Indicators: LC display
    • Operating voltage: SMPS
    • Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
    • Power consumption: 150 W
    • Power in / out: PowerCON compatible
    • Line inputs : 2
    • Line input connectors: 6.3 mm jack, XLR - combo
    • Line thru: 2
    • Line through connector: XL
