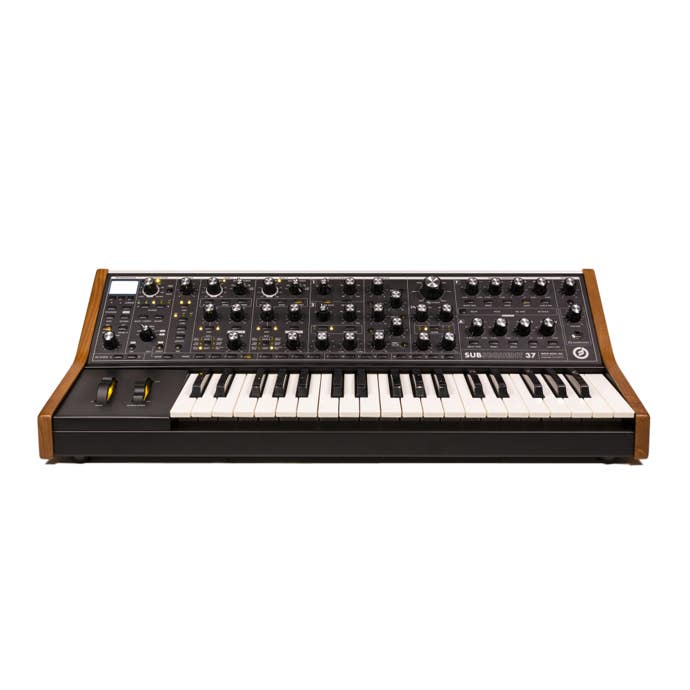

Product Specifications | Moog Subsequent 37 Analog Synthesizer Specifications
- SOUND ENGINE: 100% Analog
- POLYPHONY: Selectable Monophonic or Paraphonic
- KEYBED: 37-note Semi-weighted with After Pressure
- LCD: 128 X 64 pixel LCD with white backlight
- CONTROLLERS: Pitch Bend, Mod Wheel, After Pressure, Velocity
- SOUND SOURCES: 2 Variable Waveshape Oscillators, 1 Square Wave Sub Oscillator, 1 Analog Noise Generator, 1 External Input/Filter Feedback
- OSCILLATOR CALIBRATION RANGE: 22Hz-6.8KHz. Note range at 8’ = 18 - 116
- GLIDE MODULE: Assign to Osc1/Osc2/Both. Type - LCR, LCT, EXP, Gated, Legato
- FILTER: 20Hz-20KHz Moog Ladder Filter w/ 6/12/18/24 dB/Oct Filter Slopes and MultiDrive
- TRANSPOSITION: +/- 2 Octaves
- ARPEGGIATOR/SEQUENCER: Up, Down, Order, Random, Latching, Back/Forth, Invert, +/-2 Range, Tie, Rest, MIDI Sync, 64-note sequencer
- INPUTS/OUTPUTS:
- AUDIO INPUT: 1xTS
- AUDIO OUTPUT: 1xTS, 1xTRS Headphone with separate volume control
- PRESETS: 256 Presets - 16 Banks x 16 presets
- MIDI I/O: DIN In/Out, and MIDI over USB
- CV/GATE INPUTS: Filter CV, Pitch CV, Volume CV, KB Gate
- CV/GATE OUTPUTS: 4x Assignable CV, 2x Assignable Gate
- CV DESTINATIONS: KB Pitch (is also sequence pitch), Velocity, Aftertouch, Mod 1,
- Mod 1x Ctrl, Mod 2, Mod 2 x Ctrl, Filter EG, Amp EG, Pitch Wheel, Mod Wheel, Seq Mod, Duo Pitch.
- GATE DESTINATIONS: KB Gate (is also sequence gate),Ext. Gate, Arp/Seq Clock, Arp/Seq Run/Stop, Arp/Seq Step 1 Trig, Filt EG Trigger, Amp EG Trigger, LFO 1 Rate, LFO 2 Rate.
- DIMENSIONS (HxWxD): 6.75 x 26.75 x 14.75 inches
- WEIGHT: 22 lbs
- POWER: 110VAC-240VAC Universal Power Supply with IEC connector
|
