Neumann TLM 49 Vocal Condenser Microphone

Item
NEMTLM49

h m s

free-shipping-icon
In Stock!Order now!
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    Rock Now Pay LaterRock Now Pay Later

    Get the gear you want when you want it!

    With AMS 0% interest Payment Plans, you use your own credit or debit card, and we will never charge you any interest! We will split your order total equally across the plan that you have chosen.

    Your credit card will be charged every 31 days, automatically. It’s that easy!  Some plans require a credit check.

    Free Shipping - No Extra Charge!

    Our 4 state-of-the-art, strategically located warehouses are highly efficient and allow us to ship your gear in record time - and most orders will arrive at your door within 2 days for free. Shortly after you place your order, a Ship Confirmation email will arrive letting you know the order was picked, packed, and put on a truck. Full Details


    Shipping Map

    Free Extended WarrantyFree Extended Warranty

    12 Months EXTRA for Free!

    Many of our competitors charge 10% or more for an additional 12 months of warranty on the products they sell. AMS offers this exclusive benefit to our valued customers at no extra charge. Thousands of items on our site and in our catalog carry the "Gold Lock Extended Warranty" icon. It means you get the manufacturer's full warranty plus 12 additional months, FREE!!!

    45 Day Money Back Guarantee45 Day Money Back Guarantee

    Our 45 day return policy allows you to buy with confidence at AMS! If you are not completely satisfied with any item* purchased from AMS, return it to us within 45 days of the shipping date, and we will refund your money or help you with an exchange. That's always been our policy, and now we've added the ease of Electronic Return Labels!

    Canadian Shipping Information

    Welcome Canadian musicians! Buying your gear from AMS is as easy as going to a local music store, with more selection and more than competitive prices!

    Items with this logo are eligible to ship to Canada. Please note that you will be responsible for payment of brokerage fees, duties and other import taxes applicable to your order.

    NOTE: Free shipping offers do not apply to Canadian orders. Please be aware of custom fees - such as taxes and duties - when your order arrives. Since these fees vary from location to location, CUSTOMS FEES ARE NOT INCLUDED IN SHIPPING CHARGES. Please check with your local customs office for more information on the fees in your areas. Refusal to pay these fees will result in an undeliverable order. If returned, we do not refund shipping charges and may assess restocking fees to cover return shipping expenses.

    Non Factory Sealed Items

    Non Factory Sealed are items that have been opened but are in perfect physical condition such as customer returns, open box for product photos/videos, demo stock, etc. They have been carefully inspected and repacked by qualified AMS employees to help ensure your satisfaction, allowing you to get great gear at a discounted price. They include all components, manuals and the full Manufacturer's warranty unless otherwise stated, along with the AMS 45-day Money-Back Guarantee. Special offers, promotions and rebates may not apply. The following manufacturers do not offer a warranty on Non-Factory Sealed items: Casio, Ampeg, Avalon, Chauvet, Electro-Voice, Ibanez, Mackie, Martin, Peavey

    AMS AgentAMS Agent

    Have questions, found a better price?
    Talk to a sales specialist!

    800-319-9043

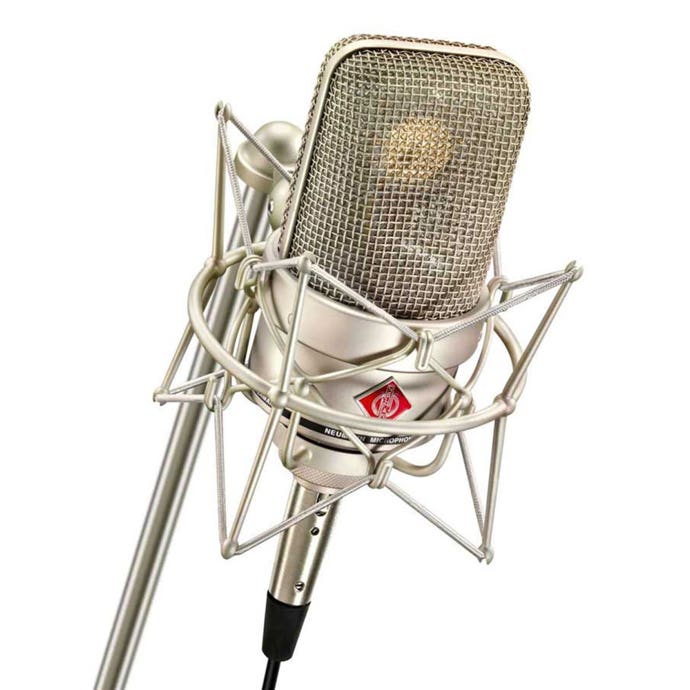

    The Neumann TLM 49 is a large-diaphragm studio microphone with a cardioid directional characteristic and a warm sound which is especially optimized for vocal performance.
    The TLM 49 is inspired by the legendary M49 and M50 microphones, and the sound design of the TLM 49 will inevitably be compared to the M4 and U47 classic microphones. By combining its retro look with proven Neumann transformerless circuit technology, this microphone ensures low self-noise and the use of high gain levels. It is supplied as a set, with an elastic suspension, the EA 3.

    Neumann TLM49 Features

    • Sound profile optimized for vocal performance
    • Pressure gradient transducer with the large-diaphragm capsule of the legendary U 47
    • Cardiod characteristic
    • Retro design
    • Transformerless output circuitry
    • Acoustically very open wire mesh headgrille
    • Complete set with elastic suspension

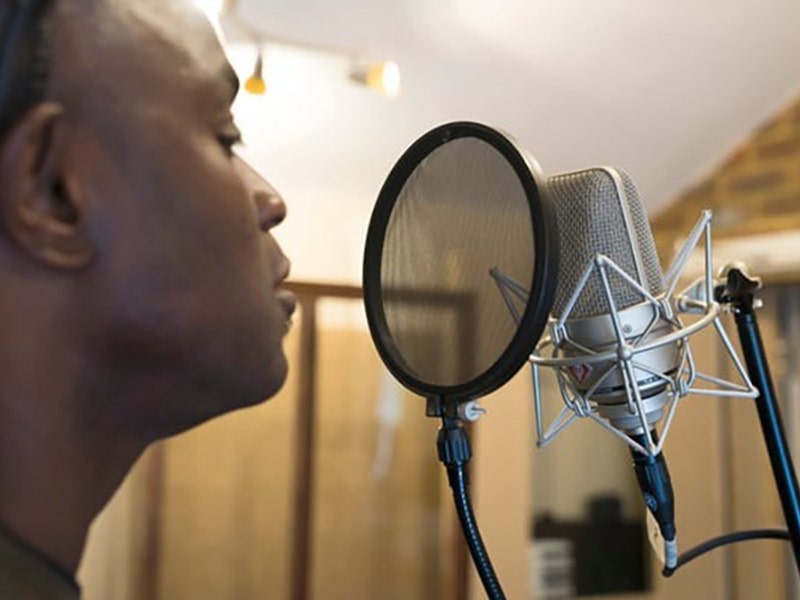

    TLM49 Applications
    During the development phase, the sound was adjusted in extensive practical tests, so as to make the TLM 49 ideal particularly for vocal and speech recording. However, in addition, it is also suitable for instrumental applications in professional production studios and demanding home recordings.

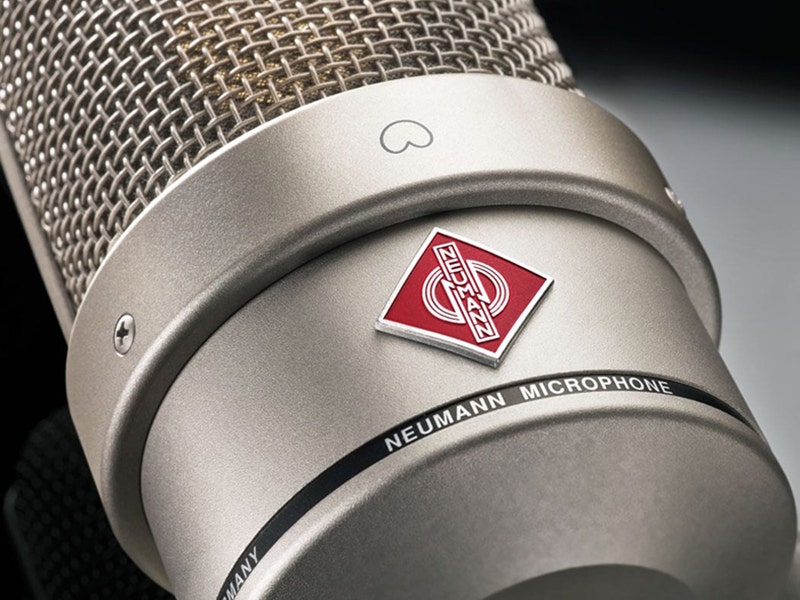

    Polar Patterns
    The large-diaphragm capsule of the TLM 49 provides a cardioid directional characteristic with a tendency toward supercardioid, due to the special capsule construction. Following the example of the M 49, high frequencies are more directional. The capsule diameter is 34 mm. The front of the microphone is indicated by the red Neumann logo on the microphone body. The capsule is oriented so that the microphone is addressed from the front.

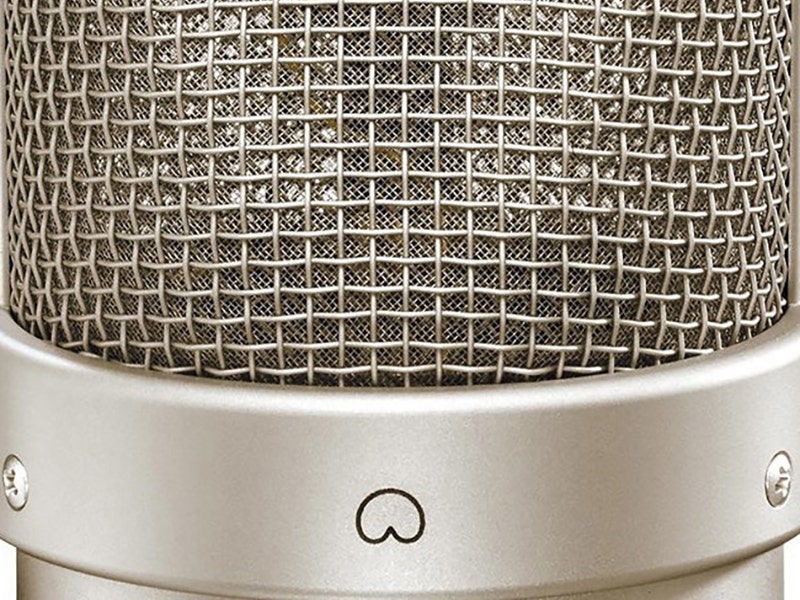

    Acoustic Features
    The TLM 49 uses the famous K 47 capsule, which was also used in the M 49 and the U 47. The capsule has a linear frequency response up to the upper mid-range. Above 2 kHz there is a gentle presence boost up to 3 dB. The capsule is enclosed by a large microphone headgrille, which is acoustically very open and is hence neutral with regard to the sound.

    Electrical Features
    The letters TLM stand for transformerless microphone. With TLM technology the usual output transformer is replaced by an electronic circuit. As with traditional transformers, it ensures good common mode rejection, and prevents RF interference that may influence the balanced audio signal.

    Noise signals which affect the balanced modulation line are therefore effectively suppressed. The microphone can operate at sound pressure levels of up to 114 dB without distortion, and provides a dynamic range of 102 dB (A-weighted).

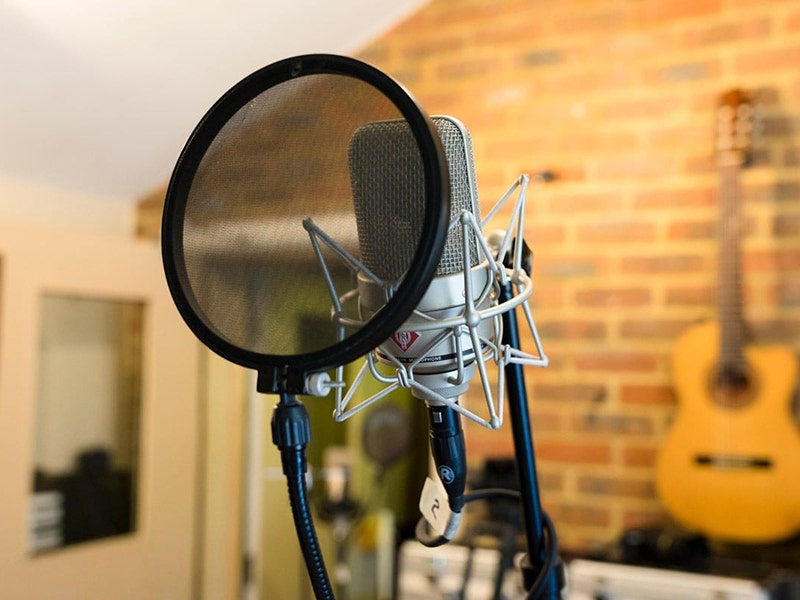

    Operational Reliability
    The entire interior structure is mounted elastically, to prevent the transmission of structure-borne noise. In addition, the capsule is mounted with a rubber shock mount. Due to the wide frequency response, the TLM 49 can also transmit extremely low-frequency signals without coloration.

    Of course this means that the microphone is also sensitive to noise signals such as vibration noise and wind noise in this frequency range. The TLM 49 is therefore supplied with the elastic suspension EA 3, which effectively protects the microphone from structure-borne noise. If the microphone is addressed at extremely close range, pop screen PS 15 or PS 20 a can be used in front of the microphone to provide protection against plosive sounds.

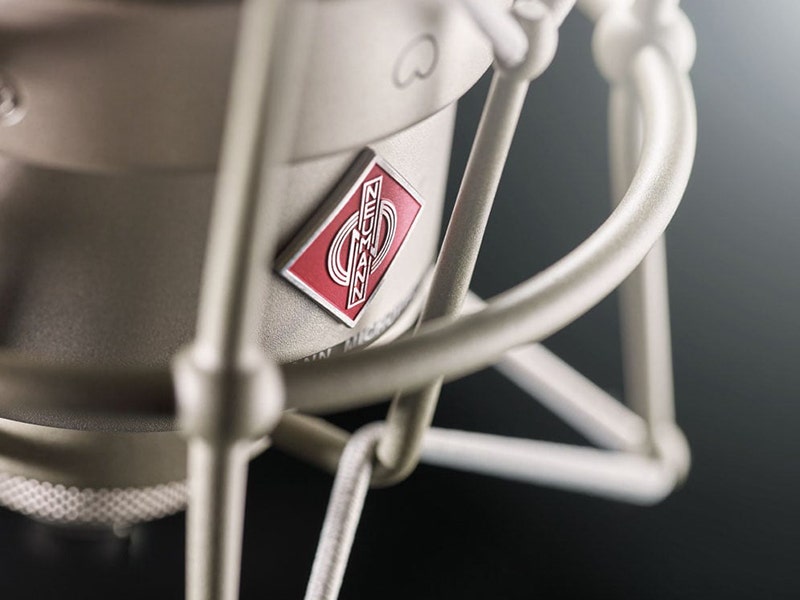

    TLM49 Application Hints
    • Vocal microphone: Lends richness, power and brilliance to the voice, while remaining balanced and transparent
    • Announcer’s microphone for broadcasting, dubbing and voiceovers
    • Spot microphone and for recording e.g. strings, piano and guitar
      These are just some of the most common applications. Neumann recommends additional experimentation to gain maximum use from this microphone.




    Shop Similar Models

    Neumann TLM 49 Vocal Condenser Microphone Specifications

    Neumann TLM 49 Vocal Condenser Microphone Specifications
    Product Specifications

    Neumann TLM49 Specifications

    • Acoustical Operating Principle: Pressure gradient transducer
    • Directional Pattern: Cardioid
    • Frequency Range: 20 Hz.20 kHz
    • Sensitivity at 1 kHz into 1 kOhm: 12 mV/Pa
    • Rated Impedance: 50 ohms
    • Rated Load Impedance: 1000 ohms
    • Signal-to-Noise Ratio, CCIR1 (rel. 94 dB SPL): 71 dB
    • Signal-to-Noise Ratio, A-weighted1 (rel. 94 dB SPL): 82 dB
    • Equivalent Noise Level, CCIR1: .23 dB
    • Equivalent Noise Level, A-weighted1: 12 dB-A
    • Maximum SPL for THD 0.5%: 114 dB
    • Maximum Output Voltage: 10 dBu
    • Dynamic Range of the Microphone Amplifier (A-weighted, 0.5%): 102 dB
    • Supply Voltage (P48, IEC 1938): 48 V ± 4 V
    • Current Consumption (P48, IEC 1938): 3.2 mA
    • Matching Connector: XLR3F
    • Weight: 825 g
    • Diameter: 78 mm
    • Length: 165 mm
