Neumann U87 Ai Set Z Multi Pattern Condenser Microphone

Name: Neumann U87 Ai Set Z Multi Pattern Condenser Microphone
Brand: Neumann
SKU: NEMU87AISETZNI
Rating: 5.00 (19 reviews)

Item

NEMU87AISETZNI

$3,750.00 - $7,495.00 $4,629.00 - $9,379.00 Save $4,629.00

h m s

Seen it for less?

Have questions, found a better price?
Talk to a sales specialist!

800-319-9043

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Neumann U87 Ai Set Z Multi Pattern Condenser Microphone Black

Overview

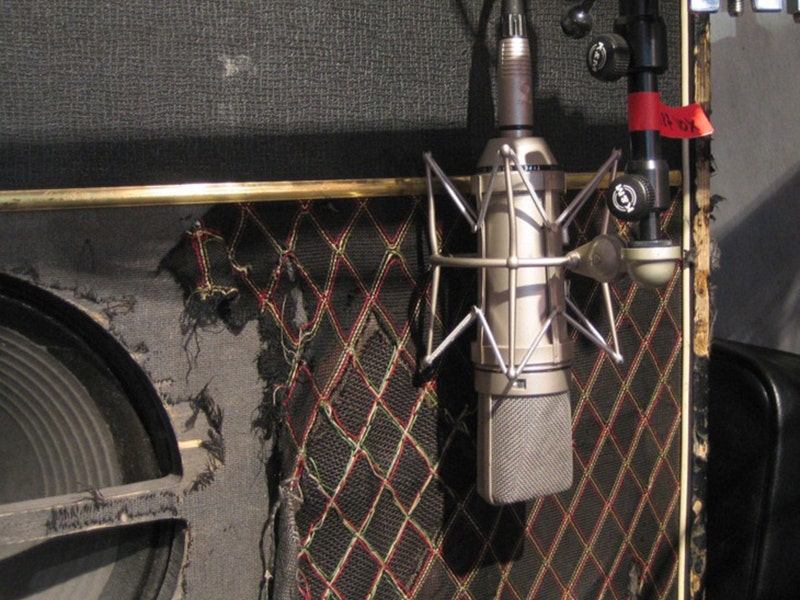

The U 87 presents a wide range of features and versatility that make it to one of the most desirable mics available. Our users are recognising the microphone immediately by its distinctive design. Well-known for its warm and well balanced characteristics - your perfect choice as vocal microphone for all types of music and speech. The usage as main microphone for orchestra recordings or as spot mic for single instruments make it the most general-purpose microphone - in studios, for broadcasting, film and television.

Neumann U87Ai Microphone Features

Variable large diaphragm microphone
Pressure-gradient transducer with double membrane capsule
The studio microphone classic
Three directional characteristics: omni, cardioid, figure-8
Switchable low frequency roll-off
Switchable 10 dB pre-attenuation
Ideal as main and as support microphone in the most differing recording situations

Applications
The U 87 Ai condenser microphone is a large diaphragm microphone with three polar patterns and a unique frequency and transient response characteristic. Users recognize the microphone immediately by its distinctive design. It is a good choice for most general purpose applications in studios, for broadcasting, film and television. The U 87 Ai is used as a main microphone for orchestra recordings, as a spot mic for single instruments, and extensively as a vocal microphone for all types of music and speech.

Applications

For universal use
The classical studio mic for vocalists (soloists and background vocalists)
Announcer's mic for broadcasting, dubbing, voice-over
Overhead
Spot mic for:
- wind instruments
- strings (especially cello and double bass)
- piano
- percussion

Note: To record instruments with very high sound pressure levels Neumann recommends their mics with TLM circuitry. These are just some of the most common applications. Neumann recommends additional experimentation to gain maximum use from this microphone.

Acoustic Features
The U 87 Ai is addressed from the front, marked with the Neumann logo. The frequency response of the cardioid and figure-8 directional characteristics are very flat for frontal sound incidence, even in the upper frequency range. The microphone can be used very close to a sound source without the sound becoming unnaturally harsh. By means of a high-pass filter interferences through subsonic and low frequencies are reduced remarkably.

Polar Patterns
The dual-diaphragm capsule is elastically mounted and protected by a large headgrille. A switch below the headgrille selects the three directional patterns: omnidirectional, cardioid and figure-8. A window above this switch shows the symbol of the selected characteristic.

Electrical Features
The letter A in the name indicates a more recent generation, as compared to the U 87 i microphones that were built from 1967 to 1986. Modifications apply to the electronic components of the microphone only; the capsule remained unchanged.

The present-day circuitry increases the operational headroom of the U 87 Ai by supplying the bias voltages for the capsule through a reduced resistance. The result is a higher sensitivity of 10 dB for identical sound pressure levels, and an improved S/N ratio of 3 dB.

Filter and Attenuation
A switch located at the rear attenuates the sensitivity by 10 dB. When this switch is activated, the microphone accepts sound pressure levels up to 127 dB (equivalent to a sound pressure of 45 Pa) without distortion.

An additional switch at the rear allows to change the microphone's cutoff frequency. This reduces low frequency interference directly at the input of the microphone amplifier.

This setting also compensates for the unavoidable bass boost that occurs with all pressure gradient transducers when they are used at close distance (proximity effect).

The cardioid characteristic maintains a smooth frequency response at a distance of 30 to 40 cm, the figure-8 characteristic even at a distance of 15 to 20 cm

See all items from NEUMANN

Shop Similar Models

Neumann

About the Manufacturer

Phone: 860-434-9190

Warranty: 2 Years

Specifications

Neumann U87 Ai Set Z Multi Pattern Condenser Microphone Specifications

Neumann U87 Ai Set Z Multi Pattern Condenser Microphone Specifications
Product Specifications	Neumann U87 Ai Specifications: Acoustical operating principle: Pressure gradient transducer Directional pattern: Omnidirectional, cardioid, figure-8 plus Frequency range: 20 Hz - 20 kHz Sensitivity at 1 kHz into 1 kohm: 20/28/22 mV/Pa* Rated impedance: 200 ohms Rated load impedance: 1000 ohms Equivalent SPL CCIR 468-3: 26/23/25 dB* Equivalent SPL DIN/IEC 651: 15/12/14 dB-A* S/N ratio CCIR 468-3: 68/71/69 dB* S/N ratio DIN/IEC 651: 79/82/80 dB* Maximum SPL for THD 0.5%: 117 dB (cardioid) Maximum SPL for THD 0.5% with preattenuation: 127 dB Maximum output voltage: 390 mV Dynamic range of the microphone amplifier cardioid (A-weighted): 105 dB Supply voltage: 48 V Â± 4 V Current consumption: 0.8 mA Matching connectors: XLR3F Weight: 500 g Diameter: 56 mm Length: 200 mm
