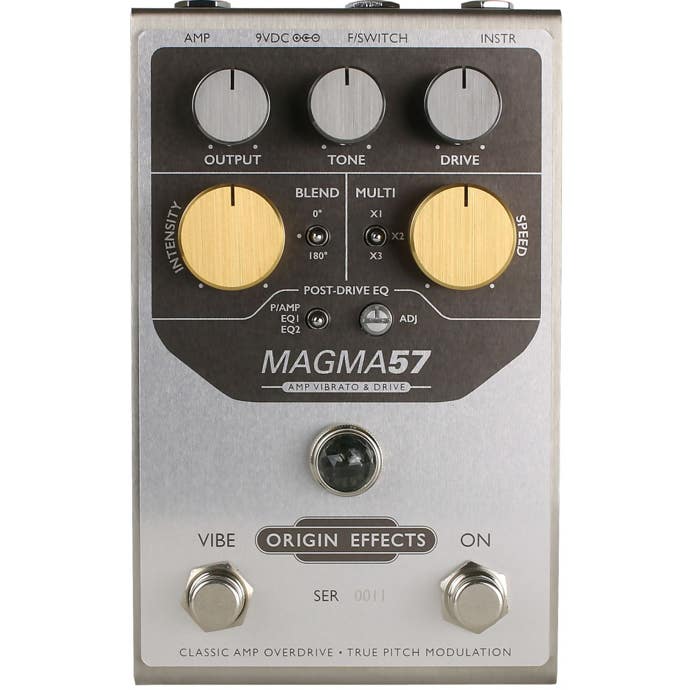

Origin Effects MAGMA57 Amp Vibrato and Drive Pedal
3
1 Review
0% Interest
Payment Plan
Don’t sell your soul to a creditor to get the gear you need. At AMS, we want to lower the barriers to create. That’s why we offer in-house 0% financing, and you don’t even have to open a new line of credit! Spread out payments on your credit card to simplify financing and avoid hefty late fees or service charges. Cost shouldn’t interfere with your creativity.
Earn rewards every time you shop at AMS. You'll collect points on eligible purchases that turn into promotional savings on future gear, with points typically available several days after your order ships. All you need is a free AMS account — no credit card, financing, or payment plan required.
The more you shop, the more you earn. Create a free account and start earning from your very first eligible purchase. Rewards are applied as a discount on future eligible purchases.
Earn points on eligible purchases with AMS Rewards and turn them into savings on future orders, no credit card required. You can apply points at checkout once they’re available.
Eligible to earn $24.45 for this purchase
OR
8 Payments of $61.13
6 Payments of $81.50 No Credit Check
Compare
Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!
Opt in for Notifications on this product for the price drops, stock changes and promotions
The unique MAGMA57 Amp Vibrato and Drive pedal accurately captures the legendary pitch-shifting vibrato effect found in vintage Magnatone® amps.
Origin Effects MAGMA57 Amp Vibrato and Drive Pedal Features
True two-stage pitch-shifting vibrato, as found in the Magnatone® 260/280
Switchable blend modes to combine wet and dry signals in- and out-of-phase
Complete valve amp-style signal path recreated in all-analogue electronics
Powerful tone-shaping Post-Drive EQ
Footswitch input for tap tempo and effects switcher integration
High-current, low-noise electronics
High-quality buffered bypass
Advanced power supply filtering and protection
Premium components throughout
Designed and built in England
Origin Effects used all-analogue components to recreate this unique and sought-after effect at circuit level. Origin Effects also added a three-way Blend switch that combines the wet and dry signals in different
ways to deliver three distinct modulation modes: pure Magnatone® pitch modulation, Uni-Vibe-style phasing and a unique chorus effect.
Alongside a range of modern features like tap tempo, rhythmic subdivisions and effects switcher integration, the MAGMA57 also houses a complete valve amp-style signal path. Built on the same platform as our groundbreaking RevivalDRIVE and inspired by the original Magnatone® amps, the pedal’s amp circuitry delivers complex clean and overdriven tones dripping with vintage vibe.
Meanwhile, the powerful Post-Drive EQ section will make sure that the MAGMA57’s stunning range of tones will sound their best whether it’s plugged into an amp, flat-response power amp, mixer or recording interface.
CONTROLS:
VIBE footswitch – Switches the vibrato effect on and off. When VIBE is turned on the jewel light will turn white and will pulse at the selected vibrato speed.
DRIVE – behaves like the Volume knob on a vintage non-master-volume guitar amplifier. Set low for clean sounds or turn it up for more overdrive.
TONE – Turn up for a brighter sound. Turn down to tame highs.
OUTPUT – overall pedal output level
SPEED – Turn up to increase the rate of the vibrato effect. The range of the SPEED control is set by the three-position MULTI switch.
MULTI – applies a preset multiplier to the speed of the vibrato, whether it is set by the pedal’s SPEED knob or by attaching an external tap tempo footswitch.
SHAPE – allows you to choose between two different LFO waveforms.
INTENSITY – controls the depth of the vibrato.
POST-DRIVE EQ – three presets allow quick compatibility when plugging into Blackface, Plexi, and flat-response amps. Fine-tune the top-end further with the ADJ trimmer.
“MAGNATONE® is a registered trademark of Magnatone, LLC. Origin Effects has no affiliation with Magnatone, LLC.”
Origin Effects MAGMA57 Amp Vibrato and Drive Pedal Specifications
Item #:
ORI MAGMA57
Manufacturer Part Number:
OEX-0018-00
UPC:
0757349209952
Product Specifications
Origin Effects MAGMA57 Amp Vibrato and Drive Pedal Specifications
CONNECTIONS:
INSTR: Insert your guitar, other instrument or signal source here.
AMP: Connect to your amp, power amp, mixer or recording interface. If you’re playing through
something other than a guitar speaker (e.g. PA speakers, studio monitors, headphones or direct recording), we strongly recommend using a speaker simulator after the MAGMA57.
9VDC: Connect a 9V DC 2.1mm centre-negative mains power adaptor that can supply at least 120mA.
F/SWITCH: The F/SWITCH input allows you to connect an external footswitch or effects switching system to remotely control the following parameters:
Tap tempo: Remotely sets the speed of the modulation effect. The F/SWITCH input detects tap rate by sensing the time between any two taps/pulses. The rate you set will then be multiplied according to the position of the MULTI switch.
Vibe on/off: Remotely switches the modulation effect on or off, overriding the pedal’s own VIBE footswitch.
PERFORMANCE SPEC:
Input impedance: 1M O
Output impedance: 1k O
Current draw: 100mA
Power supply requirements: 9VDC 2.1mm centre negative connector
Origin Effects MAGMA57 Amp Vibrato and Drive Pedal Specifications
Product Specifications
Origin Effects MAGMA57 Amp Vibrato and Drive Pedal Specifications
CONNECTIONS:
INSTR: Insert your guitar, other instrument or signal source here.
AMP: Connect to your amp, power amp, mixer or recording interface. If you’re playing through
something other than a guitar speaker (e.g. PA speakers, studio monitors, headphones or direct recording), we strongly recommend using a speaker simulator after the MAGMA57.
9VDC: Connect a 9V DC 2.1mm centre-negative mains power adaptor that can supply at least 120mA.
F/SWITCH: The F/SWITCH input allows you to connect an external footswitch or effects switching system to remotely control the following parameters:
Tap tempo: Remotely sets the speed of the modulation effect. The F/SWITCH input detects tap rate by sensing the time between any two taps/pulses. The rate you set will then be multiplied according to the position of the MULTI switch.
Vibe on/off: Remotely switches the modulation effect on or off, overriding the pedal’s own VIBE footswitch.
PERFORMANCE SPEC:
Input impedance: 1M O
Output impedance: 1k O
Current draw: 100mA
Power supply requirements: 9VDC 2.1mm centre negative connector
