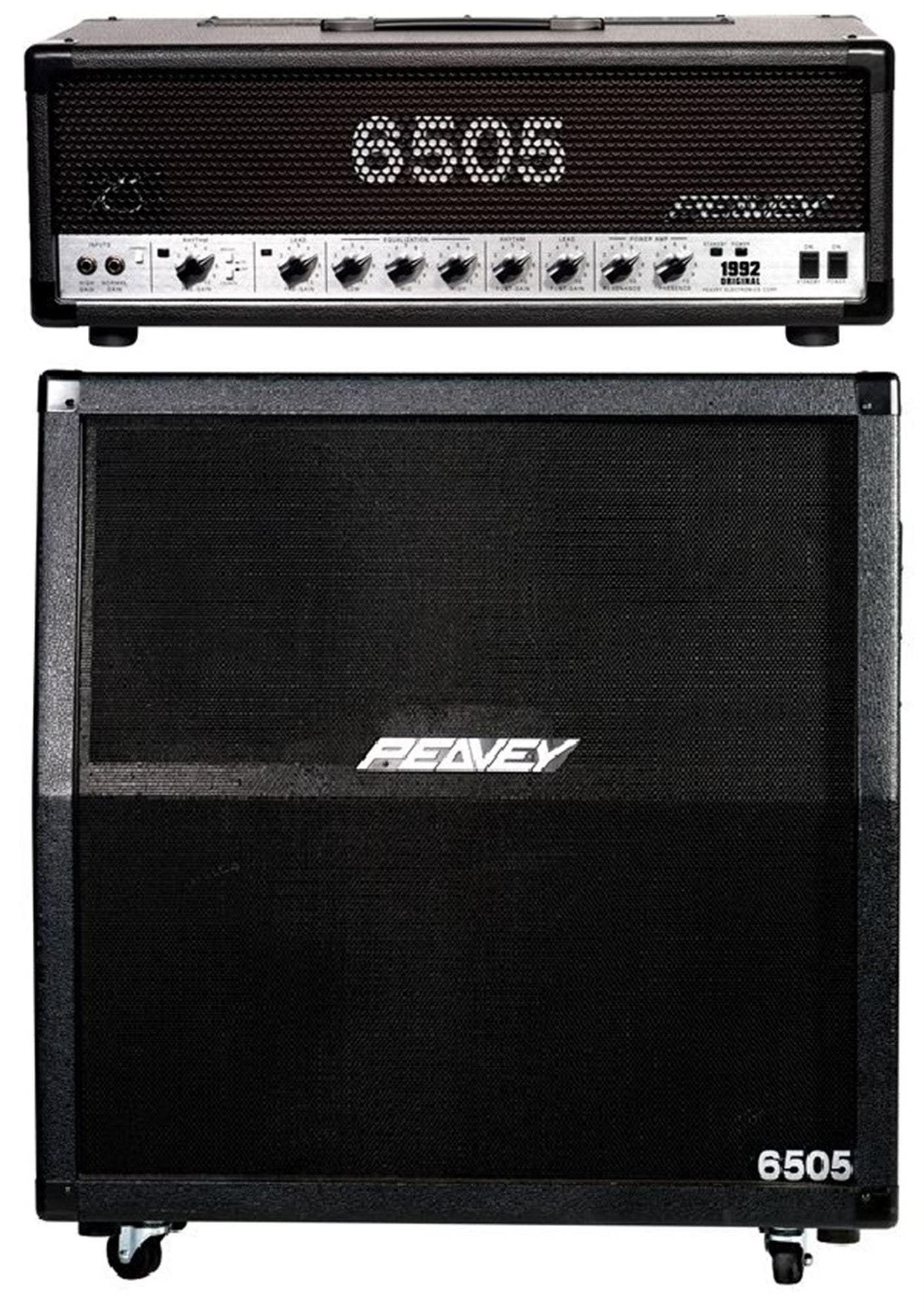

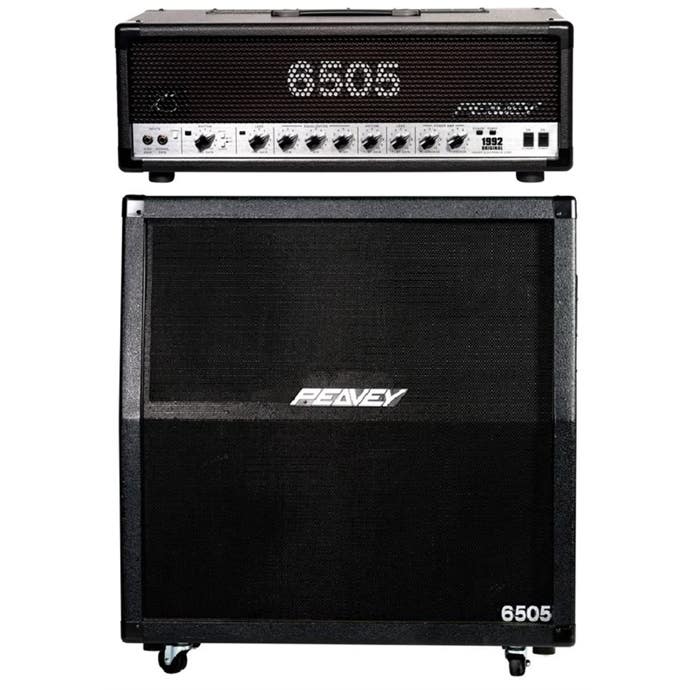

Peavey 6505 1992 Guitar Amplifier Head with 6505 Reissue 412 Slant Cabinet
Head and Cab stack
0 Reviews
Write a review
0% Interest
Payment Plan
Don’t sell your soul to a creditor to get the gear you need. At AMS, we want to lower the barriers to create. That’s why we offer in-house 0% financing, and you don’t even have to open a new line of credit! Spread out payments on your credit card to simplify financing and avoid hefty late fees or service charges. Cost shouldn’t interfere with your creativity.
Earn rewards every time you shop at AMS. You'll collect points on eligible purchases that turn into promotional savings on future gear, with points typically available several days after your order ships. All you need is a free AMS account — no credit card, financing, or payment plan required.
The more you shop, the more you earn. Create a free account and start earning from your very first eligible purchase. Rewards are applied as a discount on future eligible purchases.
Earn points on eligible purchases with AMS Rewards and turn them into savings on future orders, no credit card required. You can apply points at checkout once they’re available.
Eligible to earn $104.95 for this purchase
OR
12 Payments of $175.00
6 Payments of $208.33 +$849.99 down No Credit Check
Compare
Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!
Opt in for Notifications on this product for the price drops, stock changes and promotions
The 6505 1992 guitar amp head is drenched in classic tube tone! Authentically produces the much loved tones of the legendary Peavey 6505.
The Peavey 6505 Reissue 412 Slant guitar cabinet has been designed to the exacting specifications of our original 1992 version with a few basic updates that have been requested by countless artists over the years. Each cabinet features four 12" Sheffield 1230+ specially-voiced speakers loaded in a biplanar-aligned, infinite baffle, 300W closed-back cabinet. Dual 1/4" jacks with Stereo/Mono selector, solid Birch plywood construction, recessed handles, and heavy-duty pop-out casters complete the package.
Peavey 6505 Reissue 412 Slant Guitar Cabinet Features
Four 12" Sheffield 1230+ speakers
300W handling
Dual 1/4" jacks
Stereo/Mono switch
High-density Birch plywood construction
Recessed handles
Heavy-duty pop-out casters
16 ohms mono, 8 Ohms per side stereo
Peavey 6505® Reissue 412 Slant Guitar Cabinet
The 6505® series amplifiers and enclosures are the result of extensive research and development to produce the ultimate products for guitarists. With the 6505 1992 Original, 6505 II, and 6505 MH heads, you'll experience super rock crunch, harmonic-rich sustain, and screaming drive like you've never heard before. Production models are identical to those used by countless legendary artists for recording, as well as on tour.
Warranty: 2 Years on Guitars/Basses, Amp, Pre-Amps, Mixers, Electronic Crossovers & EQs; 2 Years on Drums; 2 Years on Enclosures; 1 Year on Digital Effects, Keyboard & MIDI Controllers; 2 Years on Mics; 1 Year on Speaker Components (including replacement parts) & All Accessories; 90 Days on Tubes & Meters
Peavey 6505 1992 Guitar Amplifier Head with 6505 Reissue 412 Slant Cabinet Specifications
Item #:
PEV 6505992 STK2
Manufacturer Part Number:
PEV 6505992 STK2
UPC:
88880000000000216122
Product Specifications
Peavey 6505 1992 Guitar Amplifier Head Specifications
Power Amplifier Section:
Rated Power & Load: 120 W RMS into 16, 8, or 4 ohms
Power @ Clipping: (Typically @ 5% THD, 1 kHz, 120 V AC line) 130 W RMS into 16, 8, or 4 ohms (Bias must be reduced to measure)
Frequency Response: +0, -3 dB, 50 Hz to 20 kHz, @ 100 W RMS into 8 ohms
Hum & Noise: Greater than 75 dB below rated power
Power Amp EQ: Active Presence: +10 dB 2 kHz
Active Resonance: +10 dB @ cabinet resonant frequency
Power Consumption: (Domestic) 400 watts 50/60 Hz, 120 V AC
Preamp Section: The following specs are measured @ 1 kHz with the controls preset as follows:
Low & High EQ @ 0
Bright out
Lead & Rhythm Post @ 10
Presence & Resonance @ 0 dB
Nominal levels with Pre Gains @ 5
Minimum levels with Pre Gains @ 10
Preamp High Gain Input:
Impedance: Very high Z, 470K ohms
Lead Channel (with channel select in):
Nominal Input Level: -80 dBV, -1 mV RMS
Minimum Input Level: 92 dBV. /025 mV RMS
Clean Channel (with channel select out):
Nominal Input Level: +34 dBV, 20 mV RMS
Minimum Input Level: -50 dBV, 3 mV RMS
Maximum Input Level: 0 dBV, 1.0 V RMS (Subtract 16 dB with Crunch switch in)
Preamp Low Gain Input: (-6 dB pad)
Impedance: High Z 44K ohms
All levels are increased by +6 dB
Effects Send:
Load Impedance: 47K ohms or grater
Nominal Output: -10 dBV, 300 mV RMS
Effects Return:
Impedance: Very high Z, 470K ohms
Designed Level: -10 dBV, 300 mV RMS
Preamp Output:
Load Impedance: 47K ohms or grater
Nominal Output: +10 dBV, 3 V RMS
Remote Footswitch: Special 2 button unit with LED indicators (supplied) Channel select & Effects loop bypass
System Hum & Noise @ Nominal Level: (Clean channel) 120 Hz to 20 kHz unweighted) Greater than 74 dB below rated power
Equalization:
Custom Low, Mid & High passive type EQ Push
Bright, (Rhythm channel only)
+6 dB @ 2 kHz
Push Crunch (Rhythm channel only) Increases gain
Peavey 6505 1992 Guitar Amplifier Head with 6505 Reissue 412 Slant Cabinet Specifications
Product Specifications
Peavey 6505 1992 Guitar Amplifier Head Specifications
Power Amplifier Section:
Rated Power & Load: 120 W RMS into 16, 8, or 4 ohms
Power @ Clipping: (Typically @ 5% THD, 1 kHz, 120 V AC line) 130 W RMS into 16, 8, or 4 ohms (Bias must be reduced to measure)
Frequency Response: +0, -3 dB, 50 Hz to 20 kHz, @ 100 W RMS into 8 ohms
Hum & Noise: Greater than 75 dB below rated power
Power Amp EQ: Active Presence: +10 dB 2 kHz
Active Resonance: +10 dB @ cabinet resonant frequency
Power Consumption: (Domestic) 400 watts 50/60 Hz, 120 V AC
Preamp Section: The following specs are measured @ 1 kHz with the controls preset as follows:
Low & High EQ @ 0
Bright out
Lead & Rhythm Post @ 10
Presence & Resonance @ 0 dB
Nominal levels with Pre Gains @ 5
Minimum levels with Pre Gains @ 10
Preamp High Gain Input:
Impedance: Very high Z, 470K ohms
Lead Channel (with channel select in):
Nominal Input Level: -80 dBV, -1 mV RMS
Minimum Input Level: 92 dBV. /025 mV RMS
Clean Channel (with channel select out):
Nominal Input Level: +34 dBV, 20 mV RMS
Minimum Input Level: -50 dBV, 3 mV RMS
Maximum Input Level: 0 dBV, 1.0 V RMS (Subtract 16 dB with Crunch switch in)
Preamp Low Gain Input: (-6 dB pad)
Impedance: High Z 44K ohms
All levels are increased by +6 dB
Effects Send:
Load Impedance: 47K ohms or grater
Nominal Output: -10 dBV, 300 mV RMS
Effects Return:
Impedance: Very high Z, 470K ohms
Designed Level: -10 dBV, 300 mV RMS
Preamp Output:
Load Impedance: 47K ohms or grater
Nominal Output: +10 dBV, 3 V RMS
Remote Footswitch: Special 2 button unit with LED indicators (supplied) Channel select & Effects loop bypass
System Hum & Noise @ Nominal Level: (Clean channel) 120 Hz to 20 kHz unweighted) Greater than 74 dB below rated power
Equalization:
Custom Low, Mid & High passive type EQ Push
Bright, (Rhythm channel only)
+6 dB @ 2 kHz
Push Crunch (Rhythm channel only) Increases gain
