The Phenyx Pro PAS-225X Antenna Distribution System is built for audio professionals who refuse to let RF interference crash the party. By intelligently amplifying and distributing antenna signals across multiple wireless receivers, this active antenna distribution amplifier keeps your entire wireless microphone system running clean, stable, and drama-free — no matter how crowded the RF environment gets.

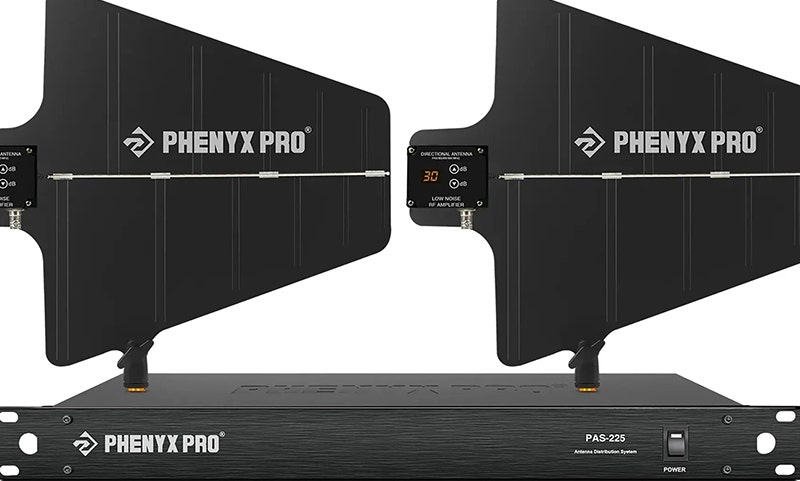

One Antenna Pair to Rule Them All
Managing a rack of wireless microphone systems usually means a spaghetti mess of antennas all fighting for real estate and signal. The PAS-225X cleans up that chaos by letting a single pair of antennas do the heavy lifting for multiple receivers simultaneously. It's like carpooling, but for RF signals — and everyone actually shows up on time.
Wide RF Compatibility (400–950 MHz): Works with most major wireless microphone systems out of the box, so you're not locked into a single brand or ecosystem when building out your wireless setup.
Up to 8dB Gain Amplification: Compensates for insertion loss and pushes your receive signal range up to 160 feet, giving your wireless microphones the breathing room they need to perform without cutting out mid-sentence.
Cascade Port Expansion: Share one antenna pair with up to five dual wireless receivers, and chain a second PAS-225X via the cascade ports when your rig demands even more coverage — because one is never enough at a big show.

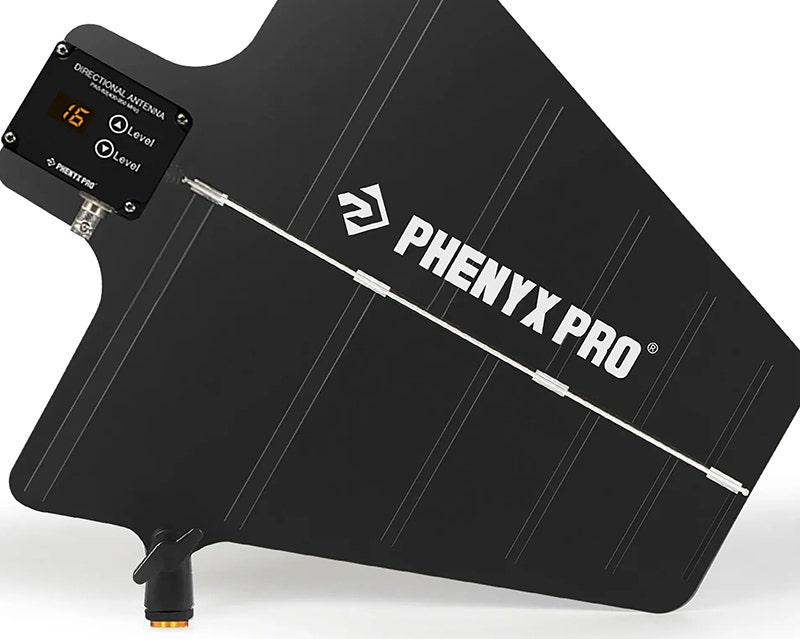

Built to Fight RF Interference Head-On
Crowded wireless environments are basically a fistfight for bandwidth, and the PAS-225X shows up ready to throw hands. Its external directional antennas are engineered with a log-periodic array and cardioid pickup pattern that zeroes in on your desired coverage zone while rejecting stray RF signals trying to muscle in from the sides. Less noise in means cleaner, stronger audio out.
Log-Periodic Directional Antennas: The cardioid pattern focuses signal reception toward your performers and actively rejects interference from outside the coverage zone — keeping your audio clean even in the most RF-saturated venues.
Visualized LCD with 16 Gain Settings: A clear onboard display gives you real-time control over both paddle antennas independently, so you can dial in the exact gain needed to punch through walls, distance, or whatever the venue throws at you.
Interference-Free, Dropout-Free Performance: Whether you're running a corporate conference, a live concert, or an outdoor festival, the PAS-225X is designed to deliver noise-free wireless transmission without the white-knuckle moments.

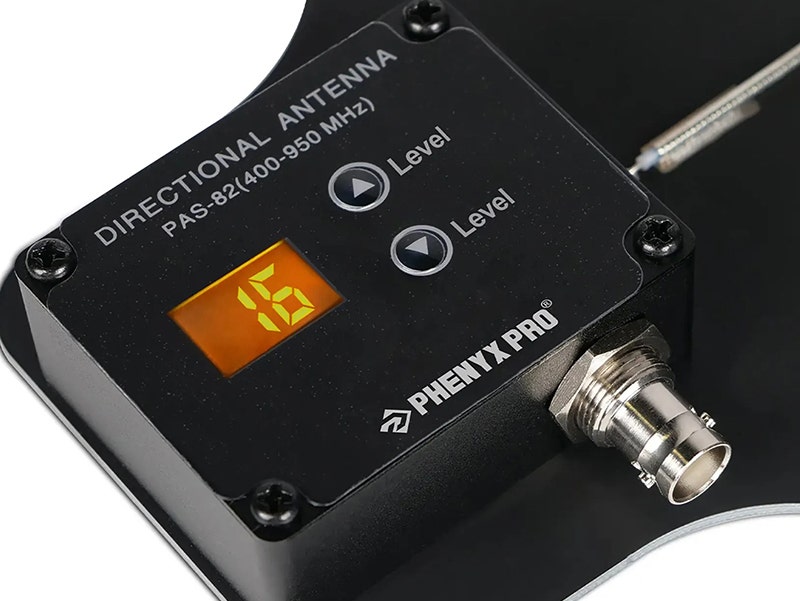

Road-Ready Build That Doesn't Quit
Gear that looks great in a catalog but falls apart on the road is basically useless. The PAS-225X is housed in a sturdy all-metal chassis built to absorb the punishment of live production without flinching. It ships with everything you need to get connected right out of the box — because nobody wants to make an emergency run to the electronics store the morning of a show.
Full Metal Housing: A rugged metal enclosure protects the internal components against the bumps, drops, and general abuse that comes with gigging — because your antenna distributor should outlast your patience for bad sound.
Complete Cable Kit Included: Comes with 12 BNC cables and 4 DC power cables right in the box, providing all the flexible connection options you need to get your wireless system up and running without hunting for accessories.
Versatile Mounting Options with Free Carrying Case: Both antennas mount on stands or walls for optimal placement, and the included carrying case makes transport and storage genuinely painless — a small luxury that adds up fast on busy event days.

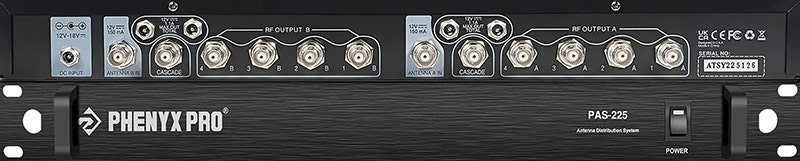

The System Your Wireless Rig Deserves
If wireless dropouts have been the uninvited guest at your events, the Phenyx Pro PAS-225X is the solution that shows them the door for good. It simplifies complex multi-receiver setups, extends signal range, and delivers the kind of reliable RF performance that lets audio professionals focus on the show rather than the signal chain.
For stage performances, live shows, houses of worship, and outdoor events, this active antenna splitter and distribution amplifier punches well above its price point and earns its rack space every single time.
Phenyx Pro PAS-225X Features:
Active antenna distribution system compatible with most wireless microphone systems from 400–950 MHz
Up to 8dB gain to compensate for insertion loss and extend wireless receive range up to 160 feet
Shares one antenna pair with up to five dual wireless receivers via cascade ports
Supports connection of a second PAS-225X unit via external cascade ports for expanded capacity
External log-periodic directional antennas with cardioid pattern for targeted RF reception and interference rejection
LCD display with 16 independent gain settings for both paddle antennas
Delivers interference-free, dropout-free, and noise-free performance across varying distances and environments
All-metal housing for durable, road-ready construction
Includes 12 BNC cables and 4 DC power cables for flexible system integration
Antennas mountable on stands or walls for optimal placement
Free carrying case included for transport and storage
Phenyx Pro PAS-225X Antenna Distribution System Specifications
Phenyx Pro PAS-225X Antenna Distribution System Specifications
Product Specifications
Antenna Type: Log periodic array
Antenna RF Frequency Range: 400-950 MHz
Antenna Power Requirement: DC 10V
Antenna Impedance: 50O
Antenna Gain: 7.5 dBi
Receiver Frequency Range: 400-950 MHz
Receiver Antenna Type: BNC
Receiver Impedance: 50O
Receiver Output External Power: DC 12V, 800mA
Frequently Asked Questions
The PAS-225X works with most wireless microphone systems operating within the 400–950 MHz RF frequency range. It's a wide-compatible active antenna distributor, making it a flexible addition to multi-brand wireless setups.
It can distribute signal from one antenna pair to up to five dual wireless receivers simultaneously. You can also chain a second PAS-225X unit through the cascade ports to expand capacity even further.
With up to 8dB of gain, the PAS-225X can extend your wireless receive range up to 160 feet. The gain also compensates for insertion loss, ensuring consistent signal quality throughout your wireless system.
Yes, its external log-periodic directional antennas use a cardioid pickup pattern to focus on your coverage zone while rejecting RF interference from outside that area. Combined with the 16-step gain control, it's specifically engineered to eliminate dropouts and noise in busy RF environments.
Yes, the PAS-225X ships with 12 BNC cables, 4 DC power cables, and a carrying case. Everything you need to connect and deploy your antenna distribution system is included right out of the box.
