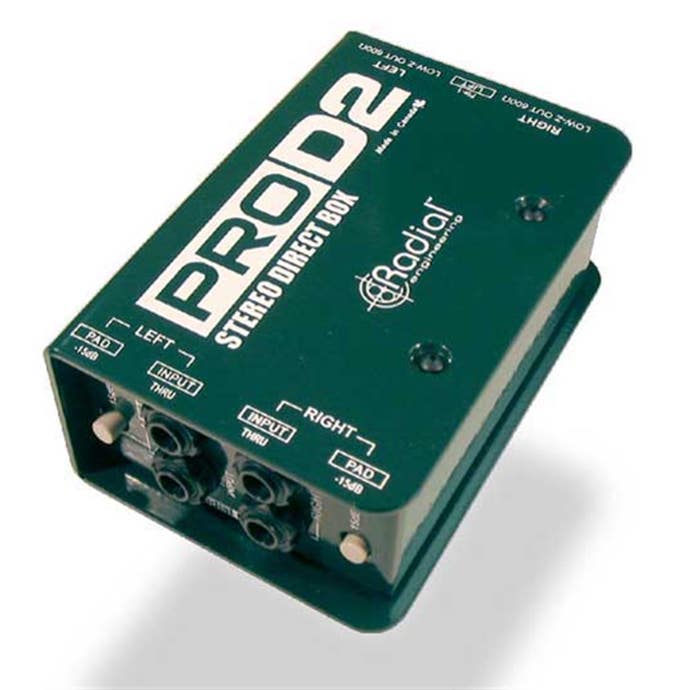

Radial Pro D2 Stereo Passive Direct Box

4.9
11 Reviews
$209.99

Eligible to earn $10.45 for this purchase

OR

6 Payments of $35.00
No Credit Check

ConditionsNew
New
In Stock!

h m s

Get It August 22nd
free-shipping-icon
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    AMS Agent

    Have questions?
    Talk to a sales specialist!

    800-319-9043

    Frequently Bought Together
    +
    4.8
    13 Reviews
    $23.50
    +
    4.9
    256 Reviews
    $109.00
    =
    $342.49
    8 Payments of $42.81
    The Radial Pro D2 is a pro-quality compact stereo passive DI.
    Following in the footsteps of the JDI Duplex, the Radial Pro D2 is a high-quality compact passive 2-channel stereo direct box designed for keyboards, DJ equipment and guitars and priced to be attractive to regional sound companies and project studios. Exceptionally linear from 20Hz to 20kHz, the Pro D2 features two custom made transformers engineered to handle high levels without saturation.

    Radial Pro D2 Features
    • Full range passive direct boxes
    • Isolation transformer eliminates noise
    • Very low harmonic and phase distortion
    • Compact and rugged design
    • Ideal for live sound and studio
    Since they introduced the Radial JDI back in 1996, customers have asked Radial to produce a more affordable passive direct box so that home studios, small sound companies and community centers can enjoy some of the benefits of using a JDI. The Radial JDI is very special in that it employs a $100 Jensen Audio Transformer as the engine that performs the impedance conversion and the isolation. Radial searched high and low to find a more affordable alternative, but no matter how hard we looked, the quality was never close. The Jensen is truly perfect!

    This left them with only one choice: to have a custom-made transformer built to their specifications. Although not quite as good as the Jensen, this new proprietary transformer is light years ahead of the competition and features many of the attributes that makes the Jensen unique. The difference, however, is that now Radial can offer the ProDI and ProD2 direct boxs for less than half the price of the JDI and JDI Duplex!

    The Radial ProD2 features standard hi-Z inputs and thru-puts 1/4-inch connectors, -15dB input pads and ground-lift switches for each channel. The balanced output is 600 Ohm to interface with professional snake systems and consoles. All switches are recessed in a protective bookcover zone to shield against damage from the road.

    Performance is amazing: linear from 20Hz to 18kHz, the ProD2 features exceptionally low harmonic distortion and virtually zero phase distortion in the critical bass and mid zone, making it ideal for performance venues and studio work. Because of the transformer isolation, problems such as hum and buzz caused by ground loops are eliminated, making it very easy and hassle-free to use.


    Shop Similar Models

    Radial Pro D2 Stereo Passive Direct Box Specifications

    Item #:RAD PROD2
    Manufacturer Part Number:R800 1102
    UPC:676101035977
    Product SpecificationsRadial Pro D2 Specifications
    • Frequency Response: 20Hz to 20kHz (+/-2.5dB)
    • Harmonic distortion: 0.01% (20Hz to 20kHz)
    • Phase distortion: 1 degree at 1Khz, 8 degrees at 20Hz
    • Common mode rejection: -90dB @ 60Hz
    • Input impedance: 100 kOhms
    • Output impedance: 600 Ohms
    • Input pad: -15dB
    • Size (W x H x D): 3.25 x 5 x 1.875 inches
    • Weight: 1.95 lbs
    • Construction: 14-gauge steel chassis and shell, baked enamel finish

    Radial Pro D2 Stereo Passive Direct Box Manuals

    Customer Reviews

    Based on 11 reviews
    Popular topics
    Andy J. 🇺🇸
    Verified Buyer
    Radial D2

    Radial DI box are the best. Much better control and sound quality

    Published date
    05/24/23
    Was this review helpful?
    0
    0
    Chuck 🇺🇸
    Verified Buyer
    Heavy Duty Construction

    Using it to connect keyboards to PA. Has performed as expected with no noise at all.

    Published date
    12/06/22
    Was this review helpful?
    0
    0
    Big M. 🇺🇸
    Verified Buyer
    Works as described

    Found this item on YouTube. Was sceptical at first but decided to try it. After receiving hooked it up (very easy by the way) it worked and fixed the hum in the system with ease.

    Published date
    02/09/22
    Was this review helpful?
    0
    0
    John W. 🇺🇸
    Verified Buyer
    Perfect Stereo Solution

    This is last DI box you'll need for keyboards. Works flawlessly and the classic Radial design means this piece of gear is practically indestructible.

    Published date
    12/10/19
    Was this review helpful?
    0
    0
    Jim 🇺🇸
    Verified Buyer
    Rock Solid Direct Box

    Radial products are built like tanks, and this DI is no exception. Simple functions, in/out/thru, pad and a ground lift...what more do you need in a DI? Clean sound that hasn't colored anything that I've run through it. My grandchildren will be fighting over this DI. Buy it.

    Published date
    06/05/19
    Was this review helpful?
    0
    0
