The ART 935-A is an evolution of the ART speaker concept and a revolution in portable sound. The ART 935-A combines raw power and technological innovation to reliably deliver superior clarity with impressive sound pressure.
ART 935-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 3" titanium/neodymium compression driver, 15" woofer, two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 133 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown, the ART 935-A packs high-performance and reliability in a compact enclosure.
Designed to be the most flexible loudspeaker in its class, it also features multiple rigging points for fixed installation. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

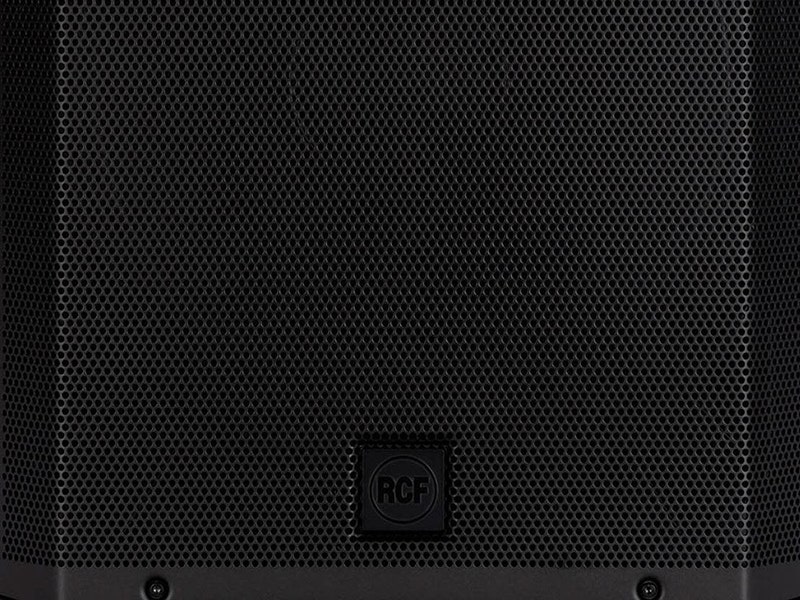

Power That Moves:
The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 2,100 Watts of power, the 2-channel ART 9 Class-D amplifier is 50% more powerful than previous models, able to manage extremely high sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. ART 9 is very energy-efficient so there is no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the back of the unit - with no moving parts. Being physically connected with the internal frame, the amplifier is firm and solid within the cabinet. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All ART 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.
M-Brace: A New Cabinet Design:
A professional appearance of an ART 9 cabinet is ideal for live events or installed applications. The sleek cabinet uses a special polypropylene composite material with a radically new construction concept. The grille cover is heavy-duty steel protecting both transducers and vented ports. The purpose-designed M-brace connects the four internal sides of the cabinet and amplifier, preventing any deformation for a completely inert body, with augmented acoustical damping even at maximum volume settings. It also performs as a reinforcement structure, for greater resistance to mechanical stress.
Bass Motion Control:
When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. ART 9 with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.
The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive, but change the phase behavior, the new BMC algorithm breaks conventional rule. In combination with FiRPHASE technology, ART 9 has a level of DSP audio performance never achieved in this range of speakers.
New Paradigms In Electroacoustics:

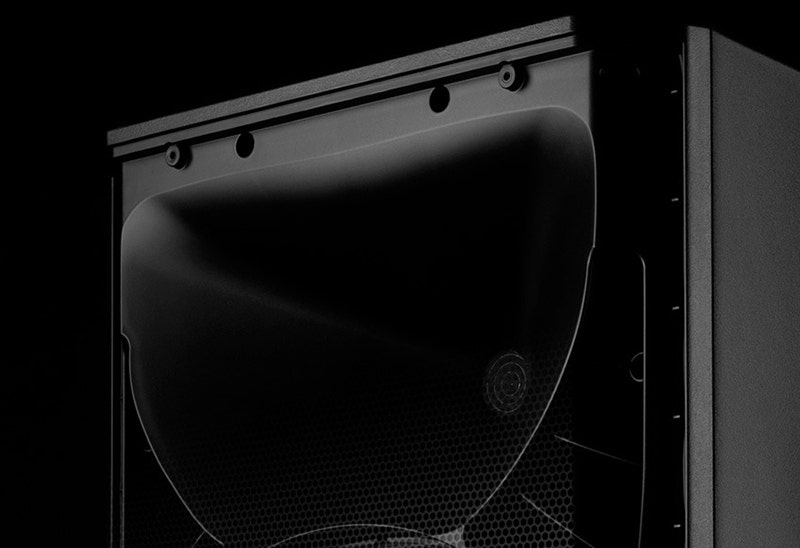

The advanced design of ART9 lies within the housing of the speaker. The new True Resistive Waveguide is the result of several refinements in both the transducers' and the vented ports' design.
About the Manufacturer Phone: 732-902-6100
Warranty: 3 Years on Parts & Labor
RCF ART 935-A 2100 Watt Professional Active 15" 2-Way Loudspeaker Specifications
RCF ART 935-A 2100 Watt Professional Active 15" 2-Way Loudspeaker Specifications Product Specifications | RCF ART 935-A 2100 Watt Professional Active 15" 2-Way Loudspeaker Specifications
- Frequency Response: 45 Hz ÷ 20000 Hz
- Max SPL @ 1M: 133 db
- Horizontal Coverage Angle: 100°
- Vertical Coverage Angle: 60°
- Compression Driver: 1 x 1.4'' neo, 3.0'' v.c
- Woofer: 15'', 3.0'' v.c
- Input Signal: bal/unbal
- Input Connectors: XLR, Jack
- Output Connectors: XLR
- Input Sensitivity: -2 dBu/+4 dBu
- Crossover Frequencies: 800Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter

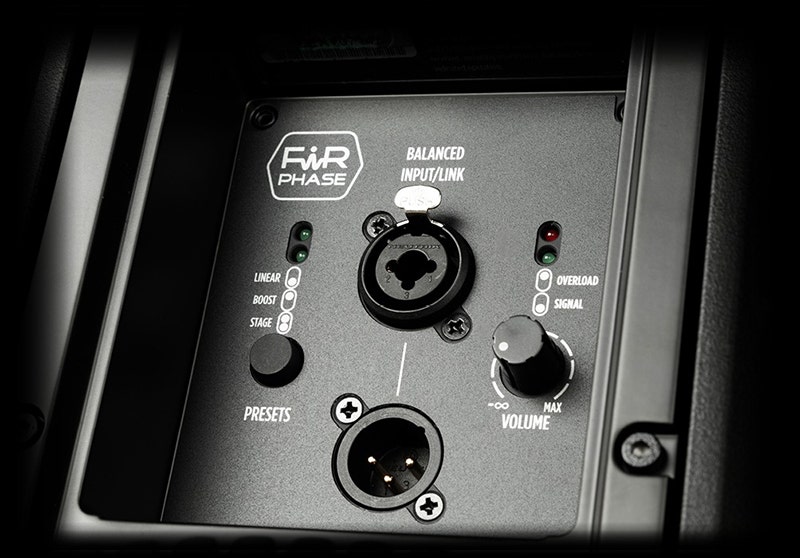

- Controls: Linear, Boost, Stage, Volume
- Total Power: 2100 W Peak
- High Frequencies: 700 W Peak
- Low Frequencies: 1400 W Peak
- Cooling: Convection
- Connections: VDE
- CE Marking: Yes
- Cabinet/Case Material: PP Composite

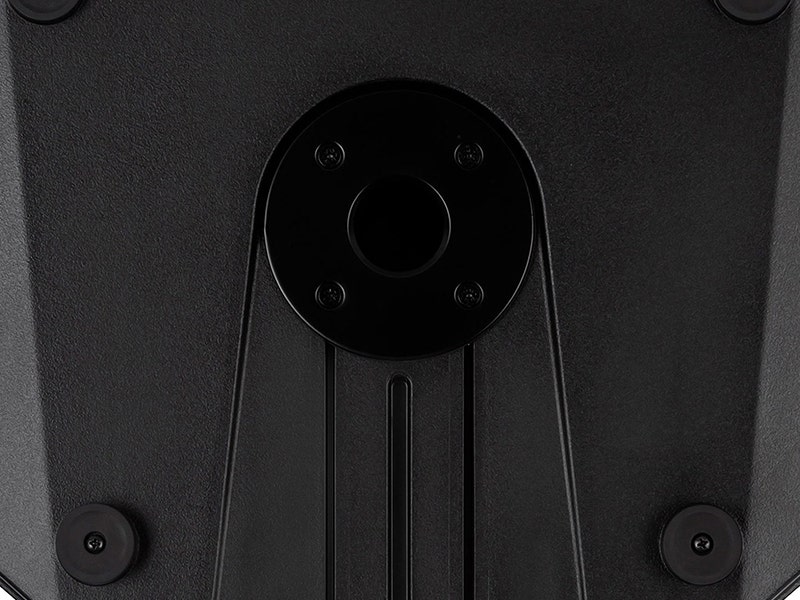

- Hardware: 1 x M10 Top, 1 x M10 each side
- Handles: 1 Top, 1 each side
- Pole Mount/Cap: Yes
- Grille: Steel
- Color: Black
- Height: 717 mm / 28.23 inches
- Width: 415 mm / 16.34 inches
- Depth: 410 mm / 16.14 inches
- Weight: 24.2 kg / 53.35 lbs
|
