RCF NX945-A 2100 Watt 15" 2-Way Powered Loudspeaker

The RCF NX 945-A is a professional active 2-way loudspeaker. Featuring 15" woofer, 4" tweeter, advanced bass motion control, & versatile application from FOH to stage monitor to flown speaker.
Item
RCFNX945A

h m s

free-shipping-icon
In Stock!Order now!
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    0%Free ShippingExtended Warranty45 Day returnShips to Canada

    Free Shipping - No Extra Charge!

    Our 4 state-of-the-art, strategically located warehouses are highly efficient and allow us to ship your gear in record time - and most orders will arrive at your door within 2 days for free. Shortly after you place your order, a Ship Confirmation email will arrive letting you know the order was picked, packed, and put on a truck. Full Details


    Shipping Map

    Free Extended WarrantyFree Extended Warranty

    12 Months EXTRA for Free!

    Many of our competitors charge 10% or more for an additional 12 months of warranty on the products they sell. AMS offers this exclusive benefit to our valued customers at no extra charge. Thousands of items on our site and in our catalog carry the "Gold Lock Extended Warranty" icon. It means you get the manufacturer's full warranty plus 12 additional months, FREE!!!

    45 Day Money Back Guarantee45 Day Money Back Guarantee

    Our 45 day return policy allows you to buy with confidence at AMS! If you are not completely satisfied with any item* purchased from AMS, return it to us within 45 days of the shipping date, and we will refund your money or help you with an exchange. That's always been our policy, and now we've added the ease of Electronic Return Labels!

    Canadian Shipping Information

    Welcome Canadian musicians! Buying your gear from AMS is as easy as going to a local music store, with more selection and more than competitive prices!

    Items with this logo are eligible to ship to Canada. Please note that you will be responsible for payment of brokerage fees, duties and other import taxes applicable to your order.

    NOTE: Free shipping offers do not apply to Canadian orders. Please be aware of custom fees - such as taxes and duties - when your order arrives. Since these fees vary from location to location, CUSTOMS FEES ARE NOT INCLUDED IN SHIPPING CHARGES. Please check with your local customs office for more information on the fees in your areas. Refusal to pay these fees will result in an undeliverable order. If returned, we do not refund shipping charges and may assess restocking fees to cover return shipping expenses.

    Non Factory Sealed Items

    Non Factory Sealed are items that have been opened but are in perfect physical condition such as customer returns, open box for product photos/videos, demo stock, etc. They have been carefully inspected and repacked by qualified AMS employees to help ensure your satisfaction, allowing you to get great gear at a discounted price. They include all components, manuals and the full Manufacturer's warranty unless otherwise stated, along with the AMS 45-day Money-Back Guarantee. Special offers, promotions and rebates may not apply. The following manufacturers do not offer a warranty on Non-Factory Sealed items: Casio, Ampeg, Avalon, Chauvet, Electro-Voice, Ibanez, Mackie, Martin, Peavey

    AMS AgentAMS Agent

    Have questions, found a better price?
    Talk to a sales specialist!

    800-319-9043

    NX 945-A is masterfully engineered from the ground up to deliver stellar audio performance for sound providers, small bands and DJs. The combination of a 4" titanium/neodymium compression driver, 15" neodymium woofer - two-channel 2,100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 70° coverage for the listening area with up to 135 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 945-A blends high performance and reliability in a compact package. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute sound clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.

    RCF NX945-A 2100 Watt 15" 2-Way Powered Loudspeaker Features

    • Up to 135 dB Sound Pressure Level
    • 2100W Class-D Bi-Amplification
    • 45-20000 Hz linear frequency response
    • 4" Titanium/Neodymium Compression Driver
    • 15" neodymium Woofer
    • FiRPHASE zero degrees phase technology
    • Bass Motion Control woofer excursion management
    • Six M10 and four Quick Lock rigging points

    Power That Moves

    The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 2,100W of power, the 2-channel NX 9 Class-D amplifier is 50% more powerful than previous models, able to manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. NX 9 is energy-efficient so there's no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet without moving parts. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NX 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section merging high-efficiency with minimum weight.

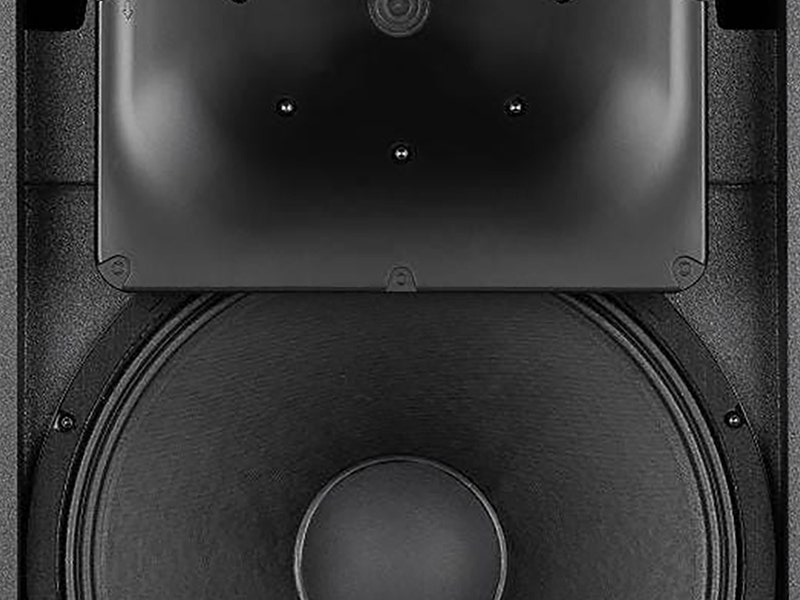

    Legendary Transducers

    Potent woofer: The low-frequency transducer is a high-power 15’’ neodymium woofer with a 3.5’’ voice coil that delivers tight, punchy bass. Reproduction of the mid-bass frequencies is accurate, transparent, and free from distortion.

    Superior compression drivers: The ND940 Compression Driver in pure Titanium with a 4-inch voice coil allows a crossover point at only 650 Hz. This allows a better impulse response, fast decay, and superior efficiency. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.

    Direct Drive Technology: The voice coil features a high-temperature Kapton former. The assembly process takes advantage of the RCF proprietary Direct Drive technology. The diaphragm’s suspension has been designed following extensive research and development aimed at minimizing distortion and extending low-frequency range.

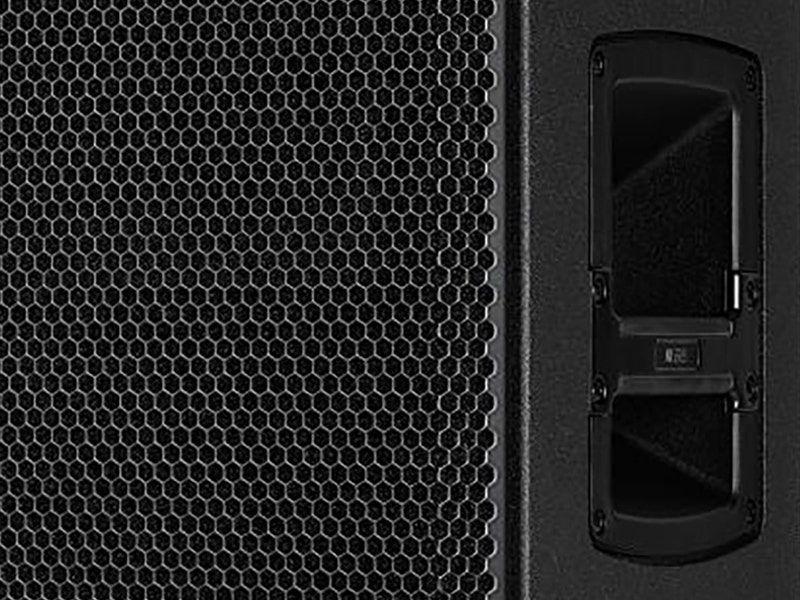

    Bass Motion Control

    When searching for extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. NX 9 Series with BMC can handle the lowest audible frequencies without affecting the woofer stability, providing extended linearity and better sound integrity. The BMC method works by creating a complete map of the dynamic behavior of the woofer to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the BMC algorithm breaks this rule. In combination with FiRPHASE technology, NX 9 has a new level of audio performance in this series of speakers.

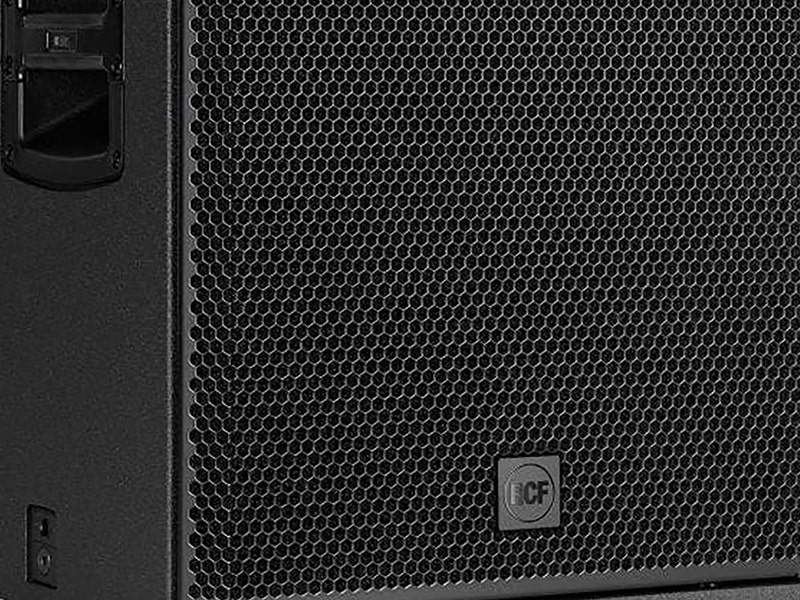

    Tour-proven workhorse

    NX 9 can operate as either the main system or as a floor monitor. This flexibility makes it a smart choice for a wide range of live sound applications. The rugged all-wood cabinet is easy to carry with handles on both sides. The lower side includes a steel pole socket for mounting on a stand or a subwoofer pole. Each model can also be flown, wall- or truss-mounted using the six included M10 rigging points, Quick Lock pins, and special accessories. From the wood cabinet to the final texture and protective grille, NX 9 Series offers maximum strength for intensive use on the road and can be used for fixed installation.

    Shop Similar Models

    RCF NX945-A 2100 Watt 15" 2-Way Powered Loudspeaker Specifications

    RCF NX945-A 2100 Watt 15" 2-Way Powered Loudspeaker Specifications
    Product Specifications

    RCF NX945-A 2100 Watt 15" 2-Way Powered Loudspeaker Specifications

    • Frequency Response: 45 Hz - 20000 Hz
    • Max SPL @ 1m: 135 dB
    • Horizontal coverage angle: 100°
    • Vertical coverage angle: 70°
    • Compression Driver: 1 x 1.4'' neo, 4.0'' v.c
    • Woofer: 15'' neo, 3.5'' v.c
    • Input connectors: Combo XLR/Jack
    • Output connectors: XLR
    • Input sensitivity: -2 dBu/+4 dBu
    • Crossover Frequencies: 650Hz
    • Protections: Thermal, RMS
    • Limiter: Soft Limiter
    • Controls: Linear, Boost, Stage, Volume
    • Total Power: 2100 W Peak
    • High frequencies: 700 W Peak
    • Low frequencies: 1400 W Peak
    • Cooling: Convection
    • Connections: Powercon TRUE1 TOP IN/OUT
    • Cabinet/Case Material: Plywood
    • Hardware: 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear 2 each side quick lock pin seat
    • Handles: 1 x Side
    • Pole mount/Cap: Yes
    • Grille: Steel
    • Height: 705 mm / 27.76 inches
    • Width: 420 mm / 16.54 inches
    • Depth: 451 mm / 17.76 inches
    • Weight: 27.3 kg / 60.19 lbs
