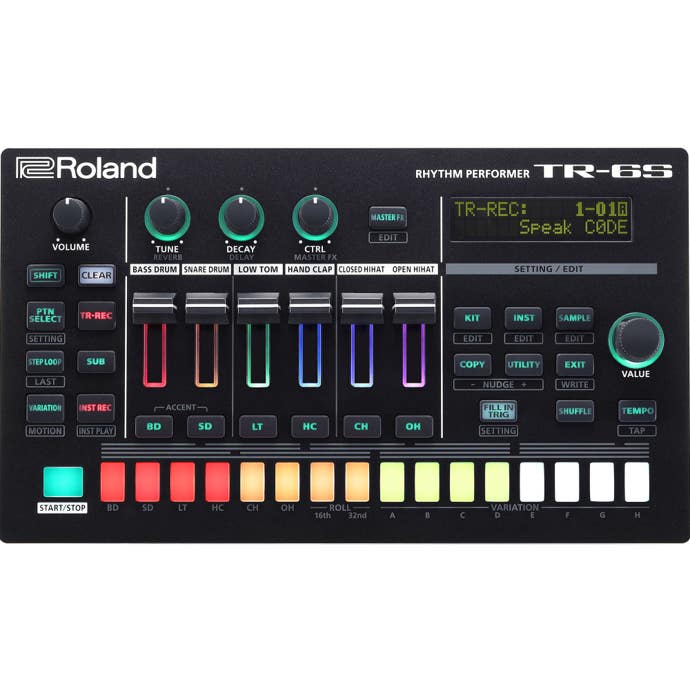

Roland TR6S Rhythm Performer Drum Machine Specifications
- Roland TR-6S: RHYTHM PERFORMER
- User Drum Kit: 128
- User Patterns: 128
- Step Sequencer:
- 6 instrument parts
- 16 steps per 1 variation
- 8 (A - H) variations per 1 pattern
- 2 Fill-in patterns per 1 pattern
- INST tone (Tone can be assigned to each 6 instrument parts freely.):
- BASS DRUM: 11 ACB tones
- SNARE DRUM: 8 ACB tones
- TOM: 19 ACB tones
- RIM SHOT: 3 ACB tones
- HAND CLAP: 5 ACB tones
- HI HAT: 8 ACB tones
- CYMBAL: 8 ACB tones
- PERCUSSION: 24 ACB tones
- FM: 66 tones
- PRESET SAMPLE: 300 tones or greater
- USER SAMPLE (imported form SD CARD for playback): Avarable format: WAV, AIFF
- Total time for all samples: Approximately 600 sec (at 44.1 kHz, mono)
-
* The maximum length of a single audio file that can be imported is approximately 180 seconds (at 44.1 kHz).
- Available format of Sample:
- WAV 96 kHz maximum/8bits, 16 bits, 24 bits, 32 bits, 32 bits float (mono, stereo)
- AIFF 44.1kHz, 48kHz, 96 kHz/8bits, 16 bits, 24 bits, 32 bits, 32 bits float (mono, stereo)
- Effects:
- INST FX: THRU, HPF, LPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR,
- TRANSIENT, COMPRESSOR, DRIVE, COMP+DRV, CRUSHER, SATURATOR, FREQ SHIFT, RING MOD, SPREAD
- REVERB: AMBI, ROOM, HALL1, HALL2, PLATE, MOD
- DELAY: DLY, PAN, TAPE ECHO
- MASTER FX: HPF, LPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR,
- TRANSIENT, TRANSIENT2, COMPRESSOR, DRIVE, OVERDRIVE, DISTORTION, FUZZ,
- CRUSHER, PHASER, FLANGER, SBF, NOISE
- Other: SCATTER (as one of AUTO FILL IN function), SIDE CHAIN
- Display: 16 characters, 2 line (backlit LCD)
- External Storage: SD Card (SDHC supported) for backup/restore function and import sample data
- Connectors:
- PHONES jack: Stereo miniature phone type
- OUT(L/MONO, R) jacks: 1/4-inch phone type
- MIDI(IN, OUT) connectors
- USB port: USB B type (Audio, MIDI)
- Power Supply:
- Ni-MH battery (AA, HR6) x 4
- Alkaline battery (AA, LR6) x 4
- Obtained via USB port (USB bus power)
- Current Draw: 500 mA
- Expected battery life under continuous use:
- Alkaline battery: Approx. 4.5 hours
- Ni-MH battery: Approx. 5.5 hours (When using batteries having a capacity of 1,900 mAh.)
-
* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
- Dimensions: 224(W) x 132(D) x 60.1(H) mm / 8-13/16(W) x 5-3/16(D) x 2-3/8(H) inches
- Weight (including batteries): 705 g / 1 lb 9 oz
- Accessories:
- Leaflet "Read Me First"
- Alkaline battery (AA, LR6) x 4
|
