Experience the legendary depth, power, and clarity of a Rupert Neve console right in your rack. The 5057 Orbit 16x2 summing mixer bridges the gap between your digital audio workstation and the rich, saturated sound of classic analog hardware, giving your in-the-box mixes the glue and weight they’ve been missing.
Bring the Console to Your DAW
The Orbit isn't just a passive box; it's a dynamic instrument that breathes life into sterile digital mixes. By running your stems through its 16 channels of Class-A circuitry, you unlock a three-dimensional soundstage that plugins simply can't replicate. It offers the best of both worlds: the instant recall of your digital workflow and the undeniable mojo of real iron transformers.
Massive Headroom: With a 16-channel +/- 21V Class-A mix bus, the Orbit delivers massive headroom and vanishingly low noise. You can push your mix bus hard without worrying about harsh digital clipping, resulting in a wide, open sound that feels expensive.
Legendary Transformers: At the heart of the Orbit lies the custom Rupert Neve output transformer, originally developed for the acclaimed Shelford Channel. These transformers provide the harmonic complexity and musical non-linearity that have defined the sound of hit records for decades.

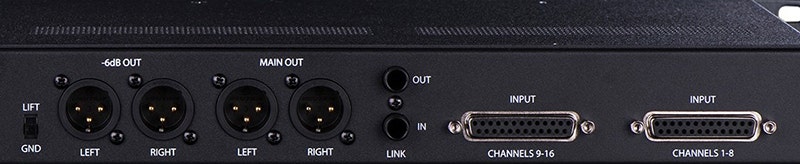

Seamless Integration: Designed to fit perfectly into a modern hybrid workflow, the Orbit features DB25 inputs for easy connection to your interface and XLR outputs for your mix print. It’s a set-and-forget solution that instantly upgrades the sonic quality of every track you bounce.

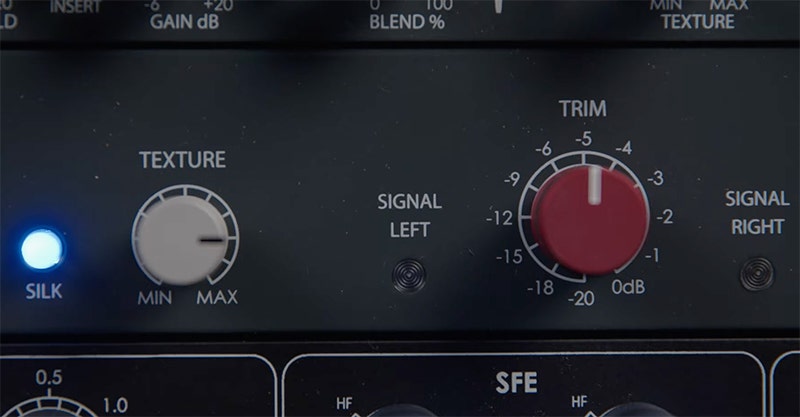

Craft Your Ideal Sound
While some summing mixers are designed to be transparent, the Orbit was born to drive. It gives you precise control over the amount of harmonic saturation you apply, allowing you to go from pristine clarity to thick, vintage grit with the turn of a knob. It's like having a master section from a large-format console at your fingertips.
Silk Red & Blue Modes: Tailor the harmonic content of your mix with the push of a button. Silk Red highlights the high-mid and high frequencies, adding shimmer and presence to vocals and snare drums, while Silk Blue enhances the low-end weight, perfect for fattening up bass guitars and kick drums.
Texture Control: The Texture knob works in tandem with the Silk modes, allowing you to continuously vary the amount of harmonic saturation. Whether you need a subtle touch of warmth or full-blown analog grit, you can dial in the exact amount of "vibe" your track calls for.
Dual Output Options: The Orbit features both a Main Output and a -6dB Output. The -6dB output allows you to drive the mix bus and transformers harder into saturation without clipping the next device in your chain, giving you more creative freedom to shape your sound.

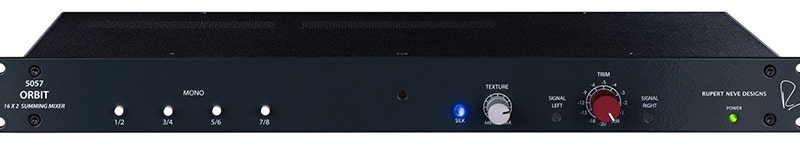

Precision and Expandability
Built to the exacting standards of Rupert Neve Designs, the Orbit offers professional features that ensure accuracy and flexibility in any studio environment. It’s a tool designed for serious engineers who demand reliability and sonic excellence.
Stepped Attenuator: The 12-position stepped rotary switch for the master output level ensures perfect stereo matching and easy recall. You can confidently set your levels knowing that your left and right channels are balanced to within +/- 0.1 dB.
Link Audio for More Channels: Need more than 16 channels? The Orbit is designed to grow with your studio. You can easily link multiple units together via the rear-panel TRS jacks to create a massive 32, 48, or even higher channel count summing system.

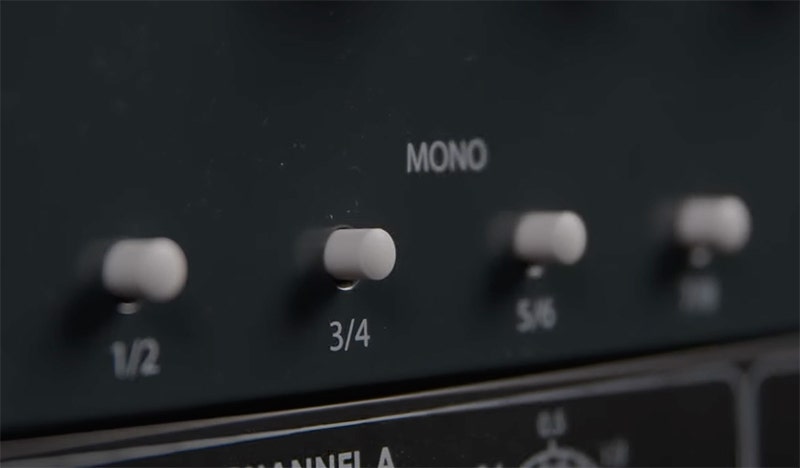

Mono Summing: The front panel features four mono switches that allow you to center any of the first eight channels. This is crucial for keeping kick drums, bass lines, and lead vocals rock-solid in the center of the stereo image without relying on your DAW's panning.
The Missing Link for Your Mixes
If you’ve been chasing that elusive "finished record" sound, the Rupert Neve Designs 5057 Orbit is the answer. It delivers the undeniable character, punch, and cohesion that only high-voltage analog summing can provide, elevating your productions from good to professional.
Rupert Neve Designs 5057 Orbit Features:
16 Channels of Class-A Summing: Legendary Rupert Neve tone and headroom
Custom Output Transformers: The classic sound of iron for weight and glue
Silk Red & Blue Modes: Variable harmonic saturation for high or low frequency emphasis
Texture Control: Precisely dial in the amount of color and vibe
Dual Outputs (Main & -6 dB): Drive the transformers hard without clipping downstream gear
Stepped Master Attenuator: Precision level control for accurate recall
Mono Switches: Center mono sources like kick, bass, and vocals
Expandable Design: Link multiple units for higher channel counts
DB25 & XLR Connectivity: Professional standard I/O for easy integration
1U Rackmount Chassis: Compact and durable design for any studio rack
Rupert Neve Designs 5057 Orbit 16 Channel Summing Mixer Specifications
Item #:
RND 5057
Manufacturer Part Number:
5057
UPC:
763854076774
Product Specifications
Rupert Neve Designs 5057 Orbit 16 Channel Summing Mixer Specifications
Input Impedance: 16 kO
Frequency Response:
10 Hz to 50 kHz: +/- 0.1 dB
150 kHz: -3 dB
Noise (22 Hz - 22 kHz): -90 dBu typical
Maximum Input Level @ 1 kHz: +26 dBu
Maximum Output Level @ 1 kHz: +26 dBu
THD+N% (22 Hz - 22 kHz):
0 dBu @ 1 kHz: 0.003%
+20 dBu @ 1 kHz: 0.0006%
Crosstalk:
1 kHz: -103 dBu
10 kHz: -93 dBu
Rupert Neve Designs 5057 Orbit 16 Channel Summing Mixer Specifications
Product Specifications
Rupert Neve Designs 5057 Orbit 16 Channel Summing Mixer Specifications
Input Impedance: 16 kO
Frequency Response:
10 Hz to 50 kHz: +/- 0.1 dB
150 kHz: -3 dB
Noise (22 Hz - 22 kHz): -90 dBu typical
Maximum Input Level @ 1 kHz: +26 dBu
Maximum Output Level @ 1 kHz: +26 dBu
THD+N% (22 Hz - 22 kHz):
0 dBu @ 1 kHz: 0.003%
+20 dBu @ 1 kHz: 0.0006%
Crosstalk:
1 kHz: -103 dBu
10 kHz: -93 dBu
Customer Reviews
5
Based on 8 reviews
5
8
4
0
3
0
2
0
1
0
Search reviews
Rating
All ratings
Popular topics
sound
set
saturation
piece
Jay 🇺🇸
Verified Buyer
Amzing for Hybrid Engineering
It adds clarity and weight in a way that is awesome for recall. I'm running mine into an analog chain that dumps into a Neve MBC. These two are an awesome combo! I love my orbit
Published date
02/27/24
Was this review helpful?
0
0
Soundman 🇺🇸
Verified Buyer
open things up for me
you got to understand, this dont make you mix better are make your mix sound better, it just give you a sound that if you were train on a console it helps you get the same feel you are use too.. but if you learn to mix in the box stay there..you want understand...
Published date
07/04/23
Was this review helpful?
1
0
Daniel C. 🇺🇸
Verified Buyer
You don’t want this, you NEED this.
This piece is worth every penny because of the “neve sound” it gives you. Put this in your arsenal, you won’t regret it!
Published date
06/09/23
Was this review helpful?
0
0
Ro 🇺🇸
Verified Buyer
Expensive Sound, Budget Price
I’ve been using this Summing Mixer in my mastering chain and I can’t even begin to fully describe the amount of depth and fullness it provides. I mostly use the red silk mode in the 12 o clock position but I’ve also used it quite a few times in the blue mode to help bring out more body from drum mix...
Published date
05/24/23
Was this review helpful?
0
0
Rick A. 🇺🇸
Verified Buyer
Summing at it's best.
The summing on this amazing box is the best i've heard and I have owned a good amout of them. This Rupert Neve 5057 is by far the widest the deepest and hight of your will be very analog...Magic
