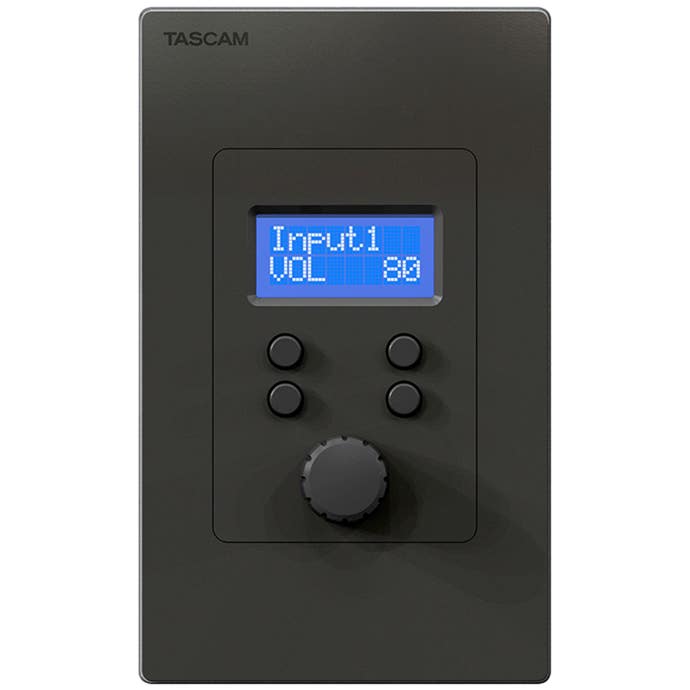

    The RC-W100-R120 Wall Mount Controller for the MX-8A 8 Input /8 Output Matrix Mixer with DSP. Designed for quick and easy operation in meeting rooms, lecture halls, stores, restaurants, and multipurpose spaces, the RC-W100-R120 Wall Mount Controller incorporate an easy-to-read LCD display, one rotary encoder with a push switch, and four push button switches.

    The RC-W100-R120 addresses a variety of world markets, with the RC-W100-R120 designed for the U.S. and Japan. RC-W100-R120 sold separately. TASCAM MX CONNECT Software V1.2.0 or upwards is needed to use the RC-W100.

    Tascam RC-W100-R120 Wall-Mounted Programmable Controller Features
    • Wall-mounted programmable controller for MX-8A
    • Equipped with 1 encoder (with push switch) and 4 switches
    • Enables switching sources and adjusting volume (including muting)
    • Functions can be assigned to the encoder and the switches using TASCAM MX CONNECT
    • Prevents end-users from making mistakes by assigning only necessary functions to the controller
    • Two source switching modes available
    • Easy-to-read display
    • Name of the selected source and current volume can be checked
    • Automatic backlight off function
    • Daisy chaining of up to 8 units is possible using cables rated category 5e or higher (maximum length 200 m)
    • Power supply can be provided to the unit via MX-8A (RS-485)
    • Reduces power construction and installation costs
    Shop Similar Models

    TASCAM RC-W100-R120 Wall-Mounted Programmable Controller For MX-8A Specifications

    TASCAM RC-W100-R120 Wall-Mounted Programmable Controller For MX-8A Specifications
    Product SpecificationsTascam RC-W100-R120 Wall-Mounted Programmable Controller Specifications
    • Model: RC-W100-R120
    • Input/Output Ratings - RS-485 connector:
      • Connector: RJ-45 x2
      • Cables: Category 5e or higher cables
    • Power: Powered by MX-8A
    • Power Consumption: 0.24W
    • Dimensions: 70 x 114 x 54 mm (W x H x D, including protrusions)
    • Weight: 140g
    • Operating Temperature Range: 0 - 40°C (32 - 104°F)
    • Included Items: Owner's Manual (including warranty)
