Overview

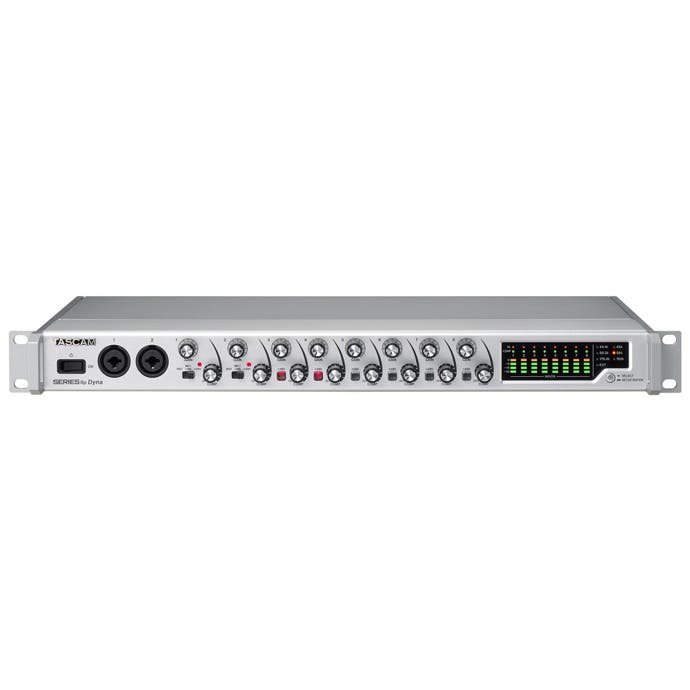

A masterfully designed powerhouse, the Series 8P Dyna is an 8-channel mic-preamp with multiple connectivity options and the sound you demand to release your creativity. Housed in a rugged 1U rack-mount casing, its dual S/MUX optical ports can be used with their SERIES 102i or 208i, US-20X20, or other S/MUX-equipped audio interfaces including ADAT. Each SERIES 8p Dyna channel also features individually switched +48V phantom power for use with condenser mics, and an easy-to-use, single-control analog compressor with true bypass. An excellent choice for studio and stage because of its superb audio specifications and connectivity.

Tascam Series 8P Dyna 8 Channel Mic Preamp Features

HDIA (High Definition Instrumentation Architecture) preamps (EIN is -127dBu, THD is 0.0007%, and dynamic range is 116dB!!)
Single-control analog compressor with true bypass
8 Mic/Line combo inputs (two on the front, 6 on the back)
Individually switched +48V phantom power
Dual S/MUX/ADAT optical outputs
Eight line-level analog channel outputs on ¼” balanced connectors
Eight line-level analog channel outputs via D-sub connector
Word clock in and out via BNC connectors
Front-panel analog overload indicators/compression indicators, and much more!

A Superior Front End for Studio and Stage
TASCAM has long been known for transparent, natural, ultra-low-noise preamps, and the eight TASCAM no-compromise HDIA (High Definition Instrumentation Architecture) preamps in the SERIES 8p Dyna are its best preamps yet; the noise level (EIN) is at -127dBu, the THD is 0.0007%, the dynamic range is 116dB, and the crosstalk is 119dB. Each SERIES 8p Dyna channel also features an easy-to-use, single-control analog compressor with true bypass for handling hot input signals and creating smooth audio input.

Versatile Inputs
With two instrument/microphone combo inputs on the front panel, you can quickly plug in mics, guitars, bass and more. Six balanced mic/line inputs grace the rear. Every microphone input has individually switched +48V phantom power for using different types of microphones such as Dynamic, Condenser, Ribbon and vintage for proper operation and safety. It adds up to a multi-purpose front end for recording and live sound.

Expand Your Interface or Other Device
Dual S/MUX optical outputs on the rear of the SERIES 8p Dyna enable you to use the unit as a front end expander for S/MUX-equipped audio interfaces, such as TASCAM's SERIES 102i and SERIES 208i, and Celesonic US-20x20. ADAT compatibility is also available. With two S/MUX outputs, you can send all eight SERIES 8p Dyna channels at up to 96 kHz (four channels at 176.4 or 192 kHz), dramatically expanding your system's capabilities.

Send to Anything
The SERIES 8p Dyna's eight line-level analog channel outputs are provided on both 1/4-inch balanced TRS connectors and balanced 25-pin D-Sub connectors. Route signals to interfaces, recording mixers, front-of-house consoles, and pretty much anything else. Connect its D-Sub outputs to a TASCAM ML-16D or ML-32D Analog Dante converter, and it becomes a pristine front end for an audio-over-IP network.

The Features Professionals Need
From its high-end preamps to its versatile outputs, the SERIES 8p Dyna is a thoroughly professional product, right down to its rugged metal 1U rack-mount enclosure. Word clock in and out BNC connectors with an In/Out/Thru switch enable proper synchronization of digital signals. Front-panel analog overload indicators, compression indicators, and digital peak and level meter bars let you monitor the unit's performance. Yet the SERIES 8p Dyna is simple to operate so you can stay focused on the task at hand.

See all items from TASCAM

Shop Similar Models

Mic Preamps

About the Manufacturer

Phone: 323-726-0303

Warranty: 1 Year on Parts; 90 Days on Labor

Specifications

TASCAM Series 8P Dyna 8 Channel Mic Preamp Specifications

TASCAM Series 8P Dyna 8 Channel Mic Preamp Specifications
Product Specifications	Tascam Series 8P Dyna 8-Channel Microphone Preamp Specifications Sampling Frequency: 44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz Quantization Bit Rate: 24-bit Analog Audio Inputs MIC IN (Balanced): 1-2 (when the input switch is set to MIC/LINE), 3 thru 8 Connector: XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) Input Impedance: 2.3kO Rated input level GAIN: MAX: -58dBu(0.001Vrms) GAIN: MIN: -6dBu(0.388Vrms) Maximum Input Level: +10dBu (2.45Vrms) Gain Range: 52dB INSTRUMENT IN (Unbalanced): 1-2 (when the input switch is set to INST) Connector: 1/4" (6.3mm) TS jack equivalent (Tip: HOT, Sleeve: GND) Input Impedance: 1MO or more Rated input level GAIN: MAX: -58dBV (0.0012 Vrms) GAIN: MIN: -6dBV (0.501Vrms) Maximum Input Level: +10dBV (3.162Vrms) Gain Range: 52dB LINE IN (Balanced): 1-2 (when the input switch set to MIC/LINE), 3 thru 8 Connector: 1/4" (6.3mm) TRS jack equivalent (Tip: HOT, Ring: COLD, Sleeve: GND) Input Impedance: 10kO Rated input level GAIN: MAX: -48dBu (0.003 Vrms) GAIN: MIN: +4dBu (1.228Vrms) Maximum Input Level: +24dBu (12.282Vrms) Gain Range: 52dB Analog Outputs ANALOG OUT (Balanced) Connector: D-Sub 25pin, inch-screw No.4-40 UNC Output Impedance: 100O or less Nominal Output Level: +4dBu (1.228Vrms) Maximum Output Level: +20dBu (7.75Vrms) Load Impedance: 2kO or more LINE OUT (Balanced): LINE OUT 1 thru 8 Connector: 1/4" (6.3mm) TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND) Output Impedance: 230O Nominal Output Level: +4dBu (1.228Vrms) Maximum Output Level: +20dBu (7.75Vrms) Digital Audio Outputs OPTICAL OUT (S/MUX) Connector: OPTICAL (JEITA RC-5720C) Signal Format: Multi-channel Optical Format (Supports S/MUX2: 88.2k/96k Hz, S/MUX4: 176.4k/192k Hz) Control Input/Output WORD IN Connector: BNC Input Voltage: 2.0Vpp to 5.0Vpp Input Impedance: 75O +/-10% with Terminal ON/OFF Switch Frequency Deviation: +/-100ppm WORD OUT Connector: BNC Output Voltage: 2.0Vpp (into 75O) Output Impedance: 75O +/-10% with OUT/THRU switch Sampling Frequency: 44.1k / 48k / 88.2k / 96k / 176.4k /192k Hz Power: DC 12V (dedicated AC adapter PS-P1230) Power Consumption: 16 W Dimensions: 482(W) × 44.8(H) × 228.8(D) mm Weight: 2.6kg / 5.7lb Operating Temperature Range: 0 to 40°C Accessories: User's manual(with warranty), AC adapter (PS-P1230) Audio Performance Mic amp EIN (equivalent input noise): -127dBu or lower Frequency Response: * JEITA MIC/LINE to LINE OUT: 20Hz to 40kHz, +/-0.5dB, 40kHz to 80kHz, +/-5dB MIC/LINE (analog) to digital output (S/MUX) Fs 44.1k/48kHz: 20Hz to 20kHz, +/-0.5dB Fs 88.2k/96kHz: 20Hz to 40kHz, +/-0.5dB Fs 176.4k/192kHz: 20Hz to 80kHz, +/-5dB S/N ratio: * GAIN knob at minimum, JEITA MIC/LINE/INST to LINE OUT: 116dB MIC/LINE/INST (analog) to digital output (S/MUX) Fs 44.1kHz: 113dB Fs 48kHz: 113dB - Fs 96kHz: 111dB THD: * 1kHz sine wave, max
