Universal Audio Apollo Twin X Duo Gen 2 Analog Classics Thunderbolt Interface
The Apollo Twin X DUO Gen Analog Classics. Features Desktop 10 x 6 Thunderbolt audio interface with two Unison mic preamps, elite-class Apollo X Gen 2 audio conversion, Auto-Gain and more.
0% Interest
Payment Plan
Don’t sell your soul to a creditor to get the gear you need. At AMS, we want to lower the barriers to create. That’s why we offer in-house 0% financing, and you don’t even have to open a new line of credit! Spread out payments on your credit card to simplify financing and avoid hefty late fees or service charges. Cost shouldn’t interfere with your creativity.
Earn rewards every time you shop at AMS. You'll collect points on eligible purchases that turn into promotional savings on future gear, with points typically available several days after your order ships. All you need is a free AMS account — no credit card, financing, or payment plan required.
The more you shop, the more you earn. Create a free account and start earning from your very first eligible purchase. Rewards are applied as a discount on future eligible purchases.
Earn points on eligible purchases with AMS Rewards and turn them into savings on future orders, no credit card required. You can apply points at checkout once they’re available.
OR
h m s
Compare
Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!
Opt in for Notifications on this product for the price drops, stock changes and promotions
Did you know AMS is the only music distributor with four distribution centers? And that means we can offer super-fast shipping on all your music products. Whether you don’t want the spark of inspiration to fade or you really need that replacement speaker before the next show, we have you covered anywhere in the U.S. And even better, it’s FREE!
You shouldn’t have to pay extra for a little peace of mind. When you purchase from AMS, you’ll get a free 12-month extended warranty to cover your purchase — and that’s in addition to any manufacturer’s warranties! Thousands of items in our catalog feature the “Gold Lock Extended Warranty,” so you can feel confident in your purchase.
45
Day return
Sometimes the gear on the computer screen seems like a better fit than when you actually get your hands on it. We understand, and that’s why AMS offers an industry-leading 45-day money-back guarantee. If you’re not happy with an item, you have a full month and a half to send it back! We don’t want to just sell you gear. We want to sell you the RIGHT gear — even if it takes a few tries.
0% Interest
Payment Plan
Don’t sell your soul to a creditor to get the gear you need. At AMS, we want to lower the barriers to create. That’s why we offer in-house 0% financing, and you don’t even have to open a new line of credit! Spread out payments on your credit card to simplify financing and avoid hefty late fees or service charges. Cost shouldn’t interfere with your creativity.

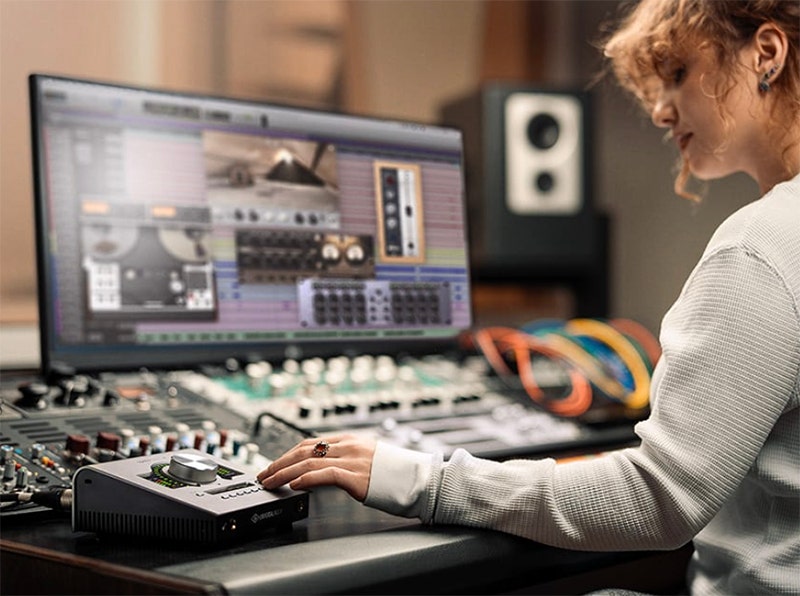

UAD Apollo Twin X Duo Gen 2: Legendary Recordings Start Here
You don’t need a massive console or racks of gear to get hit-ready sound — you just need the right tools. The Apollo Twin X Duo Gen 2 brings the soul of analog hardware to your desktop with the precision of modern digital design. With Unison™ mic preamps, DUO Core UAD plug-in processing, and elite-class conversion, it’s an interface for producers, engineers, and guitarists who want that record-label sound without ever leaving home.
You get the tone of Neve, API, Manley, Pultec, and more — right out of the box. No latency. Just the feel of analog, delivered in real time.

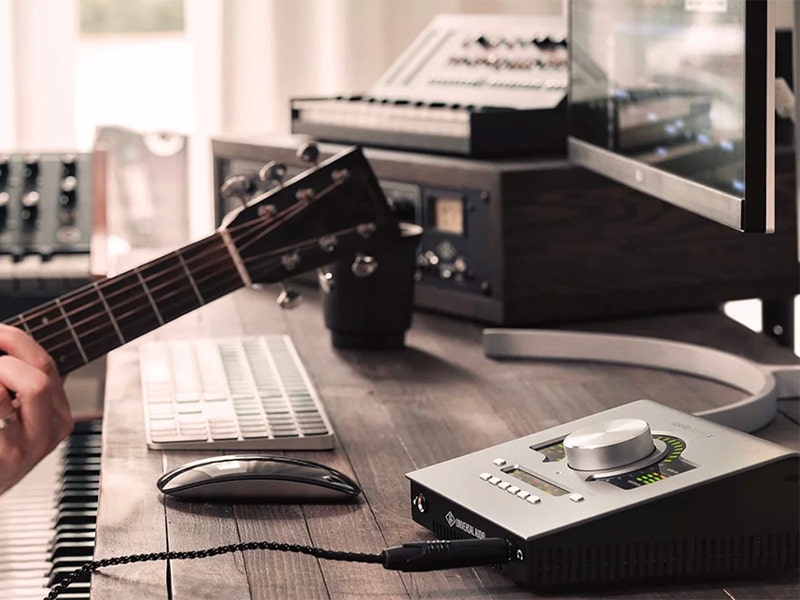

Key UAD Features for Pro-Level Recording Power
From studio-grade conversion to near-zero latency plug-in tracking, the UAD Apollo Twin X is packed with high-end features typically reserved for rackmount systems. This interface gives you a streamlined path to better recordings, mixes, and performances, whether in a bedroom studio or professional control room.
10 x 6 Thunderbolt audio interface with 24-bit/192kHz audio conversion.
UAD-2 DUO Core processing lets you record through vintage compressors, EQs, tape machines, and mic pres in real time.
Two Unison-enabled mic/line preamps deliver authentic emulations of Neve, Manley, API, and more.
Hi-Z instrument input for plugging in guitars and bass with immediate access to amp and stompbox emulations.
Digitally controlled analog monitor outputs for full-resolution audio at all listening levels.
Built-in talkback mic, headphone output, and cue system for smooth studio communication.
Optical input (ADAT or S/PDIF) for expanding with up to 8 additional channels of input.
Monitor remote functions including Mono, Mute, DIM, and ALT speaker switching.
Every detail, from the all-metal housing to the console-style knob and metering, screams quality — and delivers it in every session.
Analog Vibe, Modern Workflow
The Apollo Twin X Duo Gen 2 brings the tone, warmth, and responsiveness of classic analog gear into your computer, with none of the maintenance, space, or noise. Thanks to Unison™ technology, you’re not just getting the sound of famous preamps and amps — you’re getting their true impedance, gain structure, and dynamic behavior, all in real time.
Track vocals through the lush detail of a UA 610 Tube Preamp or the punch of an API Vision Channel Strip.
Plug in your guitar and instantly play through Marshall Plexi amps, Ampeg SVTs, or boutique stompboxes.
Mix with iconic tools like the LA-2A, 1176, Pultec EQs, and Capitol Chambers reverb.
Expand your I/O and DSP by cascading up to four Apollo interfaces for 128 channels of premium I/O.
Whether you're mixing a demo, tracking an album, or crafting beats late into the night, the Apollo Twin X Gen 2 makes it feel like you’re working on a million-dollar console right from your desk.
Universal Audio Apollo Twin X Duo Gen 2 Analog Classics Features:
10 x 6 Thunderbolt audio interface with DUO Core DSP plug-in processing
Two UnisonTM mic preamps, Hi-Z instrument input, optical Toslink input (ADAT or S/PDIF)
Two 1/4" monitor outs, two 1/4" line outs (ALT), one 1/4" TRS headphone out
Elite-class Apollo X Gen 2 converters with 24-bit / 192 kHz resolution
Enhanced D/A for critical monitoring and playback with 129 dB dynamic range
Calibrate your main monitor and headphone outputs with Apollo Monitor Correction powered by Sonarworks®*
Fully-featured monitor controller with alternate speaker switching and integrated talkback for easy communication with talent
Updated UAD Console app featuring Auto-Gain, Plug-In Scenes, subwoofer integration with Bass Management, immersive audio support, and more
Onboard DSP supports over 200 UAD plug-ins via VST, AU, and AAX 64 formats in all major DAWs
Includes up to 80+ UAD plug-ins with UAD Analog Classics or UAD Analog Classics Pro
Compatible with LUNA, Logic Pro, Pro Tools, Cubase, Ableton Live, and more**
Expandable with Thunderbolt Apollo interfaces or select models over Dante
Free industry-leading technical support from knowledgeable audio engineers
Warranty: 1 Year from date of purchase (parts and labor)
Universal Audio Apollo Twin X Duo Gen 2 Analog Classics Thunderbolt Interface Specifications
Universal Audio Apollo Twin X Duo Gen 2 Analog Classics Thunderbolt Interface Specifications
Product Specifications
Over 30 Included Plug-Ins in UAD Analog Classics:
Channel Strips & Preamps (6):
Century Tube Channel Strip
CS-1 Channel Strip
LA-6176 Signature Channel Strip
Precision Channel Strip
UA 610-A Preamp & EQ
UA 610-B Preamp & EQ
Compressors / Limiters (7):
Fairchild 670 Legacy Compressor
Teletronix LA-2A Legacy Leveling Amplifier
Teletronix LA-2A Tube Compressor
Precision Buss Compressor
UA 1176 FET Compressor
UA 1176LN Legacy
UA 1176SE Legacy
Equalizers (3):
Precision Equalizer
Pultec EQP-1A Legacy EQ
Pultec Pro Legacy EQ
Special Processing (5):
Oxide Tape Recorder
Precision De-Esser
Precision Enhancer Hz
Precision Enhancer kHz
Vibe Analog Machines Essentials
Instruments (1):
PolyMAX Polyphonic Synth
Delay & Modulation (3):
Galaxy Tape Echo
Precision Delay Mod
Precision Delay Mod L
Reverbs & Rooms (2):
Precision Reflection Engine
Pure Plate Reverb
Mastering (3):
Precision Limiter
Precision Maximizer
Precision Multiband
Guitar & Bass (5):
Bermuda Triangle
Raw Distortion
TS Overdrive Pedal
UAD Lion ’68 Super Lead Amp
UAD Showtime ’64 Tube Amp
Frequently Asked Questions
The Apollo Twin X Duo Gen 2 is a 10‑in/6‑out Thunderbolt 3 audio interface featuring elite‑class 24‑bit/192 kHz conversion and DUO Core DSP for real‑time UAD plug‑in processing. It’s designed for producers, musicians, and engineers who want high‑end studio sound in a compact desktop format.
The Gen 2 model features updated AD/DA converters, improved dynamic range, and enhanced monitoring tools like Apollo Monitor Correction powered by Sonarworks. It also includes new Console features such as Auto‑Gain, Plug‑In Scenes, and immersive audio support.
Yes, the interface is fully compatible with macOS and Windows systems that support Thunderbolt 3. It works with major DAWs including Logic Pro, Pro Tools, Ableton Live, Cubase, and UA’s LUNA.
The Essentials Edition includes a curated bundle of UAD plug‑ins such as Auto‑Tune, Fairchild, Teletronix, and other classic processors, giving you professional‑grade tools right out of the box. Some retailers also offer promotional plug‑ins depending on registration date.
The interface provides two Unison mic/line preamps, a Hi‑Z instrument input, two monitor outputs, two line outputs, and an optical ADAT/S/PDIF input for expansion. It also includes a dedicated headphone output and external power supply.
