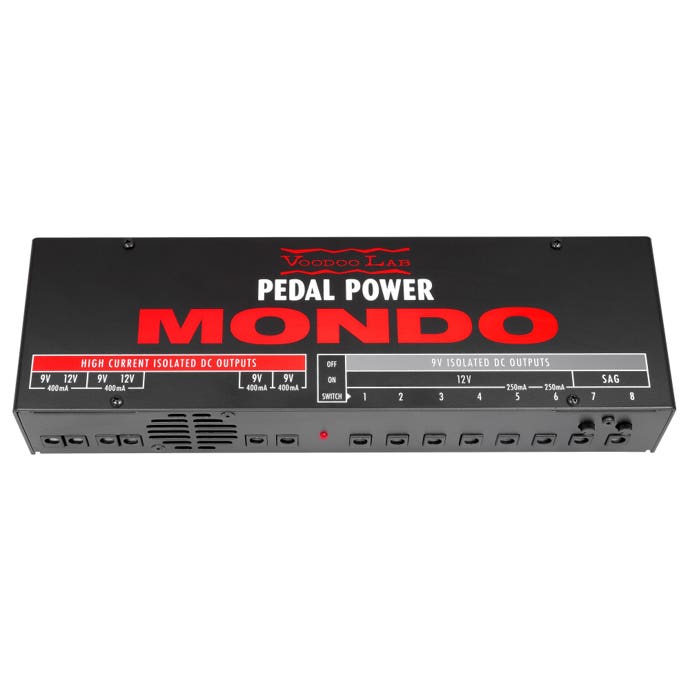

Voodoo Lab Pedal Power MONDO Isolated Power Supply

Pedal Power® MONDO is a high current-capable power supply designed to power the largest and most diverse pedalboards. From digital power-hungry effects from Strymon, Eventide, Line 6, TC Electronic and more—plus compatibility with all standard 9-volt battery stompboxes--MONDO is perfect for large to gigantic pedalboards. With 12 completely isolated, filtered, and regulated output sections, MONDO will keep your pedals dead quiet and sounding their best.

Pedal Power MONDO is also equipped with an internal thermometer that controls a silent fan keeping the unit cool even under the most adverse heat conditions of outdoor festival stages. Even with poor AC line conditions, it delivers clean, consistent power. Handmade in the USA using the finest components, Pedal Power MONDO was designed to meet and exceed the needs of our most demanding professional users.

Voodoo Lab Pedal Power MONDO Isolated Power Supply Features:

12 total isolated outputs
Four (4) 9V 100mA outputs switchable to 12V
Two (2) 9V 250mA outputs switchable to 12V
Two (2) 9V 100mA outs with SAG feature to simulate the output of a low battery
Four (4) 9V 400mA outputs (2 with 12V option)
Powers Strymon, Eventide, Line 6, TC Electronics, and more
All outputs compatible with all 9V battery operated pedals
Combine outputs for 18V/24V operation and currents up to 800mA (doubler cables sold separately)
Linear regulation and toroidal transformer for lowest possible noise
200-watt courtesy AC outlet for powering additional devices
Power Cables included
Product Dimensions (W x D x H): 10.75" x 3.4" x 1.75" (273 x 86 x 44 mm)
Product Weight: 2.9 lbs (1.32 kg)
Hand-built in the U.S.A.
5-Year Warranty

Isolation

Ground loops cause hum and the solution is to break the unwanted ground path. Isolation is the best way to do it. Unlike many power supplies, Pedal Power isolates every output. This eliminates tone-robbing interaction between other effects. Pedal Power powers everything from vintage overdrives to modern digital marvels in a way other power supplies simply can't.

Proprietary Balanced Transformer

Typical transformers, like those used in a wall wart, create large magnetic fields that cause hum in any audio path near it. Pedal Power uses a custom designed, ultra-low noise toroidal transformer with separate balanced windings for every output allowing even the most sensitive pedals to be dead quiet.

Linear Power

What's good for charging a cell phone is NOT good for your pedals. While digital switching power supplies are small and inexpensive, they also generate noise. Pedal Power uses an audiophile quality linear supply for consistently stable, clean, pure power.

Pedal Power MONDO Output Features (Right Side):

9V/12V Standard Outputs (x4 - Outputs 1 through 4):
- Each of these four 9V 100mA outputs powers any standard 9V battery-operated pedal. 12V operation can be selected with DIP switches set AWAY from NORMAL on the bottom panel of Pedal Power 2 PLUS.
9V High Current Outputs (x2 - Outputs 5 & 6):
- These outputs deliver 250mA for use with higher-current effects. Standard 9V battery-powered effects can also safely power from these outputs. As with outputs 1 through 4, 12V operation can be selected with DIP switches on the bottom panel set AWAY from NORMAL.
9V Standard Outputs with SAG Control (x2 - Outputs 7 & 8):
- These function as standard 9V 100mA outputs when DIP switches are set in the NORMAL position. With DIP switches set AWAY from NORMAL, the SAG controls above outs 7 and 8 are now engaged. These controls enable variable voltage between 9V and 4V. This feature is useful to simulate a low battery in transistor-based fuzz, Octavia, and distortion circuits. For use with digital pedals like delay, chorus, and reverb, the SAG feature should be turned off.

High Current Output Section (Left Side):

9V 400mA Outputs (x4):
- These outputs are available for powering high current digital effects. Two of these outs feature a 12V option. Standard battery-powered effects can also be powered using these outputs.
Higher Voltages and Current Supply
- The voltages of any two isolated outputs can be combined using a Voodoo Lab Voltage Doubling Cable. Joining two 9V outputs creates a single 18V out. Joining two 12V outputs creates a single 24V out. The current of two isolated outs can also be combined using a Current Doubler Adapter for currents of up to 800mA.
