Warm Audio WA-1B All-Tube Transformer-Balanced Optical Compressor

Text to Phone

WARM AUDIO

Warm Audio WA-1B All-Tube Transformer-Balanced Optical Compressor

Name: Warm Audio WA-1B All-Tube Transformer-Balanced Optical Compressor
Brand: Warm Audio
SKU: WAU-WA1B
Price: 1199 USD
Availability: InStock
Rating: 5.00 (2 reviews)

The Warm Audio WA-1B is an accurate recreation of a world-class Scandinavian compressor. It has that revered â€œforgivingâ€ musical compression of tube-optical circuitry with speed and control.

Item

WAUWA1B

$1,199.00

h m s

Seen it for less?

Have questions, found a better price?
Talk to a sales specialist!

800-319-9043

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Warm Audio WA-1B All-Tube Transformer-Balanced Optical Compressor

Frequently Bought Together

Warm Audio WA-1B All-Tube Transformer-Balanced Optical Compressor

$1,199.00

+

Pig Hog 8mm Guitar Instrument Cable 10 Feet

$17.95

+

IK Multimedia iKlip 3 Universal Mic Stand for Tablets

$39.99

=

$1,256.94

Overview

The ultimate compression tool for recording engineers - the Warm Audio WA-1B All-Tube Optical Compressor.
This tube opto design has been painstakingly recreated using the highest quality components, ensuring top-tier performance. The vintage design is combined with modern features, making it easier to dial in specific settings that will bring out the best possible sound in your studio recordings. That means superb levels of signal control and dynamic range for stunning results.

The Warm Audio WA-1B is an accurate recreation of a world-class Scandinavian compressor combining smooth tube-optical warmth with precision controls. Like the original favored by producers and engineers from Chris Lord-Alge to Rick Rubin, the WA-1B delivers that revered “forgiving” musical compression of tube-optical circuitry with speed and control more closely associated with modern dynamics processing. Hand-wired to authentically recreate the original true-to-spec circuit, the WA-1B combines custom large-core transformers from Lundahl Sweden, select tubes from JJ and Tung-Sol, and a premium high-precision optical element for ultra-fast and accurate operation without sacrificing authentic analog warmth.

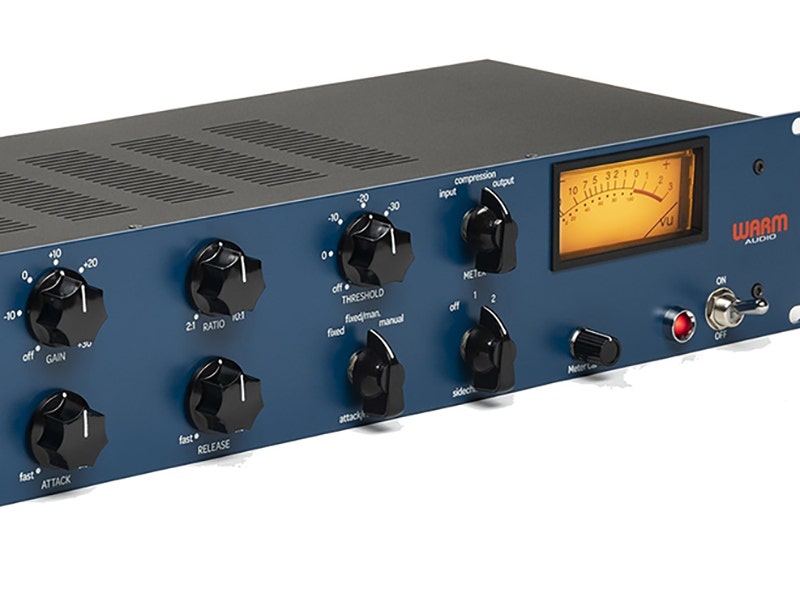

True-To-Original Controls

To deliver extended dynamics processing, the WA-1B delivers all of the classic, extended controls of the original including infinite 2:1 - 10:1 ratios, variable threshold, fixed/manual/combined attack & release, multiple metering options, dual sidechain bus connections, and true-bypass operation.

Threshold:

The WA-1B supports a variable threshold giving maximum control to the user regarding how much compression is applied to any signal at various input levels.

Ratio:

The WA-1B ratio is variable and has infinite controls between 2:1 and 10:1. From soft musical dynamic control all the way to hard-smashing compression!

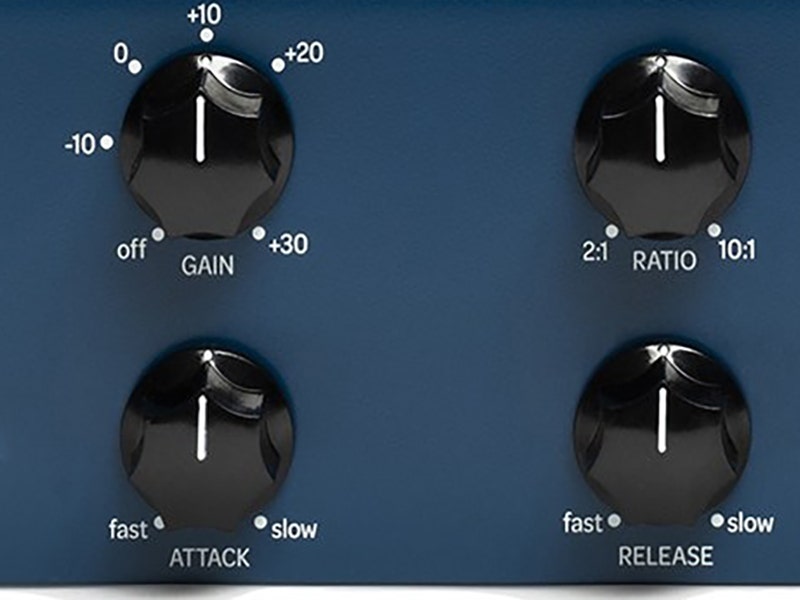

Attack & Release:

The Attack/Release controls on the WA-1B are unique in that the attack/release operations can be switched from a fixed setting, manual (variable) setting, or a combined setting. In the “fixed” mode, the WA-1B delivers the natural attack & release time of the optical element. The combined setting in particular creates the opportunity for a more nuanced release-time curve. This dueling time-constant circuit operation is a special feature of the WA-1B and its original inspiration.

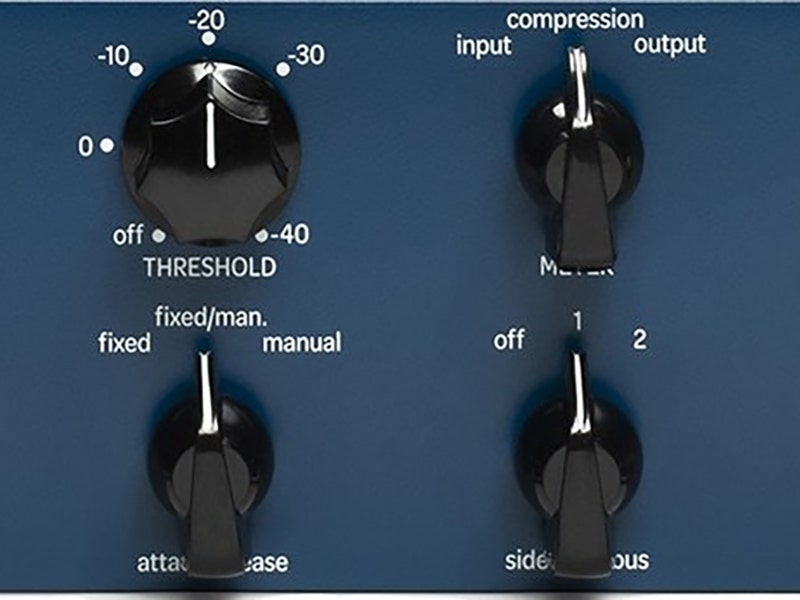

Meter Switch:

The WA-1B meter switch has three settings: input, compression, and output levels. Set to “input”, the VU meter reads the level at the input connector. Set to “compression”, the VU meter is reading gain reduction. The steady state is "0", and the amount of compression is shown as the needle moving right-to-left away from 0dB. Set to “output”, the VU meter reads the level at the output connector.

On/Bypass:

The on/bypass switch on the WA-1B activates or bypasses the compressor. This is a hard bypass, meaning no signal passes through the circuitry in bypass mode.

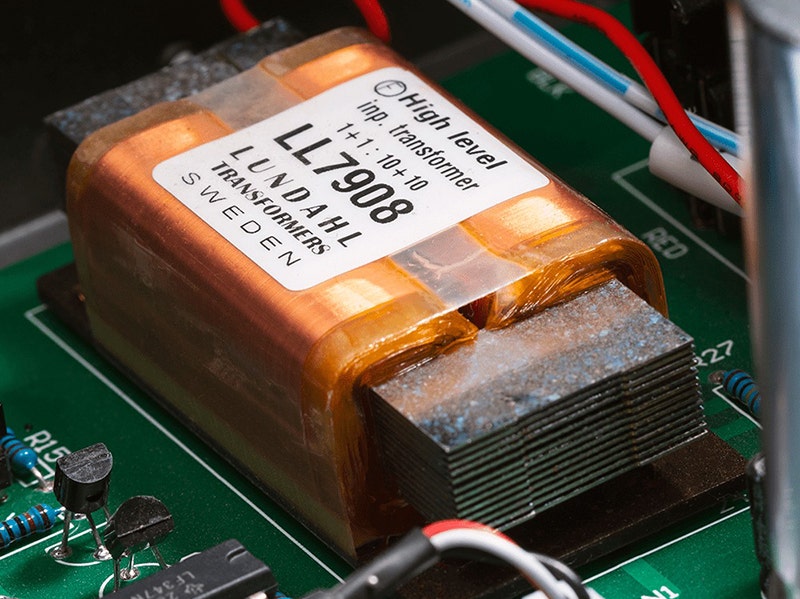

Premium Components:

The WA-1B is a 270v circuit with handwired through-hole circuitry and a 100% discrete analog signal path. The custom large-core transformers from Lundahl Sweden bring the full Scandinavian-style analog tone of the WA-1B circuit to life. Paired with select tubes from JJ and Tung-Sol, the high-precision optical element applies sweet analog warmth to audio signals with unrivaled accuracy.

Hand-Tested In Austin, TX:

Like all Warm Audio gear, the WA-1B is meticulously hand-tested and inspected by trained technicians with a passion for making music in Austin, TX USA.

Warm Audio WA-1B All-Tube Transformer-Balanced Optical Compressor Features

Accurate recreation of a world-class Scandinavian compressor combining smooth tube-optical warmth with precision controls

True-to-spec 270 volt, 100% discrete analog signal path - handwired with through-hole components
Transformer-balanced fully floating input and output - Custom-core large transformers from Scandinavian Manufacturer, Lundahl in Sweden
Two bus connectors to connect multiple sidechains
Meter (VU) input, output, or compression amount
Linear, low-noise power supply with toroidal power transformer

See all items from WARM AUDIO

Shop Similar Models

Warm Audio

About the Manufacturer

Phone: 512-348-6585

Warranty: 1 Year

Specifications

Warm Audio WA-1B All-Tube Transformer-Balanced Optical Compressor Specifications

Warm Audio WA-1B All-Tube Transformer-Balanced Optical Compressor Specifications
Product Specifications	Warm Audio WA-1B All-Tube Optical Compressor Specifications Tubes: 12ax7 Tung-Sol & JJ 12au7 Frequency response: @ -3 dB: 5 Hz to 25 kHz Self-Noise: < -75 dBU @ 30 dB gain CMRR: > 60 dB @ 10 kHz Ratio: from 2:1 to 10:1 Variable Threshold: Off to -40 dBU Continuously variable attack and release times: fast-slow Output gain: Off to +30 dBU Input impedance: 600O
