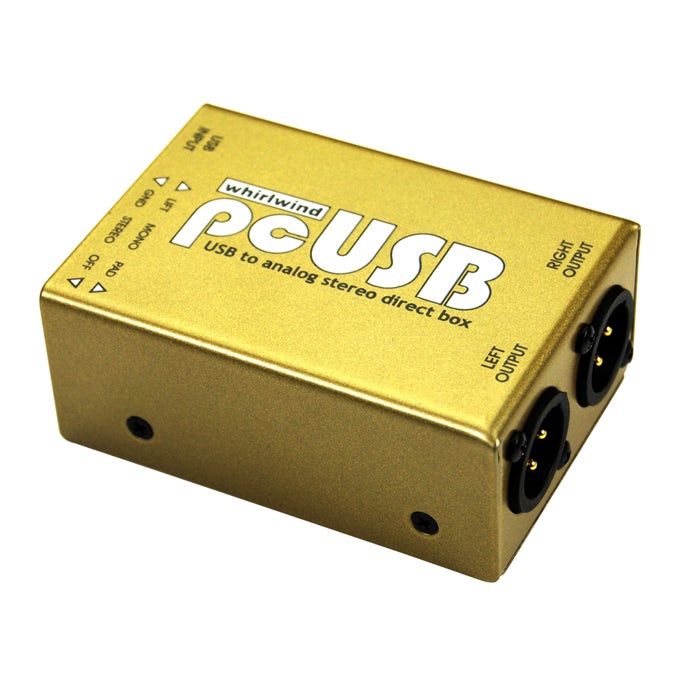

Whirlwind PCUSB Computer Audio USB Interface

OR

h m s

free-shipping-icon
In Stock!
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    2 Day Shipping Icon

    Fast & Free Shipping

    Did you know AMS is the only music distributor with four distribution centers? And that means we can offer super-fast shipping on all your music products. Whether you don’t want the spark of inspiration to fade or you really need that replacement speaker before the next show, we have you covered anywhere in the U.S. And even better, it’s FREE!

    Special Return Conditions

    If defective, this item must be exchanged directly through the manufacturer. It can only be returned to us if it is unopened.

    Rock Now Pay Later

    0% Interest Payment Plan

    Don’t sell your soul to a creditor to get the gear you need. At AMS, we want to lower the barriers to create. That’s why we offer in-house 0% financing, and you don’t even have to open a new line of credit! Spread out payments on your credit card to simplify financing and avoid hefty late fees or service charges. Cost shouldn’t interfere with your creativity.

    45 Day return

    Sometimes the gear on the computer screen seems like a better fit than when you actually get your hands on it. We understand, and that’s why AMS offers an industry-leading 45-day money-back guarantee. If you’re not happy with an item, you have a full month and a half to send it back! We don’t want to just sell you gear. We want to sell you the RIGHT gear — even if it takes a few tries.

    AMS Agent

    Have questions?
    Talk to a sales specialist!

    800-319-9043

    Converts the digital audio from USB outputs to high quality analog, stereo, balanced audio for easy connection to PA systems, mixing boards, etc.





    USB 2.0 compliant with no device driver required. Operation power is supplied from the USB port in the host device. Sample rates of 32 kHz, 44.1 kHz and 48 kHz are supported at 16 bits. A USB hookup cable is included.



    Digital signal is input via a standard USB Type B jack. Output is via left and right balanced XLRs. A digital 0 dBfs input signal level delivers -3.4 dBV balanced at the analog outputs.



    Features a STEREO / MONO switch to combine stereo sources into a mono signal and a 20 dB PAD switch to reduce the analog output level into sensitive microphone inputs. A GROUND LIFT switch disconnects the outputs from the circuit ground to help eliminate hum and buzz.



    INPUT (USB Type B Jack)
    Connect to the USB port of any computer, or digital playback device. Operating power is supplied from the USB port in the host device. 16 bit sample rates of 32 kHz, 44.1 kHz and 48 kHz are supported.



    GND/LIFT (Switch)
    This switch is usually left in the GND position (digital circuit ground is connected to the analog outputs). If hum occurs in either channel when using the pcUSB, setting the switch to the LIFT position my help to reduce it. (This disconnects the ground between the circuit and the xlRs pin 1.)





    STEREO / MONO (Switch)
    When placed the STEREO position, signal are routed to their respective output. In the MONO position, the left and right inputs are summed into a mono signal that is fed to both XLR outputs.



    PAD (Switch)
    With most signals, proper operation will occur when set to the OFF position. The PAD position adds 20 dB of attenuation to both the left and right outputs, to reduce the possibility of distortion.



    LOW-Z BALANCED OUTPUT (XLR jack x 2)
    Left and right male XLRs, which provide balanced low impedance signals suitable for connection to balanced, low-Z equipment (mixing console, powered speakers, etd.) Maximum output is -3, 4 dBV, balanced with a digital 0 dBfs input signal.

    Shop Similar Models

    Whirlwind PCUSB Computer Audio USB Interface Specifications

    Whirlwind PCUSB Computer Audio USB Interface Specifications
    Product Specifications
    • Max output: -3.4 dBV balanced with 0 dBfs input
    • Supported sample rates: 32 kHz, 44.1 kHz, 48 kHz
    • Input pad attenuation: -20 dB
